User Manual for Home Accents Holiday 22HD70001 7.5 FT Outdoor Winter Spruce Pre-Lit Tree

Quick guide from the manual

This document provides instructions for the assembly, operation, and maintenance of the 7.5 FT Outdoor Winter Spruce Pre-Lit Tree. Key safety warnings include: do not connect extra light sets or tree toppers to the existing system, do not place the tree near combustible sources like heaters or candles, and unplug the product when leaving the house or unattended.

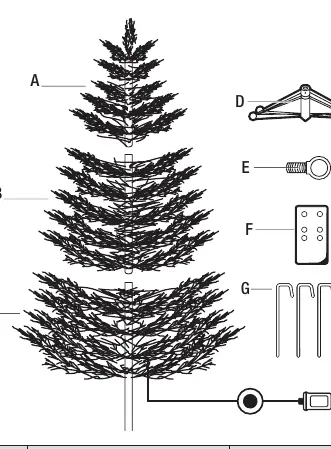

Package contents

• Tree Section A, B, and C (with plug)
• Tree Stand
• Eyebolt Screws (3)
• Remote Control
• Ground Anchors (4)

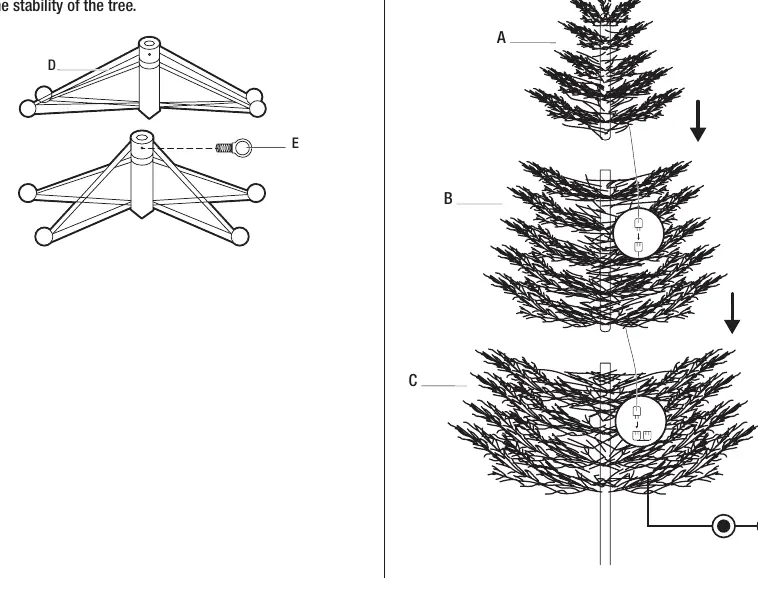

Installation

Preparing the tree and stand:

• Lay sections on the ground in alphabetical order.
• Remove plastic protective caps from the ends of each pole (save these for storage).
• Open the metal stand to form an X shape and align the holes.
• Thread the eyebolt screws through the stand until they are flush with the inside of the tube.
• Place the stand on a stable, even surface.

Assembling the tree:

• Place section C into the stand and secure with eyebolts. Ensure it is straight.
• Insert section B into section C and connect the male/female light connectors.
• Repeat the connection process for section A into section B.
• Shape the branches by bending tips upward or downward to fill gaps and create a fuller appearance.

Operation

To turn the lights on, plug the cord into an outlet. You can control the lighting using the remote control or the foot pedal switch.

• Remote Control: Pull the tab out of the battery compartment to activate. Use the ON button and cycle through lighting options. Requires a CR2025 battery.
• Foot Pedal Switch: Press the switch until it clicks to cycle through functions.

Available lighting options: Steady, Fading, Random twinkle, All twinkle, Off.

Care and storage

• Before disassembling, unplug the tree and remove all ornaments.
• Lift the tree top straight up to remove from the center section and fold branches towards the pole. Repeat for all sections.
• Use the protective caps to cover the poles to prevent damage.
• Store in a cool, dry location away from sunlight and out of reach of children and pets.

Troubleshooting

If the tree does not light when plugged in, check that all tree sections are securely connected to each other. Press the On/Off button on either the remote control or the control box on the plug.
