User Manual for Home Decorators Collection 1-Light Wall Lamp

Quick guide from the manual

This wall lamp requires installation by a licensed electrician. Ensure the power is turned off at the circuit breaker before starting. The fixture is designed for 120V systems and requires a dimmable bulb. Always verify that the mounting surface is clean, dry, and capable of supporting the lamp's weight.

Installation

1. Turn off power: Switch off the main power at the circuit breaker and the wall switch.
2. Remove mounting plate: Unscrew the knob nuts (D) from the back plate (A).
3. Install mounting plate: Secure the mounting plate (DD) to the outlet box using mounting screws (BB). Ensure the side marked "GND" faces out.
4. Check wires: Ensure at least 1/2 inch of wire is exposed.

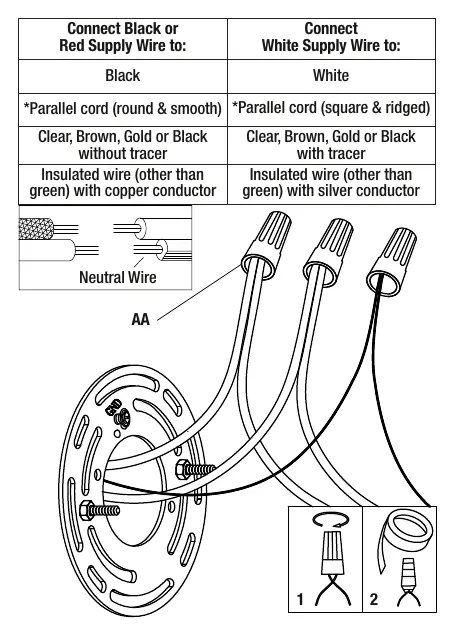

5. Connect wires: Twist supply wires and fixture wires together using plastic wire connectors (AA). Wrap connectors with electrical tape.
6. Attach ground wire: Secure the ground wire to the green ground screw (CC) on the mounting plate.
7. Attach back plate: Align the back plate (A) with the mounting screws (FF) and secure with knob nuts (D).
8. Install shade: Place the shade (F) on the socket (E) and secure with the socket ring (G).
9. Install bulb: Screw in a compatible dimmable bulb.

Operation

Use the knob switch (B) to control the light:

• OFF: Rotate counterclockwise all the way.
• ON: Rotate clockwise.
• Dimming: Rotate clockwise to increase brightness, counterclockwise to decrease.

Care and Cleaning

Wipe the fixture with a soft cloth. Do not use abrasive materials, scouring pads, or powders. Keep away from acidic and alkaline substances.
