Home Decorators Collection KB 06304-DEL LED Outdoor Wall Lantern
Quick guide for the Home Decorators Collection KB 06304-DEL LED Outdoor Wall Lantern. Includes installation steps, wiring instructions, photocell operation, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and operation instructions for the Home Decorators Collection LED Outdoor Wall Lantern. Before beginning, ensure you have all necessary tools and inspect the product for any shipping damage. Always turn off the power at the circuit breaker before starting any electrical work.
Installation
Follow these steps to install the fixture:
- Attaching the mounting unit: Secure the mounting unit (AA) to the junction box using the mounting screws (BB). Ensure the pre-installed support screws on the mounting bracket protrude away from the junction box.
- Making electrical connections: Connect the copper wire from the fixture to the mounting unit using the pre-installed ground screw. Connect the black wire to the power wire, the white wire to the neutral wire, and the copper wire to the ground wire using wire nuts (CC). Secure the wire nuts with electrical tape.
- Securing the fixture: Place the light fixture (A) over the pre-installed screws on the mounting bracket and secure it using the washers (EE) and cap nuts (DD). Ensure a tight waterproof seal between the canopy and the mounting surface.
Operation
The fixture is equipped with a photocell sensor for automatic operation.
- Turn the light switch on to activate the fixture.
- If it is daylight, the fixture will not illuminate. To test the fixture, cover the photocell with electrical tape.
- Ensure the photocell is positioned so that light from other fixtures does not shine directly onto the "eye," as this will interfere with normal operation.
Care and Cleaning
Clean the lamp with a soft, dry cloth. Do not use any cleaners with chemicals, solvents, or harsh abrasives.
Troubleshooting
If the bulb will not light, ensure the power supply is on, check the wiring, and ensure the circuit breaker is in the On position. If the fuse blows or the circuit breaker trips when the light is turned on, check for crossed wires or a grounding issue and contact a qualified electrician.
Manufacturer information
Home Decorators Collection
Practical help
Common problems
The bulb will not light
Ensure the power supply is on, check the wiring for faulty connections, and verify the circuit breaker is in the On position.
Fuse blows or circuit breaker trips when light is turned on
Check for crossed wires or power wire grounding out. Contact a qualified electrician if the issue persists.
Before use
- Turn off power at the circuit breaker or remove the fuse.
- Inspect wire insulation for any cuts, abrasions, or exposed copper.

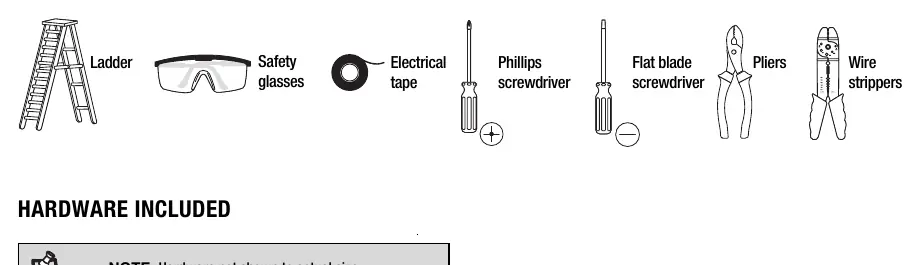

- Gather required tools: ladder, safety glasses, electrical tape, Phillips screwdriver, flat blade screwdriver, pliers, and wire strippers.
- Assemble the product on a soft, non-abrasive surface like carpet or cardboard.
Images and diagrams
- Wiring: Connect copper to ground, black to black (power), and white to white (neutral).
- Photocell: Located on top of the fixture; cover with tape to test during daylight.
