User Manual for Hotpoint 1AUX Gas Hob
Quick guide for the Hotpoint 1AUX gas hob, including installation instructions, daily use, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- To ignite a burner, turn the knob anti-clockwise to the maximum flame setting, press it against the control panel, and hold for 5-10 seconds after ignition to activate the safety device. p. 6
Key actions
- Installation must be performed by a qualified technician. p. 1, 2
- Check for gas leaks using soapy water after connection. p. 2, 5
First start
- Ensure local gas conditions (type and pressure) are compatible with the appliance. p. 2
Problems and fixes
Burner fails to ignite
Check gas supply, ensure burner openings are not clogged, and verify burner parts are correctly positioned.
p. 8Maintenance and reset
- Disconnect from power supply before maintenance. p. 3, 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Electric Supply | 220-240 V ~ 50-60 Hz | Electrical power requirements. | p. 4 |
Where to find it in the PDF
- Safety Instructions p. 1, 2, 3
- Burner and Nozzle Specifications p. 4
- Installation p. 5
- Product Description and Daily Use p. 6
- Maintenance and Troubleshooting p. 7, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential safety, installation, and usage instructions for the Hotpoint 1AUX gas hob. Before using the appliance, read all safety warnings carefully. The appliance must be installed by a qualified technician in compliance with local regulations. Ensure the kitchen is well-ventilated during use.
Product description
The hob features various burners of different diameters for optimal cooking performance. The control panel includes knobs for each burner, with symbols indicating the status (closed, maximum, minimum).
Daily use
To ignite a burner, turn the corresponding knob anti-clockwise to the maximum flame setting and press it against the control panel. Once ignited, keep the knob pressed for 5-10 seconds to activate the safety device. If the flame goes out accidentally, the safety device will shut off the gas supply. If the burner does not remain lit after 15 seconds, wait at least one minute before trying again.
Installation
The appliance must be installed by a qualified technician. Ensure the gas and electrical connections comply with local regulations. The hob can be embedded in a worktop 20-60 mm thick. If no oven is installed beneath the hob, a separator panel must be installed. Ensure proper ventilation and air circulation in the room. Use only flexible or rigid metal hoses for gas connection and check for leaks with soapy water after installation.
Maintenance and cleaning
Disconnect the appliance from the power supply before any maintenance. Clean enamelled and glass parts with warm water and a neutral detergent. Stainless steel surfaces should be cleaned with specific products. Grids, burner caps, and burners can be removed for cleaning. Cast-iron grates may be cleaned in the dishwasher. Do not use abrasive products, steam cleaners, or chlorine-based cleaners.
Troubleshooting
If the hob does not operate correctly, check the following before calling service: ensure gas/electrical supplies are open, check if the gas cylinder is empty, ensure burner openings are not clogged, and verify that all burner parts are positioned correctly. If the burner does not stay lit, ensure the knob is pressed long enough to activate the safety device.
Technical specifications
The appliance is designed for use with various gas types (Natural Gas G20, LPG G30/G31). Refer to the burner and nozzle specifications table for detailed injector markings, thermal flow rates, and gas pressure requirements.
Practical help
Common problems
Burner fails to ignite or flame is uneven
Check that gas/electrical supplies are on, the gas tap is open, burner openings are not clogged, the plug end is clean, and all burner parts are correctly positioned.
Burner does not stay lit
Ensure the knob is pressed long enough during ignition to activate the safety device, check that burner openings near the thermocouple are not clogged, and ensure the safety device end is clean.
Containers are not stable
Ensure the bottom of the container is perfectly flat, the container is centered on the burner, and the grids are positioned correctly.
Before use
- Ensure the gas type and pressure are compatible with the appliance settings.
- Verify that the room has adequate ventilation.
- Check that all burner parts are correctly assembled.
- Ensure the electrical connection is properly grounded.
- Check for gas leaks using soapy water after connection.
Specs in practice
- Rated thermal flow rate (kW)
- Indicates the heat output capacity of each burner.
- Gas pressure (mbar)
- The required pressure range for the gas supply to ensure safe and efficient operation.
Images and diagrams

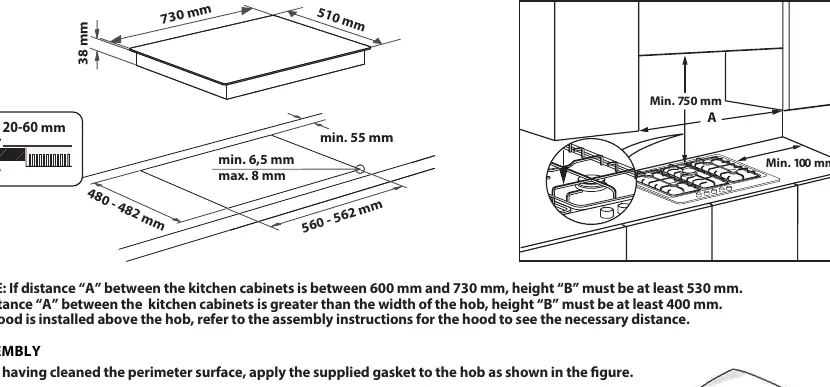

- Installation dimensions: Shows the required cutout size and minimum distances from cabinets.

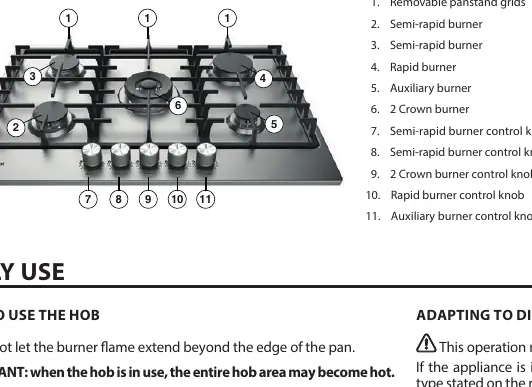

- Burner configuration: Details the layout of the 5 burners.
- Gas connection: Illustrates the use of the elbow and washer for gas inlet.
Model compatibility
- Compatible with Natural Gas (G20) and Liquefied Petroleum Gas (G30/G31).

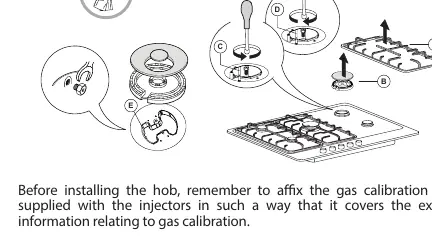

- Requires specific injectors for different gas types.
- Not intended for use with external timers or remote control systems.
