User Manual for Hotpoint 1R-2SR-1AUX-1TC Gas Hob
Comprehensive user guide for the Hotpoint 1R-2SR-1AUX-1TC gas hob. Includes installation instructions, safety guidelines, daily operation, cleaning tips, and troubleshooting.
Quick answers from the manual
Quick answer
- The Hotpoint 1R-2SR-1AUX-1TC is a gas hob requiring professional installation. To ignite, turn the knob to the maximum flame setting and press it for 5-10 seconds. p. 6
Key actions
- Igniting the burners p. 6
- Cleaning the hob p. 7
First start
- Ensure gas and electrical connections are performed by a qualified technician and check for leaks with soapy water. p. 5
Problems and fixes
Burner fails to ignite
Check gas supply, burner openings, and ignition plug cleanliness.
p. 7Maintenance and reset
- Clean burner parts and ignition plugs frequently. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Total rated consumption (G20) | 1057 l/h | Gas consumption for 5 burners. | p. 4 |
Where to find it in the PDF
- Safety Instructions p. 1, 2
- Installation p. 5
- Daily Use p. 6
- Troubleshooting p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the installation, safe operation, and maintenance of the Hotpoint 1R-2SR-1AUX-1TC gas hob. Always ensure the appliance is installed by a qualified technician and that all gas and electrical connections comply with local regulations.
Safety Instructions
- Ventilation: The kitchen must be well-ventilated. Keep natural ventilation holes open or use a mechanical extractor hood.
- Gas Safety: If the hob surface is cracked, do not use the appliance. In case of a gas leak or if the burner flame goes out, shut off the gas supply immediately.
- Children: Keep children under 8 years old away from the appliance unless supervised.
- Usage: Do not use the hob as a work surface. Do not use heat diffusers or multiple burners for one receptacle.
Installation
The appliance must be installed by a qualified technician. Ensure the worktop is 20-40 mm thick. If no oven is installed beneath the hob, a separator panel must be placed at least 20 mm from the bottom of the hob. Ensure proper gas and electrical connections are made according to local standards.
Daily Use
To ignite a burner, turn the corresponding knob anti-clockwise to the maximum flame setting and press it against the control panel. Hold the knob for 5-10 seconds after ignition to allow the safety device to activate. Use pots with flat bottoms that match the burner size to ensure efficiency.
Cleaning and Maintenance
Always disconnect the appliance from the power supply before cleaning. Use warm water and a neutral detergent. Avoid abrasive or chlorine-based cleaners. Cast-iron grates may be cleaned in the dishwasher after removing burnt-on food.
Troubleshooting
- Burner fails to ignite: Check that the gas supply is open, the burner openings are not clogged, and the plug end is clean.
- Burner does not stay lit: Ensure the knob is pressed long enough during ignition and the thermocouple area is clean.
- Unstable containers: Ensure the pot bottom is flat, centered on the burner, and grids are positioned correctly.
Technical Specifications
The appliance is designed for specific gas types (Natural Gas G20, LPG G30/G31). Refer to the burner and nozzle specifications table for injector markings and thermal flow rates.
Practical help
Common problems
Burner fails to ignite
Check that the gas supply is open, burner openings are not clogged, the ignition plug is clean, and all burner parts are positioned correctly.
Burner does not stay lit
Hold the knob pressed for 5-10 seconds during ignition to activate the safety device. Ensure the thermocouple area is clean.
Containers are unstable
Ensure the bottom of the container is perfectly flat, centered on the burner, and the grids are not positioned incorrectly.
Before use
- Ensure gas and electrical connections are made by a qualified technician.
- Verify that the gas type and pressure match the appliance specifications.
- Check that the kitchen is well-ventilated.
- Ensure all packaging materials are removed.
- Clean the hob surface before first use.
Specs in practice
- Rated thermal flow rate (kW)
- The heat output capacity of the burner.
- Injector marking
- A code identifying the nozzle size for specific gas types.
- Gas pressure (mbar)
- The required pressure range for the gas supply to operate safely.

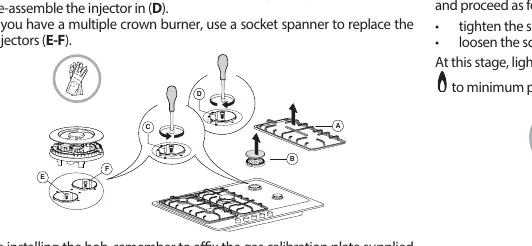

Images and diagrams

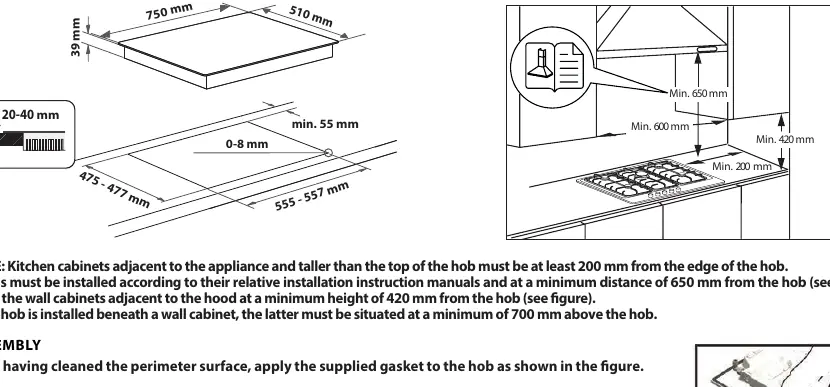

- Installation dimensions showing required clearances from cabinets and hoods.
- Gas connection elbow installation using the supplied washer.
- Burner and nozzle specifications table for different gas types.
Model compatibility
- Not intended for professional use.
- Not for outdoor use.
- Requires specific gas pressure regulators.
- Compatible with Natural Gas (G20) and LPG (G30/G31).
