User Manual for Husqvarna 215iHD45 Battery Hedge Trimmer
Quick guide for the Husqvarna 215iHD45 battery hedge trimmer. Includes assembly, operation, maintenance, and troubleshooting instructions.
Quick answers from the manual
Quick answer
- The Husqvarna 215iHD45 is a battery-powered hedge trimmer. To start, press the start/stop button until the green LED lights up, then press the front handle trigger and the power trigger. p. 11
Key actions
- Charging the battery p. 11
- Starting the product p. 11
- Stopping the product p. 12
First start
- Fully charge the battery before first use. p. 11
Show 4 more answers Show less
Problems and fixes
Overload
The cutting attachment cannot move freely. Release the cutting attachment.
p. 13
Temperature deviation
Let the product cool down.
p. 13Maintenance and reset
- Clean the product with a dry cloth after use. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Blade length | 450 mm | Length of the cutting blade | p. 15 |
| Weight | 3.2 kg | Weight without battery | p. 15 |
Where to find it in the PDF
- Introduction p. 4
- Assembly p. 10
- Operation p. 11
- Maintenance p. 12
- Troubleshooting p. 13
- Technical Data p. 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 215iHD45 is a battery-powered hedge trimmer designed for cutting branches and twigs. This guide provides essential information for safe and efficient operation.
Product Overview
The product consists of a rear handle, front handle with trigger, cutter blade, control panel, and battery compartment. Refer to the product overview diagram in the manual for specific component locations.
Safety
Always wear approved personal protective equipment, including eye protection, hearing protection, and sturdy, non-slip footwear. Keep children and bystanders at least 15 meters away during operation. Do not use the product in bad weather conditions, especially if there is a risk of lightning.
Assembly
To connect the battery, fully charge it and push it into the battery holder until it clicks into place. The battery charger (40-C80) can be mounted on a wall using two screws.
Operation
To start the product, press the start/stop button until the green LED lights up, then press the front handle trigger and the power trigger. To stop, release the triggers and press the start/stop button until the green LED goes off. The SavE function can be used to save energy without reducing cutting power.
Maintenance
Regular maintenance is essential for product longevity and safety. This includes cleaning the product, checking the blades for damage, and lubricating the gear housing if disassembled by an authorized dealer. Refer to the maintenance schedule for daily, weekly, and monthly tasks.
Troubleshooting
If the product does not start, check the keypad and battery status. If the error LED flashes, the cutting attachment may be overloaded or there may be a temperature deviation. Let the product cool down or release the cutting attachment.
Technical Data
The product features a BLDC motor, a 450 mm blade, and operates with BLi series or 40-B series batteries.
Manufacturer information
Husqvarna
Practical help
Common problems
Product does not start
Push the power trigger and press the start button at the same time.
Error LED flashes (Overload)
The cutting attachment cannot move freely. Release the cutting attachment.
Error LED flashes (Temperature deviation)
Let the product cool down.
Charging LED is red
Permanent battery charger error. Speak to your dealer.
Before use
- Examine the work area and remove objects that can be thrown out.
- Examine the cutting attachment for sharpness, cracks, and damages.
- Ensure all nuts and screws are tight.
- Ensure handle and safety devices are not damaged and are attached correctly.
- Ensure covers are not damaged and are attached correctly.
Show more Show less
Specs in practice
- Blade length
- 450 mm
- Blade speed (SavE mode)
- 2400 cuts/min
- Blade speed (Normal mode)
- 3000 cuts/min
- Weight (without battery)
- 3.2 kg
Images and diagrams

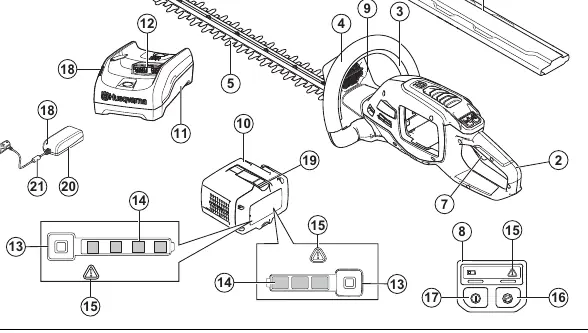

- Fig 1: Product overview showing handles, trigger, cutter, and battery components.
- Fig 27: Battery installation.
- Fig 28: Wall mounting for charger.
- Fig 30-31: Charging procedure.
- Fig 34: Operating position.
Model compatibility
- Use only BLi series and 40-B series batteries.
- Use only QC80 and 40-C80 chargers.
