User Manual for Husqvarna 120iTK4-H Battery Telescopic Pole Hedge Trimmer
Quick guide for the Husqvarna 120iTK4-H battery telescopic pole hedge trimmer. Includes assembly, operation, maintenance, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 120iTK4-H is a battery-powered telescopic pole hedge trimmer designed for cutting branches and twigs. This manual provides essential safety, assembly, operation, and maintenance instructions.
Product Description
The product consists of a blade, telescopic shaft, keypad, battery holder, and rear handle. It is powered by BLi or 40-B series batteries and uses the QC80 or 40-C80 charger.
Safety
WARNING: This product is dangerous if used incorrectly. Read and obey all safety instructions in the operator's manual to prevent injury or death to the operator or bystanders. Always use approved personal protective equipment, including a helmet, hearing protection, eye protection, and gloves.
Assembly
To assemble the shaft, align the electrical plugs, connect the ends of the shaft, and tighten the screw handle. Adjust the shaft length by loosening the screw handle on the battery housing side, adjusting to the desired length, and tightening the handle. Always use the harness for maximum control and to reduce arm and back fatigue.
Operation
Before starting, examine the work area for objects that can be thrown. Ensure the cutting attachment is sharp and undamaged. To start, press and hold the start/stop button until the green LED lights up, then pull the power trigger lockout and hold the power trigger. The product features a SavE function for longer battery life and an automatic shutdown function if the product is not used for 60 seconds.
Maintenance
Perform maintenance steps before each use, weekly, or monthly as specified in the maintenance schedule. This includes cleaning external parts, checking switches, ensuring all controls work, and inspecting the cutter blade and guard for cracks or damage. Keep the blade clean and lubricated.
Troubleshooting
If the green activate LED flashes, the battery voltage is low. If the warning indicator flashes, the product is overloaded, the temperature is outside the operating range, or the power trigger and start button are pressed simultaneously. If the product does not start, clean the battery connectors.
Manufacturer information
Husqvarna
Practical help
Common problems
Green activate LED flashing
Low battery voltage. Charge the battery.
Warning indicator flashes
Overload. The cutting attachment cannot move freely. Release the cutting attachment.
Product does not start
Dirt in the battery connectors. Clean the battery connectors with compressed air or a soft brush.
Before use
- Examine the work area and remove objects that can be thrown out.
- Examine the cutting attachment for sharpness, cracks, and damage.
- Ensure all nuts and screws are tight.
- Ensure the handle and safety devices are not damaged and are attached correctly.
- Ensure the battery is fully charged.
Specs in practice
- Weight without battery
- 4.5 kg
- Blade length
- 500 mm
- Blade speed (SavE mode)
- 2250 cuts/min
- Blade speed (normal mode)
- 2800 cuts/min
Images and diagrams

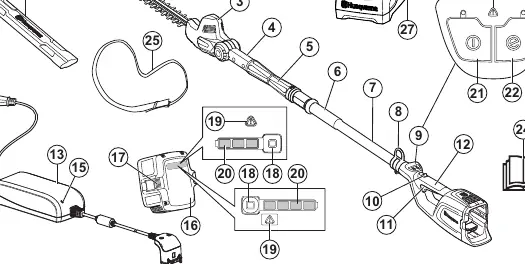

- Fig 1: Product overview showing all components.
- Fig 33-35: Assembly of the shaft and harness adjustment.
- Fig 36: Wall installation of the battery charger.
- Fig 44: Adjusting the angle of the cutting attachment.
Model compatibility
- Only use BLi series and 40-B series batteries.
- Recommended chargers are QC80 / 40-C80.
