Operator's Manual for Husqvarna TS 216Tm, TS 218T, TS 220TD Lawn Tractor
Comprehensive operator's manual for Husqvarna TS 216Tm, TS 218T, and TS 220TD lawn tractors. Includes assembly, operation, maintenance, and troubleshooting instructions.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- To start the engine, sit in the seat, apply the parking brake, set the throttle to the half position, and turn the ignition key to the start position. Release the key once the engine starts. p. 15
Key actions
- Engage the cutting deck p. 17
- Disengage the cutting deck p. 17
- Apply parking brake p. 17
First start
- Check engine oil level, fill fuel tank, ensure drive system is engaged, and set cutting deck to highest position before starting. p. 14, 15
Show 4 more answers Show less
Problems and fixes
Starter motor does not crank
Check parking brake, cutting deck engagement, main fuse, battery connections, and battery charge.
p. 31Maintenance and reset
- Perform maintenance according to the maintenance schedule (e.g., every 50 hours or annually). p. 19, 20
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Cutting width | 1080 mm | Width of the cutting area | p. 37 |
| Fuel tank volume | 13 liters | Capacity of the fuel tank | p. 36 |
Where to find it in the PDF
- Introduction p. 2
- Assembly p. 12
- Operation p. 14
- Maintenance p. 19
- Troubleshooting p. 31
- Technical data p. 36
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for operating and maintaining your Husqvarna lawn tractor. Before use, ensure you have received a signed pre-delivery inspection document from your dealer. Always check the engine oil level, fuel level, and tire pressure before operation. Ensure all safety devices are functional.
Product overview

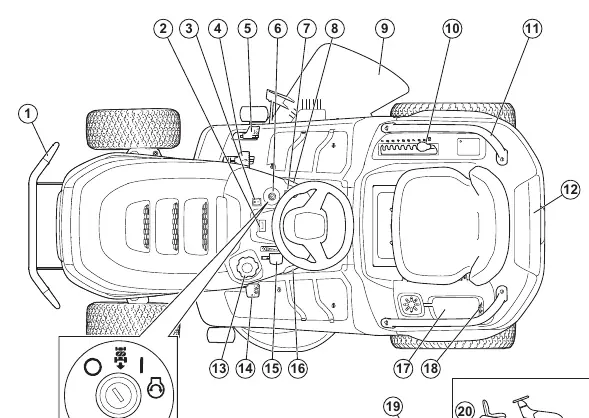

The lawn tractor features a cutting deck installed between the front and rear axles. Key controls include the ignition lock, PTO button for engaging the cutting deck, throttle/choke control, and forward/rearward pedals. The TS 220TD model also includes cruise control.
Safety
WARNING: This product can cause serious injury or death. Always operate with caution. Keep bystanders away, do not carry passengers, and do not operate on slopes greater than 10°. Always stop the engine and remove the ignition key before leaving the product unattended or performing maintenance.
Assembly
Assembly instructions cover the installation of the side discharge chute, battery connection, handles (for TS 220TD), and anti-scalp wheels. Refer to the assembly overview in the manual for the correct fasteners.
Operation
To start the engine, sit in the seat, apply the parking brake, set the throttle to the half position, and turn the ignition key to the start position. Use the forward and rearward pedals to control speed. The Reverse Operation System (ROS) must be engaged to operate the cutting deck while moving in reverse.
Maintenance
Regular maintenance is crucial for performance and safety. Follow the maintenance schedule for tasks such as cleaning the engine and transmission, checking belts and pulleys, lubricating the product, and checking tire pressure. Specific procedures are provided for cleaning the cutting deck, replacing the air filter, spark plug, oil, and fuel filter.
Troubleshooting
If the starter motor does not crank, check the parking brake, cutting deck engagement, main fuse, battery connections, and battery charge. If the engine does not run smoothly, check the spark plug, air filter, fuel filter, and carburetor settings.
Manufacturer information
Husqvarna
Practical help
Common problems
Starter motor does not crank the engine
Check if the parking brake is applied, the cutting deck is disengaged, the main fuse is intact, battery connections are secure, and the battery is charged.
Engine does not start
Check for fuel in the tank, inspect the spark plug for damage, and ensure the fuel filter is not clogged.
Engine does not run smoothly
Inspect the spark plug, check for a clogged air filter, or check for dirt in the carburetor or fuel line.
Product vibrates
Check if blades are loose, incorrectly installed, or unbalanced. Ensure the engine is secure.
Unsatisfactory cutting result
Check if blades are blunt or incorrectly installed, ensure the cutting deck is parallel, and check for grass blockage in the deck.
Before use
- Check engine oil level
- Check fuel level
- Check tire pressure
- Ensure parking brake is applied
- Check safety devices
- Ensure cutting deck is disengaged
Show more Show less
Specs in practice
- Nominal engine output
- 12.5 kW (TS 216Tm), 14.4 kW (TS 218T), 15.9 kW (TS 220TD)
- Cutting width
- 1080 mm
- Fuel tank volume
- 13 liters
Images and diagrams
- Product overview showing locations of controls and components
- Symbols on the product explaining warnings and operations
- Battery connection and replacement steps
- Cutting deck removal and adjustment procedures
- Engine oil level check and change procedures
Model compatibility
- Handles are an accessory for TS 216Tm and TS 218T models.
- Mulch kit, mulch blade, and side collection kit are available accessories.
Manual page author
Emily Carter
