Operator's Manual for Husqvarna 12527HV Snow Thrower
Quick guide for the Husqvarna 12527HV snow thrower. Includes assembly instructions, operation controls, maintenance schedule, troubleshooting tips, and safety guidelines.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe operation and maintenance of the Husqvarna 12527HV snow thrower. Before operating, ensure you are familiar with all controls and safety rules. Always wear appropriate winter clothing and eye protection. Never use your hands to clear a clogged discharge chute; use the provided clean-out tool.
Assembly and Setup
The snow thrower is partially assembled at the factory. Follow these steps to complete the setup:

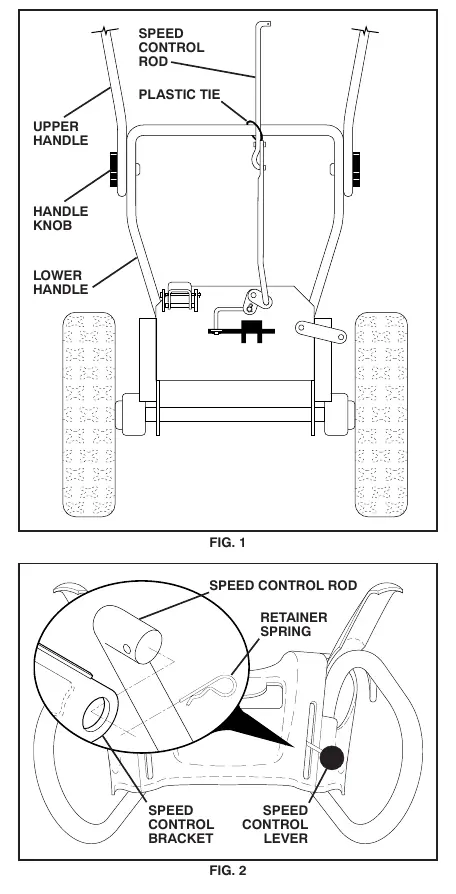

- Handle Assembly: Raise the upper handle to the operating position and tighten the handle knobs securely.
- Control Rods: Install the speed control rod, traction drive control rod, and auger control rod according to the diagrams provided in the manual. Secure them with the included retainer springs.
- Discharge Chute: Mount the discharge chute assembly onto the chute base, aligning the rotator head with the mounting bracket. Secure with the 3/8 washer and locknut.
- Deflector Control: Install the remote cable bracket and eyelet to the chute deflector and connect the spring.
- Tire Pressure: Check and reduce tire pressure to 14-17 PSI for optimal performance.
Operation
Familiarize yourself with the controls located on the handle panel:
- Starting: Ensure the fuel shut-off valve is OPEN. For cold starts, use the choke and primer as instructed. The unit features both an electric start (120V AC) and a recoil starter.
- Driving: Use the traction drive control lever to engage forward or reverse motion. Use the drive speed control lever to select the desired speed.
- Snow Throwing: Squeeze the auger control lever to engage the auger. Use the discharge chute control lever to change the direction of snow throw and the deflector remote control lever to adjust the distance.
- Stopping: Release the traction and auger levers, move the ON/OFF switch to OFF, and remove the safety ignition key.
Maintenance
Regular maintenance is crucial for the longevity of your snow thrower:
- Engine Oil: Check the oil level before each use. Change the oil after the first 25 hours of operation or at least once a year. Use API service classification SG-SL oil.
- Tires: Maintain 14-17 PSI.
- Belts: Check belts for wear after every 50 hours. Replace if they slip or show signs of deterioration.
- Spark Plug: Replace at the beginning of each season or every 100 hours. Gap: 0.030" (0.762 mm).
- Cleaning: Keep the housing free of dirt and debris. Clean after each use.
Troubleshooting
If you encounter issues, consult the troubleshooting section. Common solutions include checking the fuel shut-off valve, ensuring the safety key is inserted, verifying the spark plug wire connection, and clearing any blockages in the discharge chute or auger. For persistent vibration or traction issues, contact an authorized service center.
Manufacturer information
Husqvarna
Practical help
Common problems
Engine does not start
Check if fuel shut-off valve is OPEN, safety ignition key is inserted, fuel tank is full, choke is set to FULL, and spark plug wire is connected.
Loss of power
Check for loose spark plug wire, reduce speed/width of swath, clear ice/snow from fuel cap, or clean/replace muffler.
Excessive vibration
Tighten all fasteners. Inspect augers and impeller for damage or loose parts.
Loss of traction/drive speed
Check or reinstall drive belt. If the friction drive wheel is worn, contact an authorized service center.
Loss of snow discharge
Check or replace auger belt, clean the discharge chute, or remove debris/foreign objects from the auger/impeller.
Before use
- Check engine oil level.
- Check for loose fasteners.
- Check controls to ensure they are functioning properly.
- Ensure fuel shut-off valve is in the OPEN position.
- Check tire pressure (14-17 PSI).
- Ensure the area is clear of foreign objects.
Specs in practice
- Gasoline Capacity
- 0.5 Gallons (1.89 Liters), use Unleaded Regular only.
- Oil Capacity
- 32 Ounces (0.9 Liters).
- Spark Plug Gap
- 0.030 inch (0.762 mm).
Images and diagrams

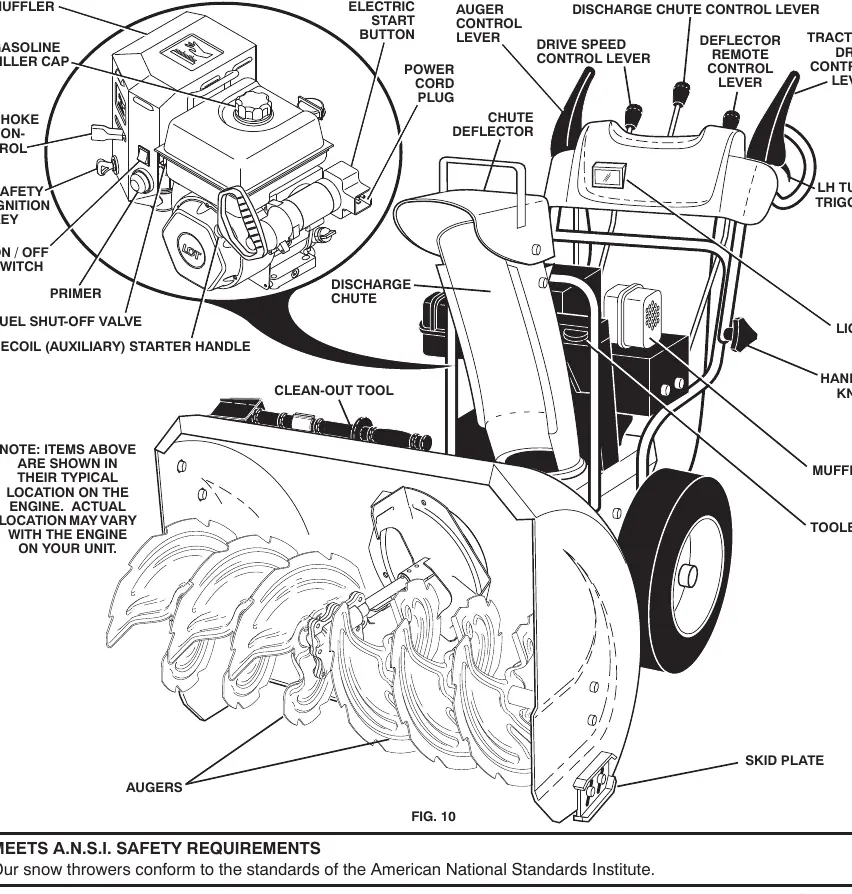

- Fig 10: Overview of controls including electric start button, auger/traction levers, and chute controls.
- Fig 18: Skid plate and scraper bar adjustment for ground clearance.
- Fig 20: Shear bolt replacement procedure for auger and impeller.

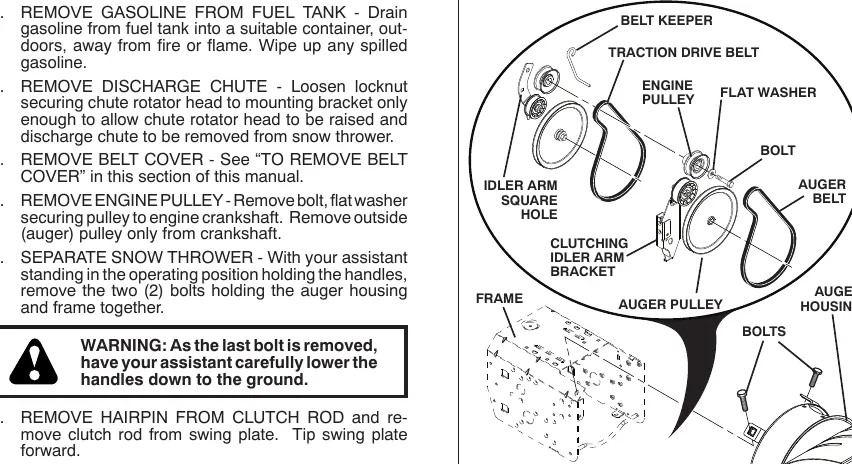

- Fig 22: Belt replacement and routing diagram.
Model compatibility
- Use only OEM parts for belts and shear bolts to prevent damage.
- Electric starter requires a 120V AC three-wire grounded system.
- Do not use gasoline containing methanol or more than 10% ethanol.
