Assembly Instructions for IKEA HAVSTEN 2-Seat Sofa
Complete assembly guide for the IKEA HAVSTEN 2-Seat Sofa. Includes step-by-step instructions for frame assembly, fabric attachment, and cushion placement.
Quick answers from the manual
Quick answer
- The IKEA HAVSTEN 2-Seat Sofa requires assembly by two people on a soft surface. Follow the pictorial steps to assemble the frame, attach the fabric covers, and secure the cushions. p. 2, 4, 10
Key actions
- Assemble with two people p. 2
- Attach fabric covers p. 6, 7
First start

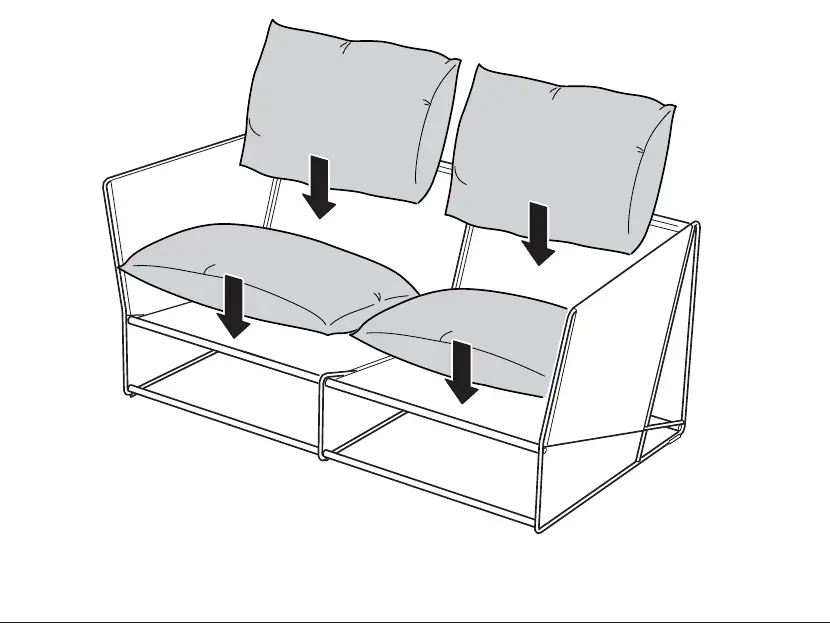

- Place cushions on the assembled frame p. 10
Maintenance and reset
- Hand wash fabric covers p. 11
Where to find it in the PDF
- Parts List p. 3
- Assembly Steps p. 4, 5, 6, 7
Table of contents
Manual images
Click an image to enlargeImportant information
For safe and correct assembly, please follow these guidelines:
- Two people required: Assembly should be performed by two people to ensure safety and ease of construction.
- Protect the product: Assemble the sofa on a soft surface, such as a rug or carpet, to prevent scratching or damaging the frame.
- Contact support: If you encounter missing parts or have difficulty during assembly, contact IKEA customer service.
Parts list
Before beginning, ensure you have all the necessary components:
- 8x Screws (190126)
- 4x Threaded rods (10002405)
- 1x Allen key (108490)
- 4x Straps
- 8x Long rods
- 2x Short rods
- 2x Fabric covers
- 2x Side frame sections
Assembly instructions
Follow these steps to assemble your HAVSTEN 2-Seat Sofa:

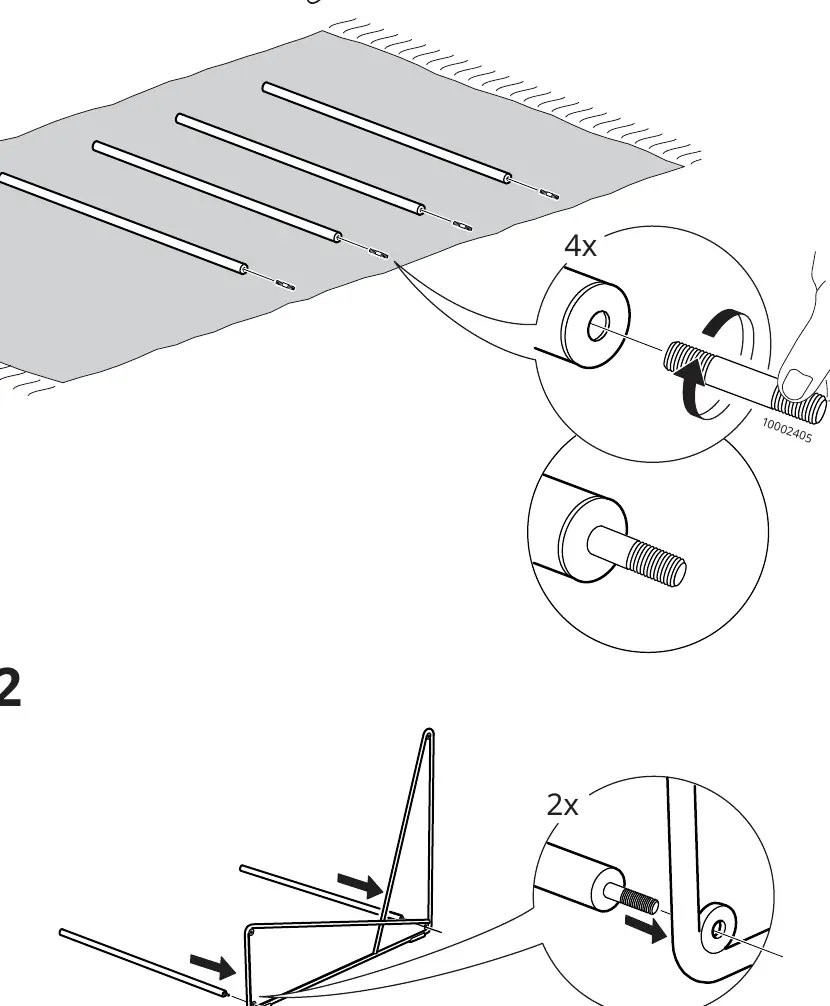

- Frame preparation: Insert the threaded rods into the rods as shown in the diagram.
- Frame assembly: Connect the rods to the side frame sections. Ensure all connections are tight.
- Securing the frame: Continue connecting the remaining rods to the frame structure.
- Attaching straps: Attach the straps to the frame. Ensure they are oriented correctly as shown in the manual.

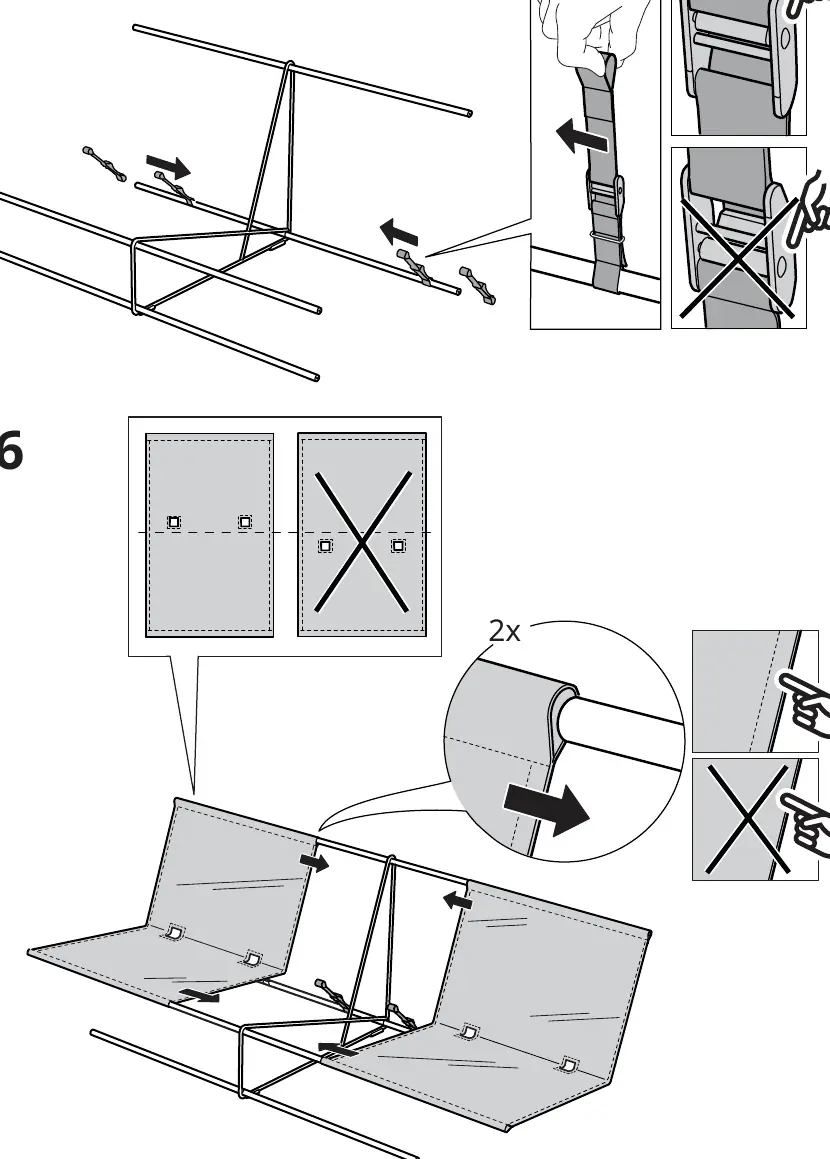

- Fabric attachment: Slide the fabric covers onto the frame. Ensure the fabric is aligned correctly and not twisted.
- Securing fabric: Use the provided rods to secure the fabric covers to the frame.
- Final assembly: Use the screws and Allen key to secure the frame sections together.
- Strap adjustment: Tighten the straps to ensure the fabric is taut and secure.
Maintenance
To keep your sofa in good condition:
- Cleaning: The fabric covers are hand-washable. Refer to the care symbol on page 11.
- Disassembly: If you need to disassemble the sofa, follow the assembly steps in reverse order.
Manufacturer information
IKEA
Practical help
Common problems
Difficulty aligning parts
Ensure you are working on a flat, soft surface and that two people are assisting with the assembly.
Missing components
Check the parts list on page 3. If items are missing, contact IKEA support.
Before use
- Verify all parts are present according to the parts list.
- Ensure you have a second person to assist with assembly.
- Prepare a soft surface to protect the frame during assembly.
- Have the provided Allen key ready.
Images and diagrams
- Arrows indicate the direction of insertion or tightening.
- Crossed-out symbols indicate incorrect assembly methods.
- Pictograms show the required number of people for specific steps.
