User Manual for Immax RING 08511L Outdoor LED Wall Light
Quick guide for the Immax RING 08511L outdoor LED wall light. Includes installation steps, technical specifications, maintenance tips, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential information for the installation and maintenance of the Immax RING 08511L outdoor LED wall light. Please note that installation requires at least two people and must be performed by a qualified electrician.
Technical Specifications
- Model: 08511L
- Power: 6W
- Luminous flux: 340lm
- Light color: 3000K
- Protection rating: IP65 (dust-tight and water-resistant)
- Input voltage: AC 230V 50/60Hz
- Lifespan: 50,000 hours
- Warranty: 2 years
Installation Instructions
Before starting the installation, ensure the power supply is switched off at the fuse box. The installation must be carried out by a qualified electrician in accordance with EN standards.
- Unpack the luminaire and place it on a soft mat to prevent damage.
- Ensure at least two people are available for the installation process.
- Follow the pictorial instructions provided in the manual for wiring and mounting.
- Connect the wires according to the diagram (N, Earth, L).
- Secure the luminaire to the wall.
Maintenance and Care
The surface of the luminaire does not require special maintenance. Clean the surface using a soft cloth or duster.
Disposal
At the end of its technical life, disconnect the luminaire from the power supply, disassemble it, and separate the individual parts. Dispose of the waste according to local regulations. The product is registered under WEEE-Reg.-No. DE 88927148.
Manufacturer information
Immax
Practical help
Common problems
Installation requires assistance
The manual explicitly states that a minimum of 2 people are required for safe installation.
Wiring issues
Wiring must be performed by a qualified electrician in accordance with EN standards.
Before use
- Switch off the fuses before starting installation
- Ensure you have a qualified electrician available
- Prepare a soft mat for the luminaire
- Verify you have at least one other person to assist with installation
Images and diagrams

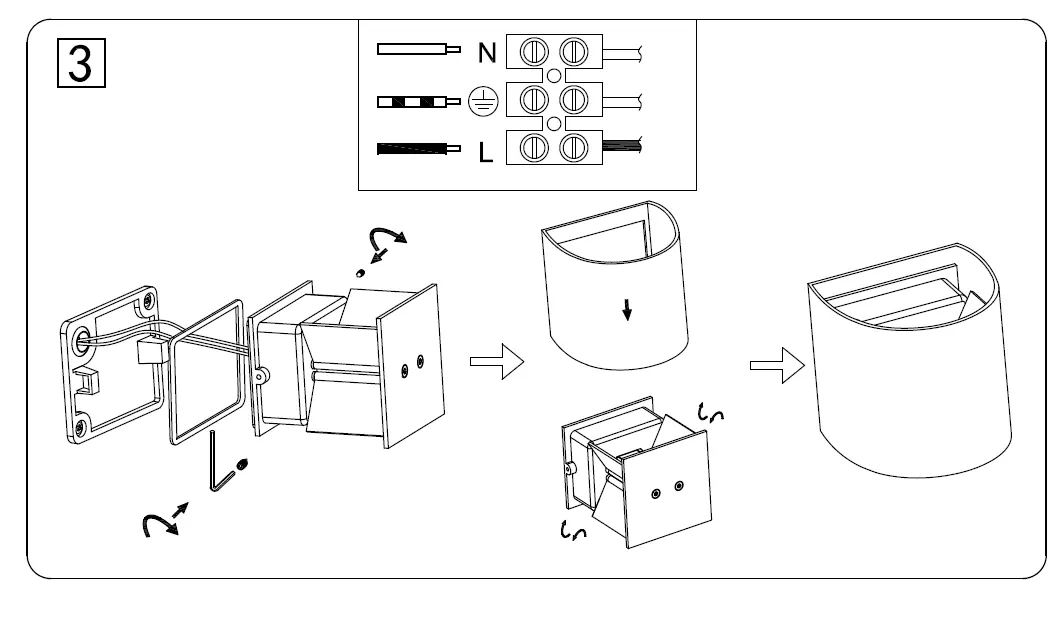

- The diagram illustrates the wiring connection for Neutral (N), Earth, and Live (L) wires, as well as the physical assembly steps for mounting the light to the wall.
