User Manual for Immax 92133 Solar Lamp
Quick guide for the Immax 92133 solar lamp. Learn how to install using 3M glue, charge via sunlight, and optimize placement for best performance.
Table of contents
Manual images

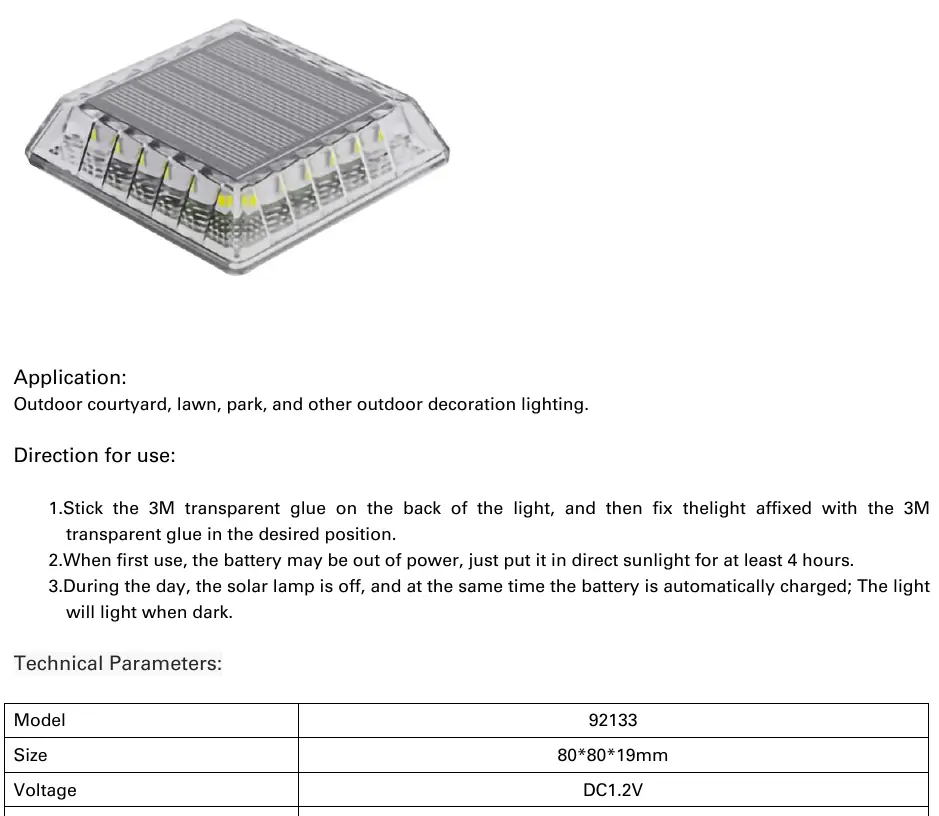

Click an image to enlargeQuick guide from the manual
The Immax 92133 is an outdoor solar lamp designed for courtyards, lawns, and parks. It features automatic charging during the day and automatic activation at night. For the first use, it is essential to charge the battery in direct sunlight for at least 4 hours.
Installation
The lamp is designed for simple mounting using adhesive:
- Clean the desired surface to ensure proper adhesion.
- Apply the 3M transparent glue to the back of the light.
- Fix the light firmly in the desired position.
- Ensure the installation location is sunny and not sheltered between 9:00 am and 3:00 pm to maximize solar charging.
Usage and charging
The device operates automatically based on ambient light levels:
- Daytime: The lamp remains off, and the battery charges automatically via the solar panel.
- Nighttime: The lamp turns on automatically when it gets dark.
- Charging: Requires direct sunlight. Charging time is approximately 4-5 hours for over 20 hours of working time.
Important safety notes
- Do not place the product in high-temperature environments (above 60°C) or near fire, as this may cause an explosion.
- Keep the lamp away from other light sources, such as street lights or hallway lights, as these may prevent the solar light from turning on automatically.
- Ensure the solar panel is not obstructed by shadows during peak sunlight hours.
Technical specifications
The device has the following parameters:
- Model: 92133
- Dimensions: 80 x 80 x 19 mm
- Voltage: DC 1.2V
- Power: 0.03 W
- LED Type: 2835 (24 pcs)
- Color Temperature: 3000K/4000K/6000K + Blue
- Luminous Flux: 10 lm ±5%
- Battery: AAA, 1.2V / 800mAh
- Charging Mode: Solar
- Body Material: PC
- Storage Environment: -25°C to +45°C
Manufacturer information
Immax
Practical help
Common problems
Light does not turn on at night
Ensure the lamp is not placed near other light sources like street lights, which can trigger the automatic off function.
Battery drains quickly
Ensure the solar panel is installed in a sunny location that is not sheltered between 9:00 am and 3:00 pm.
Light does not work upon first use
The battery may be depleted. Place the unit in direct sunlight for at least 4 hours before use.
Before use
- Charge the unit in direct sunlight for at least 4 hours
- Clean the mounting surface
- Verify the location is not shaded between 9:00 am and 3:00 pm
- Ensure the location is away from other artificial light sources
Specs in practice
- Charging Time
- 4-5 hours of direct sunlight required for a full charge.
- Working Time
- Provides over 20 hours of light on a full charge.
Images and diagrams
- The product dimensions are 80mm x 80mm x 19mm.
- The back of the unit contains the solar panel and warning labels regarding battery disposal and sunlight orientation.
Model compatibility
- Outdoor use only.
- Do not expose to temperatures above 60°C.
