Assembly Instructions for Invicta Interior 185CM Shelf
Quick assembly guide for the Invicta Interior 185CM shelf, including parts list, step-by-step installation sequence, and hardware requirements.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides the necessary steps to assemble the Invicta Interior 185CM shelf (Article no. 43616). Ensure you have all parts listed below before beginning assembly. It is recommended to assemble the unit on a soft surface, such as a carpet, to prevent damage to the furniture or floor.
Construction parts
- A1: Side frame (x1)
- A2: Shelves (x5)
- B1: M6x16mm screws (x4)
- B2: Washers (x4)
- C: M5 Allen key (x1)
- D: Screws (x30)
- E: Screwdriver (x1)
Assembly instructions
Follow these steps to assemble your shelf:
- Step 01: Prepare the side frame (A1).

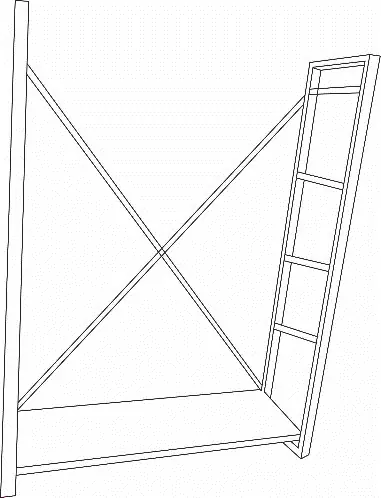

- Step 02: Attach the cross-bracing using components A1, B1, B2, and C.
- Step 03: Secure the structure.
- Step 04: Install the shelves (A2) using screws (D) and the screwdriver (E).
- Step 05: Continue attaching remaining shelves.
- Step 06: Finalize the assembly to ensure all connections are tight.
Contact information
If you have any questions regarding this article, please contact your dealer directly. You may also reach the manufacturer, Invicta Interior GmbH & Co KG, at Kirchenweg 8, 24568 Nützen, or via email at [email protected] or by phone at 04101 - 80 40 615.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Missing parts or hardware
Contact your dealer directly for assistance with missing components.
Before use
- Verify all parts (A1, A2) and hardware (B1, B2, C, D, E) are present.
- Prepare a soft surface (e.g., carpet) for assembly to avoid scratches.
- Ensure you have the provided Allen key (C) and a screwdriver (E).
Specs in practice
- Article number 43616
- Specific identifier for this shelf model.
Images and diagrams
- The manual uses a step-by-step visual sequence from STEP-01 to FINAL.
- Icons indicate the use of a soft surface for assembly.
