JBL 18SWV3.8 High Power Subwoofer User Guide
Quick guide for the JBL 18SWV3.8 high-power subwoofer, including technical specifications, Thiele-Small parameters, mounting instructions, and enclosure design recommendations.
Table of contents
Quick guide from the manual
The JBL 18SWV3.8 is a high-power subwoofer designed for frequency responses between 60 and 1600 Hz. This guide provides the necessary technical data for proper integration into vented box enclosures. Ensure that the amplifier used matches the RMS power requirements and that the enclosure is built according to the provided internal volume calculations to prevent mechanical failure.
Mounting information
Proper installation is critical for performance and longevity. Observe the following requirements:
- Polarity: Positive (+) voltage at the red terminal results in forward cone displacement.
- Clearance: Maintain a minimum distance of 75 mm between the back of the speaker and the enclosure wall.
- Ventilation: The unit features a triple ventilation system; ensure the enclosure design does not obstruct airflow.
Enclosure design
The manual recommends a vented box configuration. For optimal performance, use the following parameters:
- Internal Volume: 80 liters.
- Ducts: 3 units.
- Duct Diameter: 10 cm.
- Duct Length: 15 cm.
To calculate the internal volume for custom rectangular or trapezoidal enclosures, use the formula: Volume = (A x B x C) / 1000 (for rectangular) or Volume = (A x B x (C + D) / 2) / 1000 (for trapezoidal), where dimensions are in cm.
Technical specifications
Key parameters for system design include:
- Nominal Impedance: 4 Ohms.
- Nominal Power (RMS): 1900 W.
- Peak Power: 3800 W.
- Sensitivity: 94 dB SPL (1W@1m).
- Resonant Frequency (Fs): 47.40 Hz.
- Effective Cone Area (Sd): 0.1194 m².
- Coil Resistance (Re): 3.23 Ohms.
For further information or support, visit the official website at www.harmandobrasil.com.br.
Official resources from the manual
Manufacturer information
JBL
Practical help
Common problems
Mechanical overload or failure
Ensure the amplifier RMS power is correctly matched and the enclosure provides sufficient internal volume and ventilation.
Incorrect phase/cone movement
Verify that the positive (+) terminal is connected to the red terminal to ensure forward cone displacement.
Before use
- Verify the amplifier power matches the 1900W RMS rating.
- Ensure the enclosure internal volume is set to 80 liters for vented designs.
- Check that the minimum 75 mm clearance behind the speaker is maintained.
- Confirm the enclosure dimensions are calculated using internal measurements.
- Ensure the speaker has undergone a 2-hour break-in period at half AES power before critical use.
Specs in practice
- Xmax (11.00 mm)
- Maximum linear excursion of the cone with 10% distortion.
- Re (3.23 Ohms)
- DC resistance of the voice coil; for DVC models, consider coils in series.
Images and diagrams

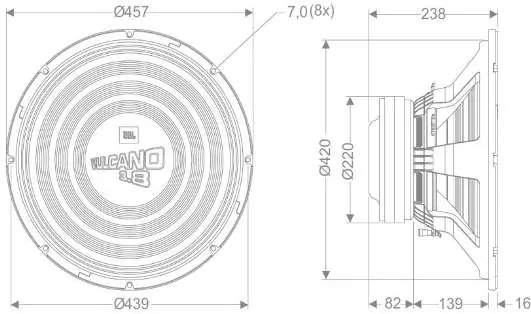

- The mounting diagram provides precise dimensions in mm for the speaker diameter (457mm), mounting hole pattern (7.0mm, 8x), and depth (139mm + 82mm).
- The frequency response graph illustrates the output curve from 30Hz to 1kHz, showing the peak performance range.
Model compatibility
- Designed specifically for vented box enclosures.
- Recommended minimum cutoff frequency is 40 Hz (12 dB/octave).
