User Guide for JBL BAR 1300XMK2 Soundbar
Quick start guide for the JBL BAR 1300XMK2 soundbar, covering setup, wall mounting, sound calibration, Bluetooth pairing, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential setup and configuration instructions for the JBL BAR 1300XMK2 soundbar system. It covers physical installation, cable connections, sound calibration, and wireless pairing.
What's in the box
- Main soundbar unit
- Detachable surround speakers
- Subwoofer
- Power cords (quantity and type vary by region)
- HDMI cable
- Remote control with batteries
- Wall mounting kit (brackets, screws, and wall anchors)
Connectors
The rear panel of the soundbar features the following ports:
- Power connector
- USB connector (5V 500mA)
- Ethernet port
- HDMI inputs (1, 2, 3)
- TV ARC / TV eARC HDMI output
- Optical input

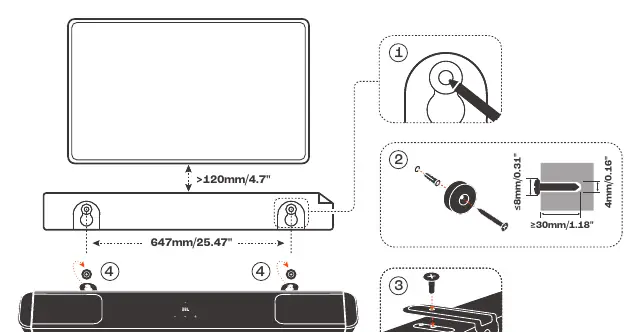

Wall mounting
To mount the soundbar on a wall:
- Ensure a minimum distance of 120mm (4.7") from the TV.
- Mark the wall using the provided template with a spacing of 647mm (25.47").
- Install the wall anchors and screws (minimum 30mm/1.18" depth).
- Attach the mounting brackets to the soundbar and secure it to the wall.
Sound calibration
Calibration optimizes the sound for your room:
- Place the detachable speakers in their positions.
- Press the sound calibration button on the remote.
- Follow the on-screen prompts (1-CALIBRATION, 2-CALIBRATION) and confirm by pressing the button again when prompted.
Bluetooth pairing
To pair the rear speakers:
- Ensure the speakers are powered on.
- Enable Bluetooth on your mobile device.
- Select "BAR 1300MK2 REAR SPK" from the device list to connect.
App setup
Download the JBL ONE app on your Android or iOS device. Connect your device to your Wi-Fi network and follow the in-app instructions to complete the speaker setup.
Manufacturer information
JBL
Practical help
Common problems
Speaker not connecting via Bluetooth
Ensure the speaker is in pairing mode and your mobile device's Bluetooth is enabled and searching for new devices.
USB playback not working
USB playback is only available on US and APAC versions. For other regions, the USB port is for service use only.
Before use
- Check that all components are included in the box.
- Ensure you have the correct power cord for your region.
- Verify your TV supports HDMI ARC or eARC for optimal connection.
- Download the JBL ONE app for full configuration.
- Ensure the wall mounting surface can support the weight of the soundbar.
Specs in practice
- Sound system
- 11.1.4 channel configuration for immersive audio.
- Operating temperature
- The device should be used within 0°C - 45°C.
- Detachable speaker battery
- Provides up to 10 hours of playtime, depending on content and volume.
Images and diagrams
- The manual provides clear diagrams for wall mounting, showing the required spacing (647mm) and clearance from the TV (120mm).
- Connection diagrams distinguish between eARC and ARC TV setups.
- Remote control diagram labels all 12 buttons for easy navigation.
Model compatibility
- Supports HDR10+ and Dolby Vision.
- Compatible with Google Home, Google Cast, and Apple AirPlay.
- USB playback is region-dependent (US/APAC only).
