User Manual for Kidzone Lamborghini Aventador SV Ride-On
Comprehensive user guide for the Kidzone Lamborghini Aventador SV Ride-On (12V). Includes assembly instructions, safety guidelines, charging procedures, remote control setup, and troubleshooting tips.
Table of contents
Manual images
Click an image to enlargeImportant Safety and Usage Information
Before allowing your child to use the ride-on toy, please read all instructions carefully. This vehicle is intended for children between 37 and 72 months of age with a maximum weight capacity of 66 lb (30 kg). Adult supervision is required at all times. Never use the vehicle on roadways, near motor vehicles, steep inclines, steps, or swimming pools. Always ensure the child wears a helmet and shoes while operating the vehicle.

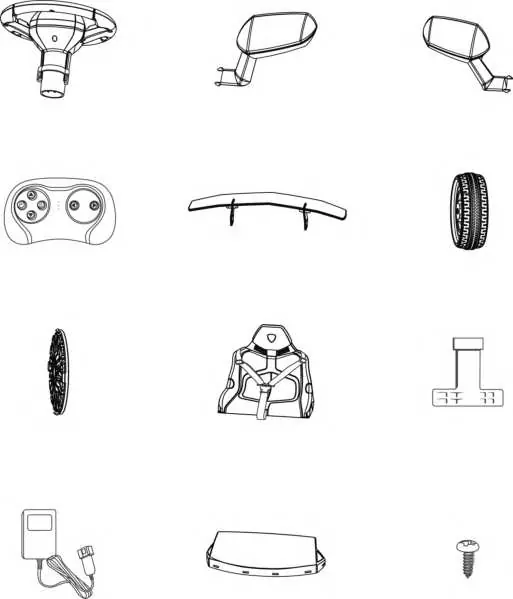

Assembly Instructions
The vehicle requires assembly by an adult. Estimated assembly time is 40 minutes. Tools required: screwdriver (not included).

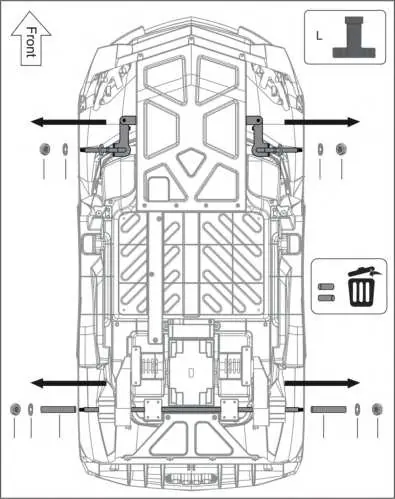

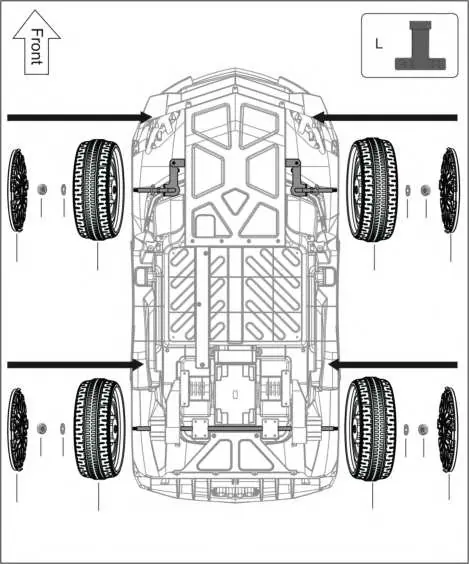

- Wheels: Remove nuts and washers from axles. Slide wheels onto axles, replace washers and nuts, and snap on wheel covers.

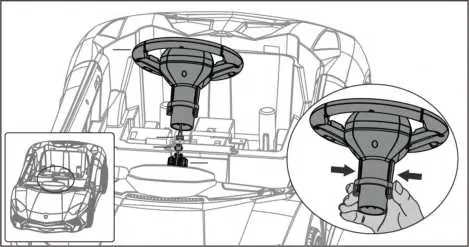

- Steering Wheel: Connect the terminal from the steering wheel to the terminal on the steering column, then insert the steering wheel into the column.
- Mirrors: Insert the left and right side mirrors into the sides of the vehicle body.
- Windshield and Rear Wing: Attach the windshield to the body and insert the rear wing into the designated slots.

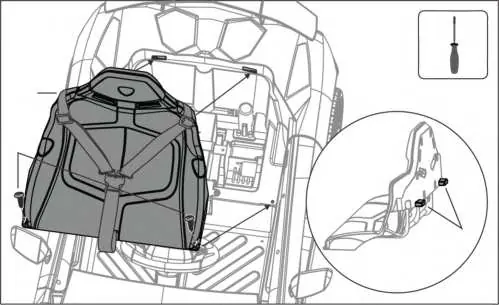

- Seat: Align the hooks on the back of the seat with the grooves on the car body and secure with the provided M4x12 screws.
Operating the Vehicle
The vehicle can be controlled via the foot pedal or the included remote control. The remote control input always overrides manual operation.
- Control Panel: Use the control panel to power the vehicle on/off, adjust volume, switch modes (USB, AUX, Bluetooth), and control lights.
- Foot Pedal: Press the pedal to move the vehicle forward; release to stop.
- Remote Control: Requires 2x AAA (LR03) batteries. To pair, turn off the vehicle, insert batteries into the remote, then turn on the vehicle. The LED indicator will remain on when pairing is successful.

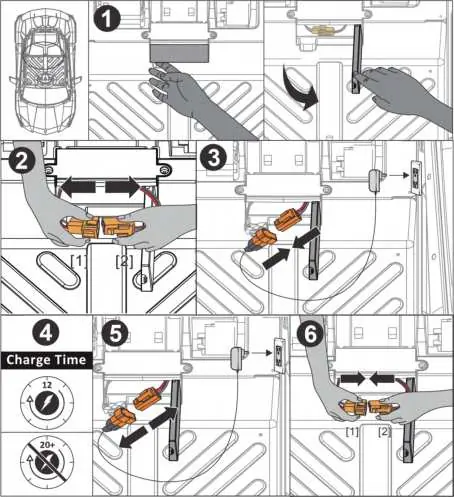

Charging the Battery
The battery must be charged by an adult. The vehicle must be turned OFF during charging.
- Initial Charge: Charge for 8-12 hours before the first use.
- Standard Charge: Charge for 8-12 hours. Do not exceed 20 hours to prevent damage.
- Maintenance: Recharge the battery if the vehicle operates slowly. Charge at least once a month even if the vehicle is not in use to maximize battery life.
Care and Maintenance
- Regularly check for missing or loose parts and re-tighten if necessary.
- Clean the vehicle with a cloth; use non-wax furniture polish for plastic parts.
- Do not wash with a hose or immerse in water.
- Disconnect the battery if the product will not be used for a long period.
- Occasionally lubricate moving parts with lightweight oil.
Troubleshooting
If the vehicle does not move, check the battery connection, ensure the battery is fully charged, or wait 5-20 seconds for the fuse to reset. If the vehicle runs slowly, verify the user weight is under 66 lb and ensure the battery is charged. For persistent issues like damaged motors or non-charging batteries, contact customer service.
Manufacturer information
Kidzone Toys
Practical help
Common problems
Vehicle does not move
Check battery connections, ensure the battery is fully charged, or wait 5-20 seconds for the fuse to reset.
Vehicle runs very slow
Ensure the user weight is under 66 lb (30 kg), charge the battery, or check if the battery is old and needs replacement.
Battery does not charge
Check if the battery and charger are properly connected and ensure the charger is plugged into a working power source.
Vehicle needs a push to go forward
Check for poor wire connections or a 'dead spot' on the motor; contact customer service if the issue persists.
Before use
- Charge the battery for 8-12 hours before the first use.
- Ensure all parts are assembled by an adult.
- Verify the battery is connected.
- Confirm the child is between 37-72 months old.
- Ensure the user weight is under 66 lb (30 kg).
- Check that the seat belt is securely fastened.
Specs in practice
- Operation Time
- 1~2 hours per full charge
- Battery Charge Time
- 8~12 hours (Max 20 hours)
Images and diagrams
- Assembly diagrams illustrate the installation of wheels, steering wheel, mirrors, and seat.
- Charging diagram shows the correct connection of battery terminals.
- Control panel diagram identifies buttons for music, lights, and speed selection.
Model compatibility
- Only use the charging device, transformer, and battery provided or recommended by the manufacturer.
- Remote control requires 2x AAA (LR03) batteries.
- The player supports MP3 format files via USB.
