User Manual for IGM LAGUNA PFlux 1 Cyclone Dust Collector
Comprehensive user guide for the IGM LAGUNA PFlux 1 Cyclone Dust Collector. Includes detailed assembly instructions, remote control pairing, maintenance procedures for the HEPA filter, troubleshooting, and technical specifications.
Quick answers from the manual
Quick answer
- The IGM LAGUNA PFlux 1 is a 230V cyclone dust collector. It features a 95L drum, HEPA filtration, and remote control operation. Assembly takes 4-5 hours and requires two people. p. 1, 4, 8
Key actions
- Pairing the remote control p. 7
- Emptying the drum p. 18
First start
- Ensure power supply is connected and machine is on a stable surface. p. 4, 18
Show 4 more answers Show less
Problems and fixes
Machine does not start
Check power, breaker, remote batteries, and receiver.
p. 19Maintenance and reset
- Reset HEPA filter indicator p. 19
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor | 1100 W | Power rating | p. 4 |
| Drum Volume | 95 l | Waste capacity | p. 4 |
| Noise Level | 70 dB | Operating noise | p. 4 |
Where to find it in the PDF
- Assembly Instructions p. 8, 9, 10, 11

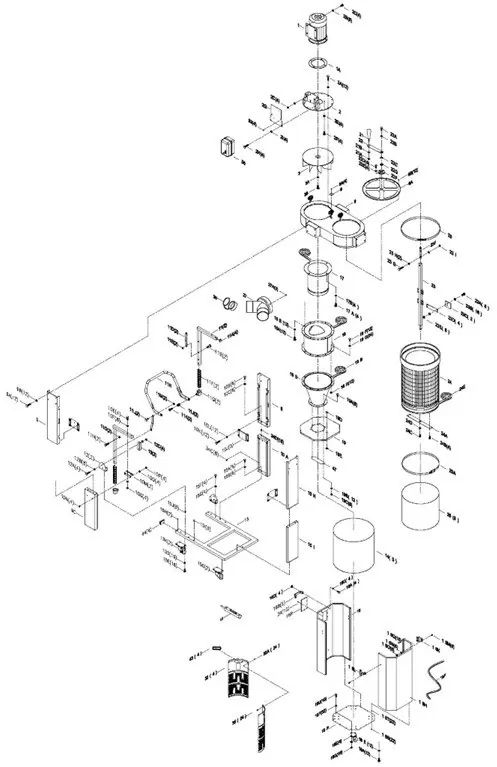

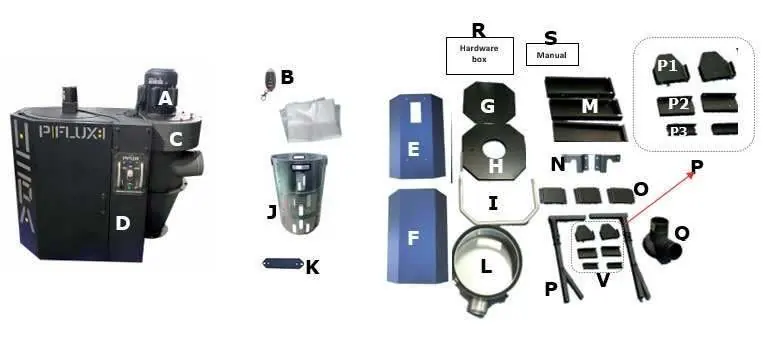

- Parts List p. 22, 23, 24, 25
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The IGM LAGUNA PFlux 1 is a high-performance cyclone dust collector designed for woodworking environments. This manual provides essential instructions for assembly, operation, and maintenance. Important: Assembly requires two people and takes approximately 4-5 hours. Always disconnect the machine from the power supply before performing any maintenance or inspection.
Machine Description
The unit features a cyclone design for efficient dust separation, a 95L drum, and a HEPA filter. The control panel includes an ON/OFF switch, manual cleaning activation, and indicators for full drum and filter status. A remote control is included for convenient operation.
Assembly
Assembly is a multi-step process involving the base, lifting mechanism, drum, and cyclone unit. Required tools: 10mm, 12mm, 14mm open-end wrenches, Phillips screwdriver, 4mm and 5mm Allen keys, and silicone sealant. Ensure all bolts are tightened according to the steps provided in the manual. The drum lid must be perfectly aligned parallel to the upright supports to ensure a proper seal.
Operation
Remote Control Pairing: Ensure the machine is ON. Press the control panel pair button until you hear two beeps. Simultaneously press the remote control pair button and the control panel pair button until you hear three beeps.
Starting the Machine: Remove the rubber cap from the inlet. Ensure at least one blast gate is open before turning the machine on. Use the ON button on the control panel or remote.
Maintenance and Inspection
Regular maintenance is crucial for performance and safety:
- Emptying the Drum: Periodically check the drum contents. Use the lifting handle to lower the drum for emptying.
- HEPA Filter Cleaning: The filter cleans automatically every 10 minutes and when the machine is turned off. For heavy use, use compressed air to blow the filter from the outside.
- Replacing the HEPA Filter: Replace the filter after approximately 2000 hours of operation.
Troubleshooting
If the machine does not start, check the power supply, circuit breaker, and remote control batteries. If there is excessive vibration, inspect for loose components, fan balance, or motor mount issues. Poor collection performance is often caused by a full drum, clogged filter, or leaks in the ducting system.
Technical Specifications
Motor: 1100 W | Power: 230 V / 50 Hz / 1 Phase | Airflow (realistic): 1224 m3/hour | Drum Volume: 95 L | Filter: HEPA (99.2% of particles over 0.4 microns) | Noise Level: 70 dB.
Manufacturer information
Laguna Ponds
Practical help
Common problems
Machine does not start or breaker trips
Check power supply, reset circuit breaker, replace remote batteries, or inspect receiver circuit board.
Excessive vibration or noise
Tighten all bolts/nuts, check motor mount, inspect fan for damage, or check motor bearings.
Poor dust collection performance
Empty drum and filter end cap, clean inlet adaptor, repair leaks, or close unused blast gates.
Before use
- Check technical condition of the machine
- Ensure machine is on a stable, well-lit surface
- Verify power supply is connected correctly
- Ensure blast gates are open before starting
- Check for loose or damaged parts
Show more Show less
Specs in practice
- Airflow (realistic)
- 1224 m3/hour (720 CFM) - actual performance in typical setup.
- Recommended Breaker
- 16 A, tripping characteristic C.
Images and diagrams

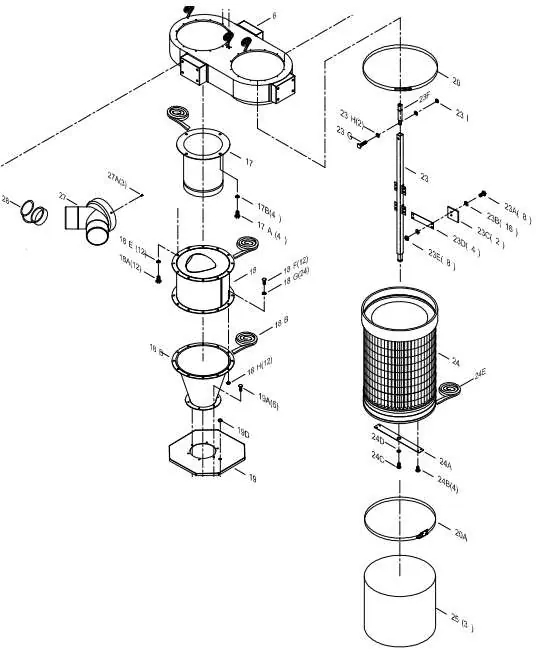

- Exploded view of the cyclone and filter assembly.

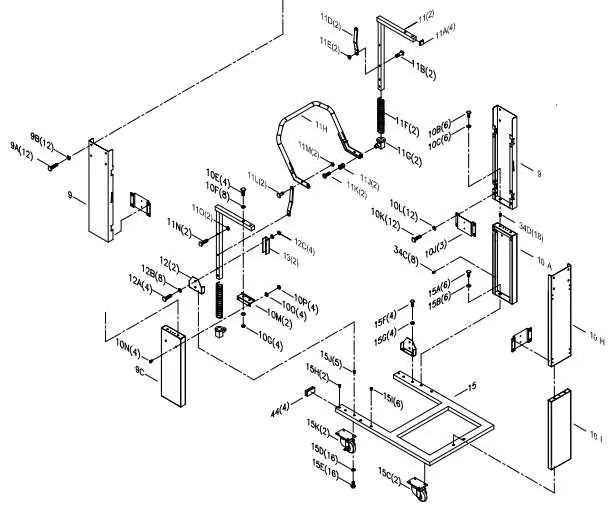

- Exploded view of the lifting mechanism.
- Wiring diagram for the control panel and motor.
Model compatibility
- Use only original spare parts.
- Do not collect materials other than wood chips and sawdust.
- Use lumber with less than 20% moisture content.
