User Manual for Scheppach HD15 Dust Extractor
Quick guide for the Scheppach HD15 dust extractor. Includes assembly instructions, technical specifications, maintenance tips, and safety guidelines.
Quick answers from the manual
Quick answer
- The Scheppach HD15 is a dust extractor for wood chips. It is not suitable for fine dust or industrial use. Always wear a dust mask and ear protection during operation. p. 10, 17, 23, 30
Key actions
- Shake the filter bag periodically to maintain suction. p. 13, 20, 26, 33
- Replace the shavings bag when it is 10 cm from the housing collar. p. 13, 20, 26, 33
First start
- Check that the mains voltage matches the motor type plate before connecting. p. 13, 20, 26, 33
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimensions | 1075 x 680 x 1800 mm | Overall machine size | p. 12, 19, 25, 32 |
| Air flow | 2000 m³/h | Extraction capacity | p. 12, 19, 25, 32 |
| Motor power | 1.1 kW (P1) | Nominal input power | p. 12, 19, 25, 32 |
| Weight | 44 kg | Approximate weight | p. 12, 19, 25, 32 |
Where to find it in the PDF
- Assembly Instructions p. 5, 6, 7
- Technical Data p. 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Scheppach HD15 is a dust extraction unit designed exclusively for extracting wood chips. It is not suitable for fine dust or industrial use. This guide provides essential information for assembly, operation, and maintenance.
Device Description
The unit consists of a motor housing, a chassis with wheels, a filter bag, and a shavings bag. The assembly involves connecting the cladding parts, mounting the chassis, and attaching the filter and shavings bags.
Intended Use
The machine is designed for extracting wood chips. It is not suitable for fine dust. Do not use the machine to extract foreign objects like screws, nails, or plastic pieces. The machine is not designed for commercial, trade, or industrial applications.
Safety Information
- Always wear personal protective equipment, including safety goggles and a dust mask.
- Wear ear protection due to noise levels.
- Do not use the machine in damp or wet conditions.
- Keep children away from the machine.
- Ensure the machine is disconnected from the power supply before any maintenance or cleaning.
- Do not use the machine to extract dangerous dust.
Assembly
- Assemble the cladding parts (A, B, C) using the provided screws and nuts.
- Mount the axle and rollers onto the base plate.
- Assemble the side parts (D, E) and attach them to the cladding.
- Place the assembled cladding onto the chassis base plate and fasten it.
- Mount the motor housing onto the cladding.
- Slide the clamping strip through the filter bag loops.
- Insert the retainer rod into the housing, hang the filter bag, and secure it with the clamping strip.
- Attach the shavings bag to the lower air outlet using the clamping strip.
- Connect the exhaust hose to the housing nozzle and secure it with a hose clamp.
Maintenance
For constant performance, shake the filter bag vigorously from time to time. The shavings bag must be replaced when the shavings reach approximately 10 cm from the housing collar. Damaged filters and bags must be replaced immediately to minimize dust escape.
Technical Data
The HD15 features a 1.1 kW motor, an air flow capacity of 2000 m³/h, and a 130-liter shavings bag capacity. The total height with the filter bag is 1800 mm.
Manufacturer information
Scheppach
Practical help
Common problems
Reduced suction power
Shake the filter bag vigorously or tap it with your hand to clear dust.
Dust escaping into the work environment
Check filter and bag seals; replace damaged filters or bags immediately.
Before use
- Check for transport damage
- Ensure mains voltage matches the motor type plate
- Check filter and bag integrity
- Ensure all parts are assembled correctly
- Verify the machine is on a stable surface
Show more Show less
Specs in practice
- Bag capacity
- 130 liters for shavings
Images and diagrams

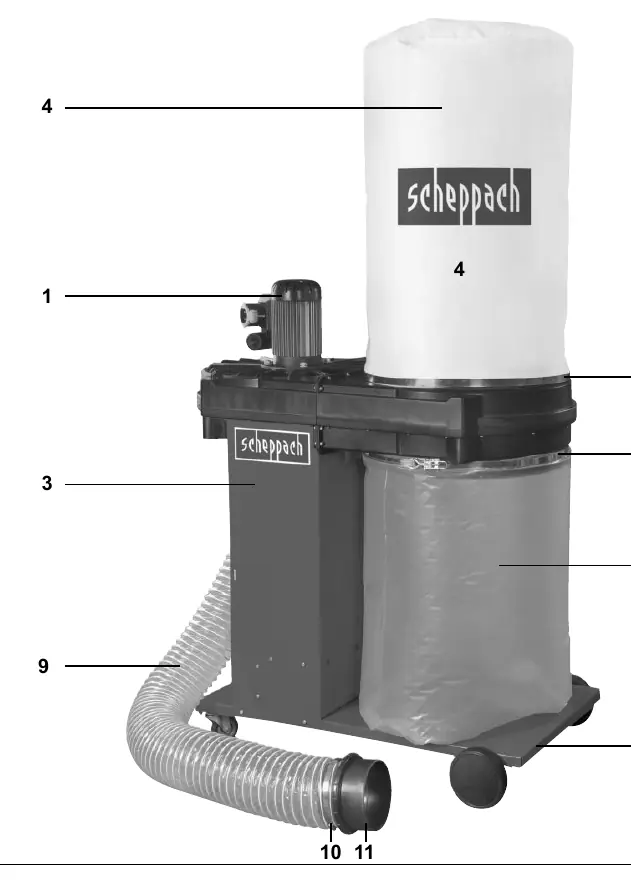

- Fig. 1: Overview of main components including motor, chassis, and bags.
- Fig. 2-13: Step-by-step assembly of the chassis, cladding, and motor housing.

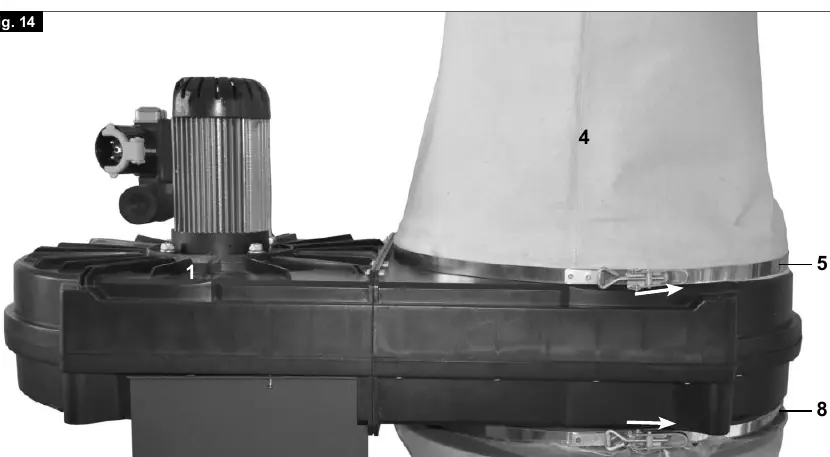

- Fig. 14-16: Attachment of the shavings bag and exhaust hose.
Model compatibility
- Designed for wood chips only.
- Not suitable for fine dust.
- Not for industrial or commercial use.
