User Manual for IGM LAGUNA PFlux 1 Cyclone Dust Collector
Quick guide for the IGM LAGUNA PFlux 1 cyclone dust collector. Includes assembly steps, operation, maintenance, and troubleshooting.
PDF source: polski · summary: English
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The IGM LAGUNA PFlux 1 is a high-performance cyclone dust collector designed for wood dust and chips. This guide covers essential setup, operation, and maintenance procedures. Always ensure the machine is disconnected from the power source before performing any maintenance or assembly tasks.
Description
The PFlux 1 features a 95L waste bin, HEPA filtration (99.2% efficiency for particles >0.4 microns), and a remote control system. It is designed for professional and hobbyist woodworking environments.

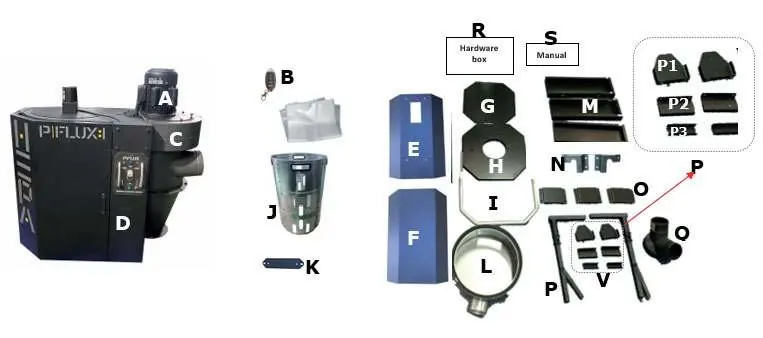

Assembly
The assembly process takes approximately 4-5 hours and requires two people. Key steps include:
- Base Assembly: Attach casters to the base.
- Cyclone Assembly: Mount the cyclone barrel to the base and connect the support struts.
- Filter Installation: Attach the HEPA filter and cover.
- Bin Assembly: Assemble the waste bin, attach handles, and install the waste bag.
- Final Connections: Connect the intake cylinder and ensure all seals are airtight using silicone where specified.
Operation

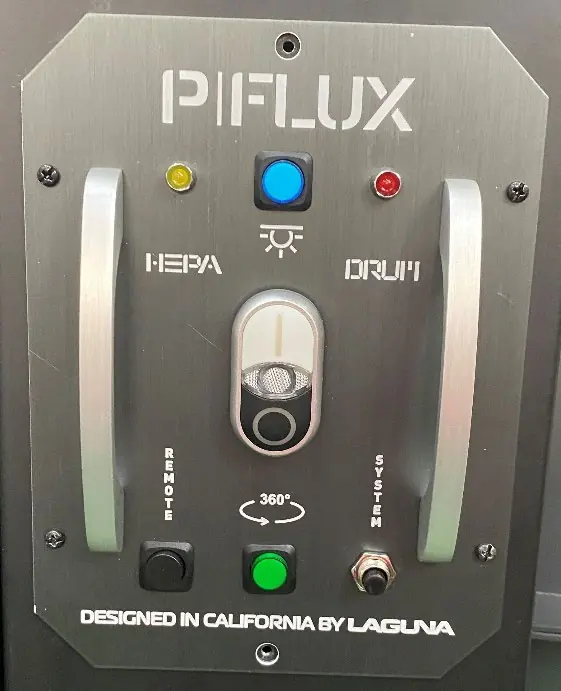

The machine is operated via the control panel or the included remote control. Ensure the intake is clear and the waste bin is properly seated before starting. The system includes an automatic filter cleaning cycle that runs every 10 minutes.
Maintenance
- Emptying the Bin: Regularly check the waste bin level. Use the quick-release lever to lower and remove the bin.
- Filter Cleaning: The HEPA filter cleans itself automatically. For manual cleaning, press and hold the CLEAN button for 3 seconds.
- Filter Replacement: Replace the HEPA filter after approximately 2000 hours of operation.
Troubleshooting
- Machine won't start: Check power supply, fuse/breaker, remote battery, and receiver.
- Excessive vibration/noise: Check for loose parts, motor mount issues, or fan damage.
- Poor suction: Check if the bin or filter is full, inspect for clogs in the hose, or check for air leaks.
Manufacturer information
IGM Tools & Machinery
Practical help
Common problems
Machine does not start or breaker trips
Check power supply, ensure the breaker is rated correctly, replace remote batteries, and check the receiver board.
Excessive vibration or noise
Tighten all bolts/nuts, check motor mounts, inspect the fan for damage, and check motor bearings.
Poor suction performance
Empty the waste bin, clean the filter, check for clogs in the hose, and ensure all pipe connections are airtight.
Before use
- Verify power supply voltage
- Ensure all safety guards are installed
- Check for loose parts or fasteners
- Ensure the waste bin is properly seated and sealed
- Verify the filter is clean and properly installed
Show more Show less
Specs in practice
- Suction Capacity
- 1786 m3/h (traditional measurement) or 1224 m3/h (actual measurement).
Images and diagrams
- Exploded view of the motor, fan, and switch assembly

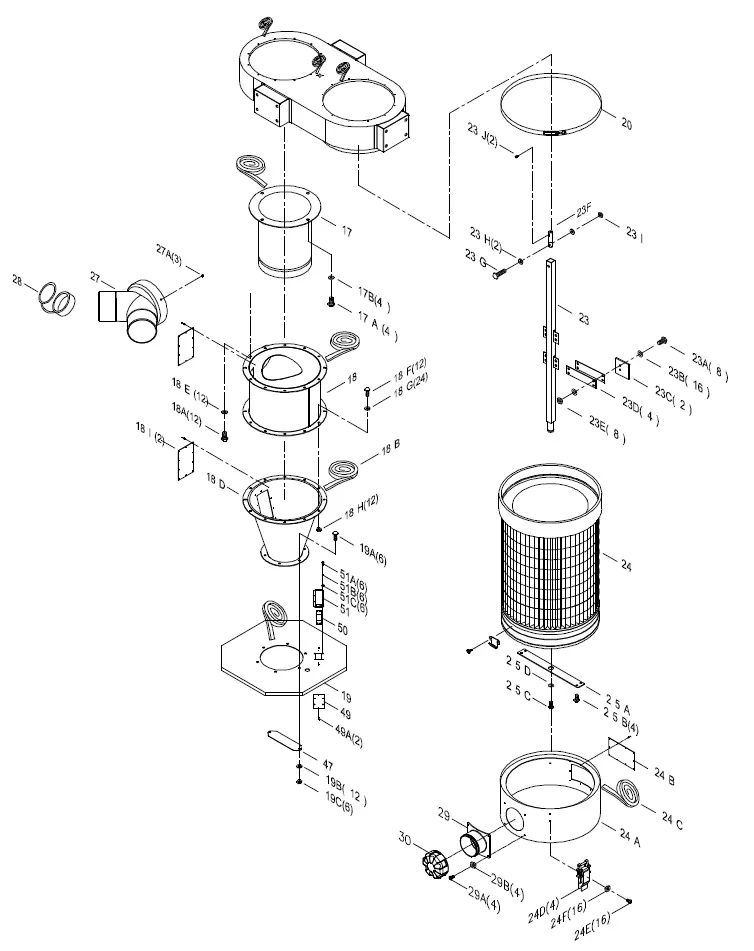

- Exploded view of the cyclone and filter assembly
- Exploded view of the lifting mechanism
- Exploded view of the waste bin assembly
- Wiring diagram for the control board
Model compatibility
- Designed exclusively for wood dust and chips.
- Requires 230V / 50Hz / 3-phase power supply.
- Use only IGM-approved accessories.
