Parts List and Assembly Guide for Mytee 1003DX Speedster Deluxe Heated Carpet Extractor
Comprehensive parts list and exploded view assembly diagrams for the Mytee 1003DX Speedster Deluxe heated carpet extractor. This guide provides detailed component identification, hose routing, and assembly breakdowns to assist with...
Table of contents
Quick Guide to Parts and Assembly
This document serves as the official parts list and assembly reference for the Mytee 1003DX Speedster Deluxe. It provides exploded view diagrams and corresponding part numbers to assist in identifying components for maintenance, repair, or replacement. Use the numbered callouts in the diagrams to locate the specific part description and quantity in the provided tables.
Parts Identification
The manual contains detailed tables listing every component of the machine, including:
- Hoses and Fittings: Various barb adapters, couplers, and reinforced solution hoses.
- Electrical Components: Switches, controllers, relays, and the 1600W heater.
- Structural Parts: Casters, wheels, axles, brackets, and the solution/vacuum tanks.
- Vacuum System: 3-stage vacuum motors, gaskets, and lid assemblies.

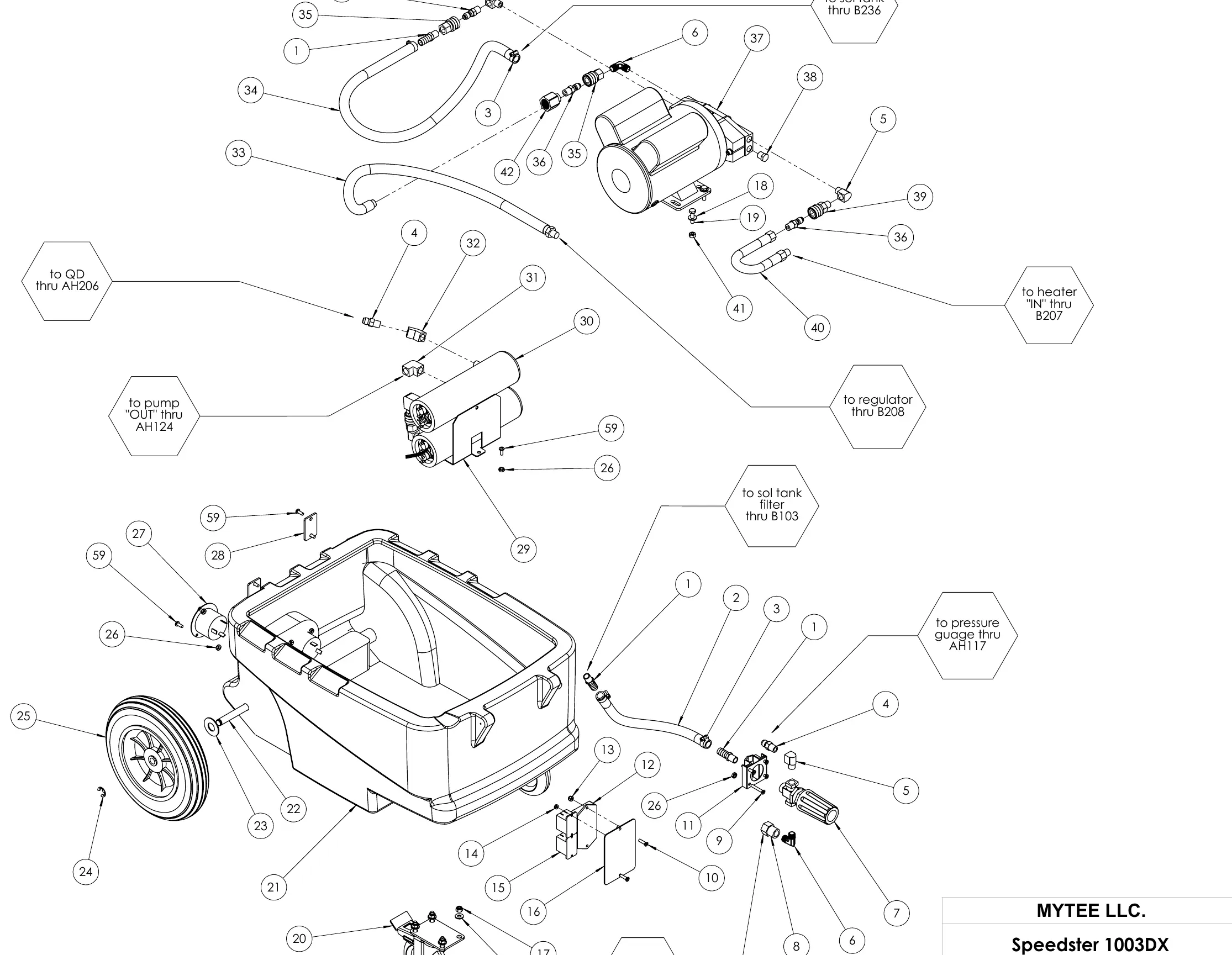

Assembly Diagrams
The exploded view diagrams illustrate the physical layout of the machine. Pay close attention to the lines with text labels, which indicate the routing and connection points for hoses (e.g., "to pump", "to heater", "to regulator"). These diagrams are essential for reassembling the unit after maintenance or when replacing worn components.
Heater Assembly (A908)
A dedicated section provides an exploded view of the A908 heater assembly. This includes the aluminum cast heater, thermostats (manual and auto), and heating rods. Ensure all electrical connections and fittings are secure when servicing this component.
Items Not Shown
Certain accessories and standard parts are listed separately in the "Items Not Shown" table. This includes the upholstery tool (8400P), hose assemblies, electrical harnesses, and hose wraps. Verify these items if you are performing a full system overhaul.
Practical help
Common problems
Leaking hose connections
Inspect hose clamps (Item 3) and quick disconnects (Item 36) for secure fit and proper seating.
Vacuum suction loss
Check the vac tank lid gasket (Item 96) for cracks and ensure the vac hose (Item 46) is not damaged or disconnected.
Heater failure
Inspect the heater (Item 30) and the thermostats (Page 5, Items 2 and 4) for loose wiring or signs of overheating.
Before use
- Verify all hose connections are tight and leak-free.
- Inspect vacuum and solution hoses for cracks, kinks, or wear.
- Ensure the lid gasket is clean and seated properly on the vacuum tank.
- Check that the drain valve (Item 80) is fully closed.
- Confirm the power cord and electrical switches are in good condition.
Images and diagrams
- Numbered callouts in diagrams correspond directly to the 'ITEM NO.' column in the parts tables.
- Text labels on lines (e.g., 'to pump', 'to heater') indicate the specific routing and destination of hoses.
- Exploded views show the order of assembly for stacked components like gaskets, washers, and nuts.
Model compatibility
- Parts listed are specific to the Mytee 1003DX Speedster Deluxe.
- Some electrical components (e.g., switches) may be shared with the 1005DX model.
