User Manual for Philips 243V5 Series Monitor
Comprehensive user guide for the Philips 243V5 series monitor. Includes setup instructions, OSD menu navigation, image optimization, technical specifications, and troubleshooting tips.
Quick answers from the manual
Quick answer
- This manual provides setup, operation, and troubleshooting instructions for the Philips 243V5 series monitors, including assembly, OSD menu navigation, and technical specifications. p. 1, 6, 8, 19
Key actions
- Install base stand p. 6
- Connect to PC p. 7
- Adjust OSD settings p. 8, 9
First start
- Connect power and signal cables, then turn on computer and monitor. p. 7
Show 4 more answers Show less
Problems and fixes
No picture (LED not lit)
Check power cord and power button.
p. 35
Image not centered
Use Auto function or adjust Phase/Clock in OSD.
p. 35Maintenance and reset
- Select 'Reset' in the OSD menu to recall original factory settings. p. 37
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Native Resolution | 1920 x 1080 @ 60Hz | Optimal display resolution | p. 19 |
| Mounting Interface | 100mm x 100mm | VESA mount size | p. 11 |
Where to find it in the PDF
- Installation p. 6, 7
- OSD Menu p. 8, 9
- Technical Specifications p. 19, 20
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for setting up and operating your Philips 243V5 series monitor. Key tasks include assembling the base stand, connecting the monitor to your PC, and adjusting display settings via the On-Screen Display (OSD) menu.
Installation
Base Stand Assembly:
- Place the monitor face down on a soft, smooth surface to avoid scratching the screen.
- Attach the base column to the monitor until it clicks into position.
- Hold the base stand with both hands and firmly insert it into the base column.
Connecting to PC:
- Connect the power cord to the back of the monitor.
- Turn off your computer and unplug its power cable.
- Connect the signal cable (VGA, DVI, or HDMI depending on your model) to the video connector on your computer.
- Plug the power cords of both the monitor and computer into a nearby outlet.
- Turn on your computer and monitor.
Operating the Monitor
The monitor features an On-Screen Display (OSD) menu for adjusting performance. Use the buttons on the front bezel to navigate:
- Power: Switch the monitor ON/OFF.
- OSD/OK: Access the OSD menu and confirm adjustments.
- Back/Return: Return to the previous OSD level.
- Brightness: Adjust the brightness level.
- OSD Menu/Volume: Adjust OSD menu or speaker volume.
- Display Format: Change display format.
- AUTO: Automatically adjust the monitor (VGA mode only).
Image Optimization
SmartContrast: Dynamically analyzes content and optimizes contrast ratio for better clarity and energy efficiency.
SmartControl Lite: Software that allows you to control monitor settings via an on-screen graphic interface. It guides you through fine-tuning resolution, color calibration, and clock/phase adjustments.
Technical Specifications
- Native Resolution: 1920 x 1080 @ 60Hz.
- Mounting Interface: 100mm x 100mm VESA mount.
- Power Supply: Built-in, 100-240VAC, 50-60Hz.
- Tilt: -5 / +20 degrees.
Troubleshooting
If you encounter issues, try these steps:
- No Picture (Power LED not lit): Ensure the power cord is plugged in and the power button is ON.
- No Picture (Power LED is White): Check if the computer is on and the signal cable is securely connected.
- Image not centered: Use the 'Auto' function in the OSD menu or adjust Phase/Clock settings.
- Image flickers: Check signal cable connections or adjust Phase/Clock settings.
Safety and Maintenance
- Keep the monitor away from direct sunlight, heat sources, and excessive moisture.
- Do not block ventilation holes.
- Clean the screen with a dry cloth when the power is off. Do not use organic solvents like alcohol or ammonia.
- Always use a screen saver or periodic refresh application to prevent 'burn-in' or 'ghost imaging' when displaying static content.
Manufacturer information
Philips
Practical help
Common problems
No Picture (Power LED not lit)
Ensure the power cord is plugged into the outlet and the back of the monitor. Check that the power button is in the ON position.
No Picture (Power LED is White)
Ensure the computer is turned on and the signal cable is properly connected. Check for bent pins on the cable.
Image is not centered
Use the 'Auto' function in the OSD Main Controls or adjust the Phase/Clock settings in the Setup menu (VGA mode only).
Image vibrates or flickers
Check that the signal cable is securely connected to the graphics board or PC. Use the 'Auto' function or adjust Phase/Clock in the OSD.
Before use
- Check package contents for all required cables (Power, VGA, DVI, HDMI, Audio).
- Place the monitor on a soft, smooth surface to prevent screen damage.
- Assemble the base stand and column.
- Ensure the power outlet is easily accessible.
- Verify the computer is turned off before connecting the signal cable.
Show more Show less
Specs in practice
- Native Resolution
- 1920 x 1080 @ 60Hz is the recommended resolution for optimal display quality.
- SmartContrast
- Technology that dynamically analyzes content to optimize contrast ratio.
Images and diagrams

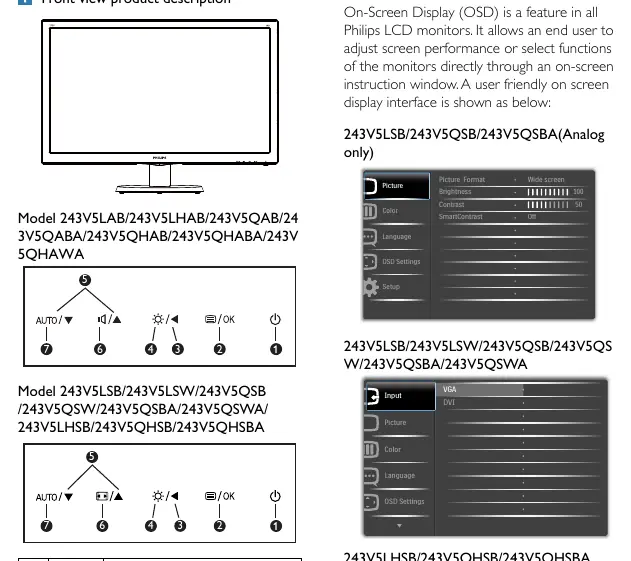

- Front view controls: Power, OSD/OK, Back, Brightness, OSD Menu/Volume, Display Format, Auto.

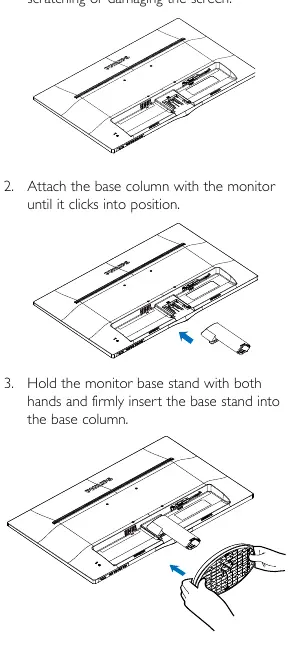

- Base stand installation: Face down, attach column, insert base stand.
- Rear ports: AC power, HDMI, DVI-D, VGA, Audio, Earphone jack, Kensington lock.
Model compatibility
- Compatible with Windows 8/7/Vista/XP, Mac OSX, and Linux.
- Requires a UL Listed Wall Mount Bracket with a minimum weight/load capacity of 3.5kg.
