Parts List and Diagram for Pretul 10" Table Saw (1900W)
Comprehensive parts list and exploded view diagrams for the Pretul 10" 1900W table saw. Use this guide to identify components, verify assembly, and locate replacement parts for maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as the official parts list and exploded view diagram for the Pretul 10" Table Saw (1900W), model SME-10BP. It is intended for identifying individual components, understanding the assembly structure, and ordering replacement parts. All listed parts can be purchased through authorized TRUPER service centers or by calling 800-018-7873.
Device components and assembly
The manual provides detailed exploded diagrams across five pages, covering the entire machine structure including the motor assembly, table surface, base, blade guards, and adjustment mechanisms. Each part is assigned a unique reference number, code, and description to facilitate accurate identification.
- Main Structure: Includes the table, base, motor mounts, and support legs.
- Adjustment Mechanisms: Details components for bevel adjustment, angle settings, and the parallel fence system.
- Safety and Protection: Lists blade guards, dust collection ports, and thermal overload protection components.
- Electrical System: Covers the switch assembly, power cable, and motor internal components like carbon brushes.
Maintenance and parts replacement
To maintain the saw, refer to the exploded diagrams to understand the relationship between parts. When replacing components, ensure you use the specific part codes listed in the tables. If you encounter issues with assembly or require specific hardware, use the provided reference numbers to communicate with authorized service personnel.
Manufacturer information
Pretul
Practical help
Common problems
Need replacement parts
Identify the part using the exploded diagram and reference number, then contact an authorized TRUPER service center or call 800-018-7873.
Before use
- Verify all fasteners are tightened according to the assembly diagram.
- Ensure the blade guard and dust collection components are correctly installed.
- Check that the thermal overload protector is functional.
- Confirm the bevel and angle adjustment wheels move freely.
Images and diagrams

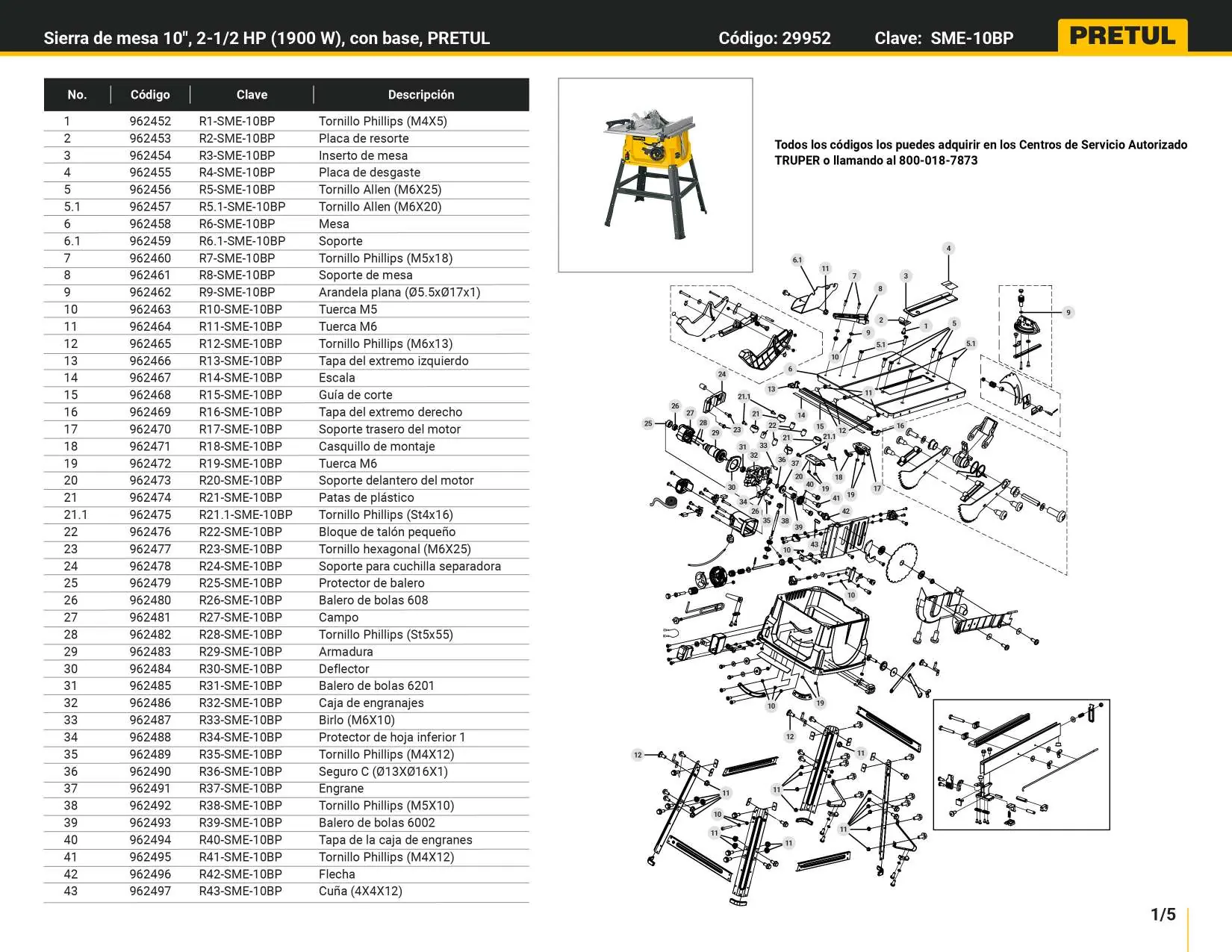

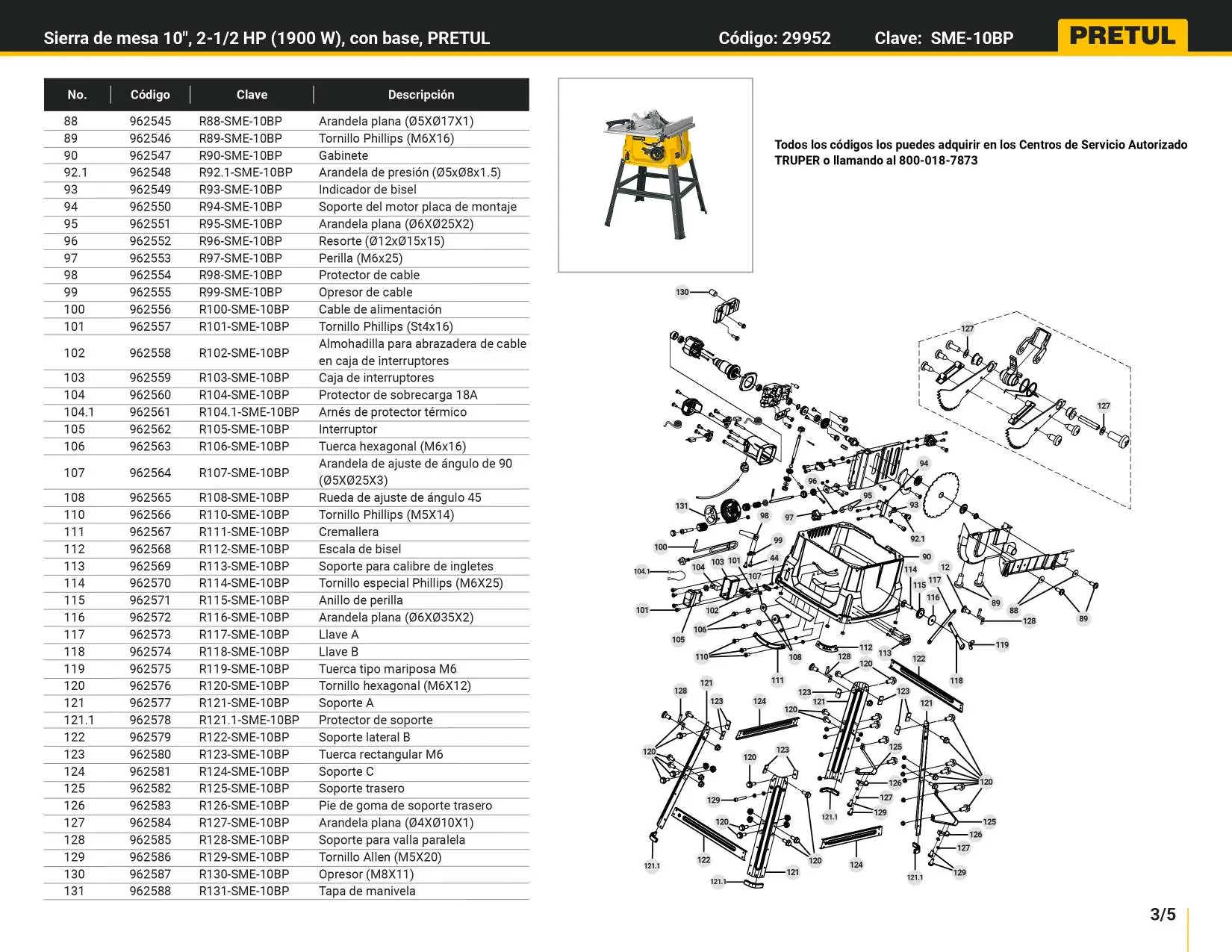

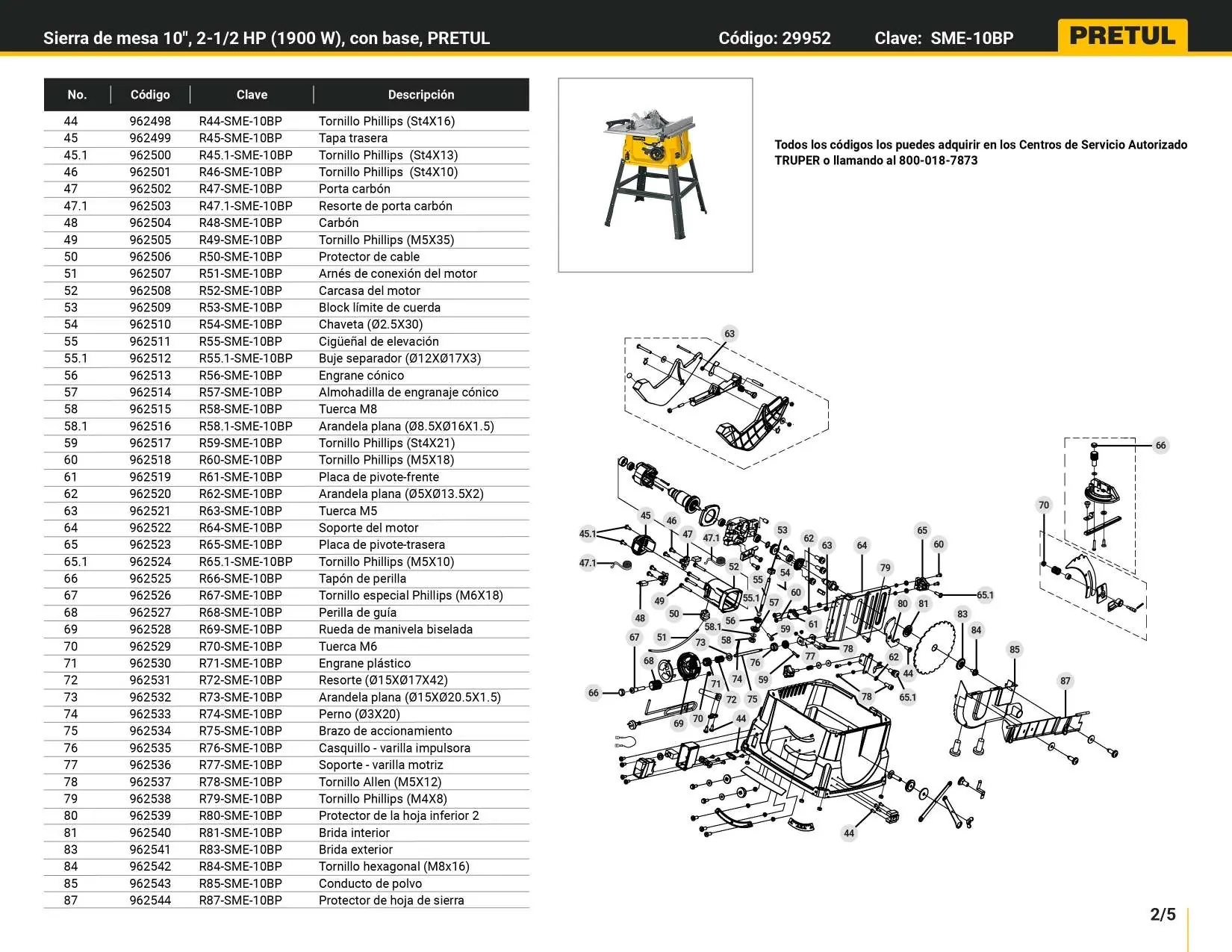

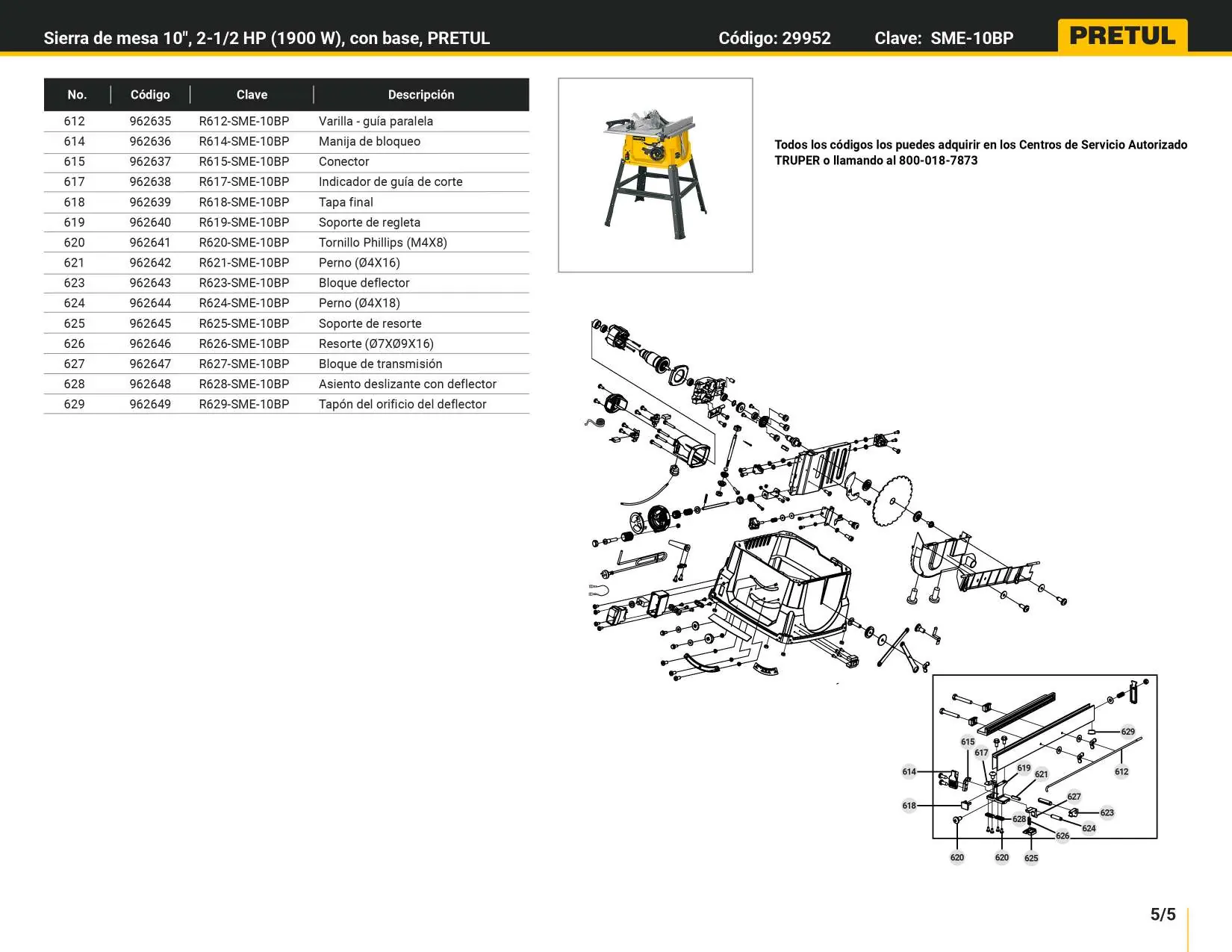

- The diagrams are split into sections covering the main body, motor, and base assembly.
- Each part is labeled with a number corresponding to the table on the left side of the page.
- Exploded views show the sequence of assembly for complex components like the gear box and motor housing.
Model compatibility
- Parts are specific to the Pretul SME-10BP model.
- Use only original replacement parts to ensure safety and performance.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
