RS PRO 2000W Fixed Installation DC-AC Power Inverter 179-3336
Quick guide for the RS PRO 2000W Fixed Installation DC-AC Power Inverter (179-3336). Includes technical specifications, electrical ratings, and dimensional diagrams.
Quick answers from the manual
Quick answer
- The RS PRO 179-3336 is a 2000W fixed installation DC-AC power inverter that converts 12V DC input to 230V AC output, suitable for home appliances and power tools. p. 1, 2
Key actions
- Mount the inverter using the chassis mounting points. p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Power | 2000W | Continuous power output capacity | p. 2 |
| Input Voltage | 12V DC | Required DC input voltage | p. 2 |
| Output Voltage | 230V AC | AC output voltage | p. 2 |
Where to find it in the PDF
- Features and Overview p. 1
- Specifications p. 2, 3
- Dimensional Drawing p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

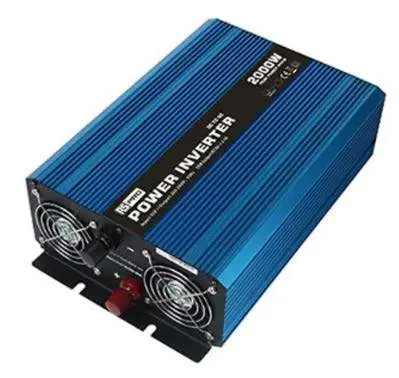

The RS PRO 179-3336 is a fixed installation DC-AC power inverter designed to convert 12V DC input into 230V AC output. It is suitable for powering home appliances, power tools, and portable equipment in mobile environments like cars or mobile homes.
Product description
This device is a compact and lightweight inverter featuring a pure sine wave output, which is ideal for sensitive electronics. It is designed for chassis mounting and utilizes natural convection for cooling.
Electrical specifications
- Input Voltage: 12V DC
- Maximum DC Current: 333.3A
- Output Voltage: 230V AC
- Rated Power: 2000W
- Peak Power: 2100W
- Surge Power: 4000W
- Output Current: 17.39A
- Waveform: Pure Sine Wave
- Frequency Range: 50Hz
- Efficiency: >90%
- Output Electrical Phase: 1
- Number of Output Connections: 2
Mechanical and environmental specifications
- Dimensions: 372mm x 230mm x 107.7mm
- Weight: 4.9kg
- Cooling: Natural convection
- Operating Temperature Range: -20°C to +50°C
- MTBF (Mean Time Between Failures): 50,000 hours
Compliance and certifications
The device complies with the following standards:
- CE
- ECE R10.05:2014
- EN 60950-1
- EN 61000-6-1
- EN 61000-6-3
- RoHS

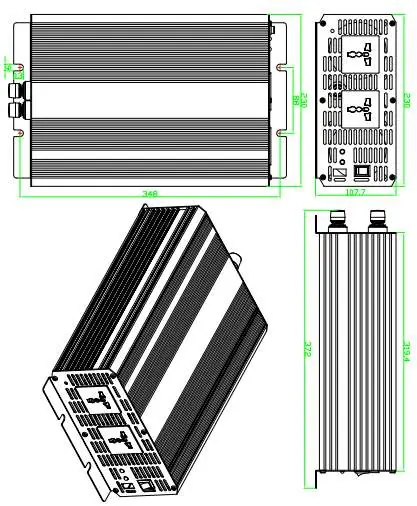

Dimensional drawings
The unit is designed for chassis mounting. Refer to the dimensional drawing on page 4 for exact mounting hole spacing and physical dimensions required for installation.
Manufacturer information
RS PRO
Practical help
Before use
- Ensure the input power source provides 12V DC.
- Verify that the total power consumption of connected appliances does not exceed the 2000W rated power.
- Ensure the installation location allows for natural convection cooling.
- Check that the operating environment is within the -20°C to +50°C temperature range.
Specs in practice
- Pure Sine Wave
- Provides a clean, stable electrical output suitable for sensitive electronic devices.
- Surge Power 4000W
- The maximum power the inverter can handle for short durations, typically during the startup of motors or compressors.
- Efficiency >90%
- Indicates high energy conversion efficiency, reducing power waste and heat generation.
Images and diagrams
- The dimensional drawing on page 4 provides the exact mounting hole spacing and overall unit dimensions for chassis installation.
Model compatibility
- Designed for 12V DC input sources such as car batteries or small-scale power generators.
- Output is 230V AC single-phase.
