User Guide for RS PRO 1000W DC-AC Power Inverter
Quick guide for the RS PRO 1000W DC-AC Power Inverter. Includes technical specifications, installation dimensions, and operating environment requirements.
Table of contents
Manual images
Click an image to enlargeQuick Guide

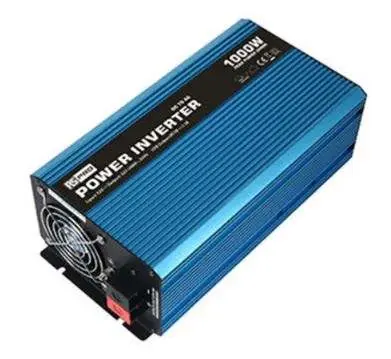

The RS PRO 1000W DC-AC Power Inverter is a fixed installation device designed to convert 12V DC power from sources such as car batteries into 230V AC power. It is suitable for powering a wide range of appliances, including home appliances, power tools, and office equipment. The unit features pure sine wave output, ensuring compatibility with sensitive electronics.
Product Description
This inverter is an electrical device that allows you to operate standard AC appliances from a DC power source. It is ideal for use in mobile homes or vehicles where direct current is the primary power source but AC appliances are required. The device is designed for chassis mounting and utilizes natural convection for cooling.
Electrical Specifications
- Input Voltage: 12V DC
- Output Voltage: 230V AC
- Rated Power: 1000W
- Peak Power: 1100W
- Surge Power: 2000W
- Output Current: 8.7A
- Waveform: Pure Sine Wave
- Frequency Range: 50Hz
- Efficiency: >90%
- Maximum DC Input Current: 166.7A
Mechanical Specifications
- Dimensions: 302.2mm x 150mm x 97.4mm
- Weight: 3kg
- Mounting Type: Chassis Mount
Operating Environment
- Cooling: Natural convection
- Operating Temperature Range: -20°C to +50°C
Installation Dimensions
The inverter is designed for fixed installation. Refer to the dimensional drawing for the exact placement of mounting holes and the layout of the output socket and cooling fan. Ensure the installation area provides sufficient space for natural convection cooling to prevent overheating.
Compliance and Approvals
The device complies with the following standards: CE, ECE R10.05:2014, EN 60950-1, EN 61000-6-1, EN 61000-6-3, and RoHS.
Manufacturer information
RS PRO
Practical help
Common problems
Incompatible input voltage
Ensure the DC power source is strictly 12V. Using a different voltage may damage the unit.
Overload protection
Ensure the connected appliance does not exceed the rated power of 1000W. The surge power limit is 2000W.
Overheating
Ensure the inverter is installed in a well-ventilated area to allow for natural convection cooling.
Before use
- Verify the DC input source is 12V.
- Check that the total power consumption of connected appliances is within 1000W.
- Ensure the installation surface is suitable for chassis mounting.
- Confirm the operating environment temperature is between -20°C and +50°C.
- Verify that the output connection type is compatible with your appliance plug.
Specs in practice
- Pure Sine Wave
- Provides clean, stable power identical to grid electricity, safe for sensitive electronics like laptops.
- Surge Power (2000W)
- The maximum power the inverter can handle for a short duration, typically during the startup of motors or compressors.
- Efficiency (>90%)
- Indicates high energy conversion efficiency, resulting in less energy waste and reduced heat generation.
Images and diagrams
- The dimensional drawing illustrates the length (302.2mm), width (150mm), and depth (97.4mm) of the unit.
- The drawing highlights the mounting hole positions for chassis installation.
- The layout shows the positioning of the output socket and the cooling fan.
Model compatibility
- Designed for 12V DC battery systems.
- Output is 230V AC, 50Hz, single-phase.
- Not suitable for appliances exceeding 1000W continuous power.
