User Manual for RURIS Genius 2300MH Garden Shed
Quick guide for the RURIS Genius 2300MH garden shed. Includes assembly instructions, safety warnings, technical specifications, and maintenance tips.
PDF source: RO · summary: English
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The RURIS Genius 2300MH is a garden shed designed for outdoor storage. This manual provides comprehensive instructions for assembly, safety, and maintenance. It is recommended that assembly be carried out by at least two people to ensure safety and ease of construction.
Safety instructions
- Protective equipment: Always wear gloves and appropriate footwear during assembly to avoid injury from sharp edges or corners.
- Stability: Ensure the shed is installed on a stable, level surface. The structure must be securely fastened to the ground to prevent movement or overturning in high winds or adverse weather conditions.
- Usage: Do not store flammable, toxic, or dangerous items inside the shed. Avoid using the shed in extreme temperature or humidity conditions.
- Children: Do not allow children to play near or inside the storage shed.

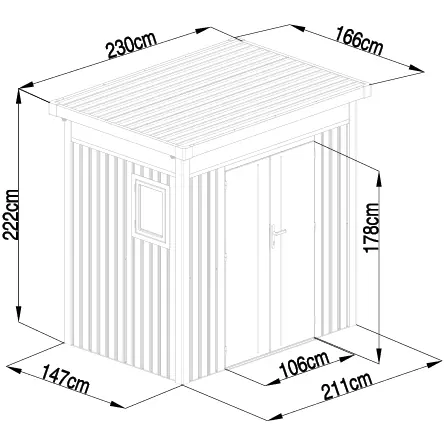

Technical data
- External dimensions: 230x166x222 cm
- Inner size: 209x145 cm
- Mounting area: 3.8 m²
- Material: Hot-dip galvanized steel
- Roof load capacity: 150 kg/m²
- Weight: 162 kg
- Door type: Double door (106x178 cm)
- Windows: 1 vertical opening window with polycarbonate material
Assembly guide

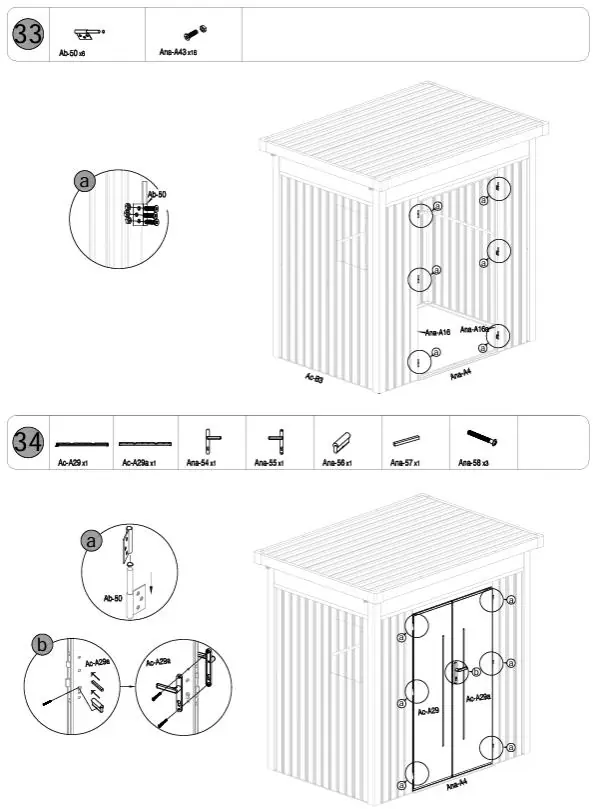

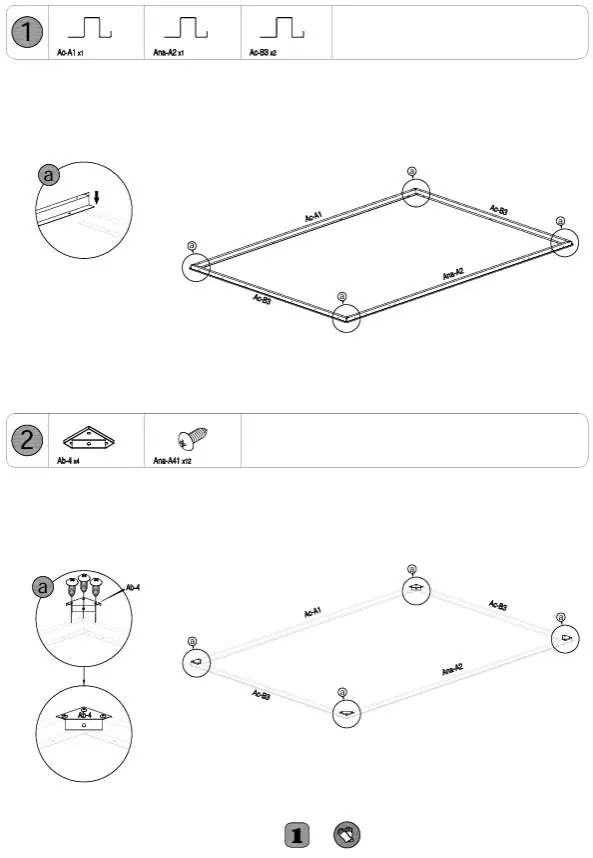

The assembly process involves multiple steps, starting with the base frame and progressing to the walls, roof, and doors. The manual includes a detailed exploded view and step-by-step diagrams (pages 7-33) to guide the installation of all components, including gutters and downpipes.
Maintenance
Periodically check the integrity of the structure to ensure all elements are in good working order. Keep the shed clean and ensure that the drainage system (gutters and downpipes) remains clear of debris.
Practical help
Common problems
Structure instability
Ensure the shed is mounted on a stable, level surface and that the bottom rails are securely anchored using the provided expansion screws.
Risk of overturning in high winds
Verify that the structure is properly secured to the ground and that all fasteners are tightened according to the assembly steps.
Before use
- Check all parts against the provided list in the manual
- Ensure at least two people are available for assembly
- Prepare a stable, level ground surface
- Wear protective gloves and appropriate footwear
- Have necessary tools ready for assembly
Show more Show less
Images and diagrams

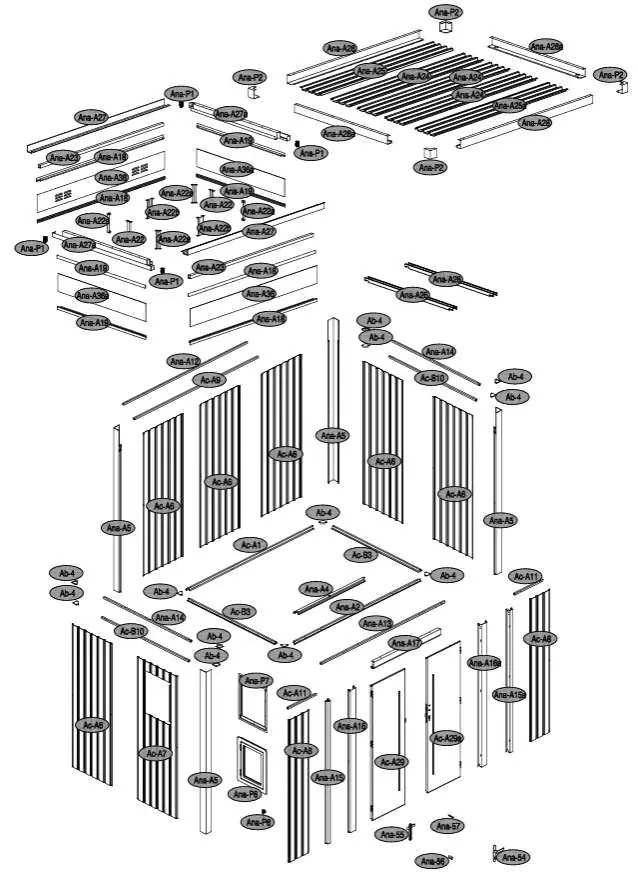

- The manual contains a comprehensive exploded view of the shed components on page 5.
- Assembly steps 1 through 40 provide detailed visual instructions for every phase of construction.
Model compatibility
- The shed is designed for outdoor use only.
- The floor is not included in the standard kit.
