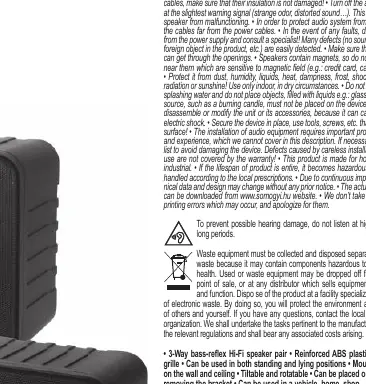

User Manual for SAL BXB 10050P Speaker Pair

Quick guide from the manual

This manual provides essential instructions for the SAL BXB 10050P speaker pair. Before using the product, ensure you have read the safety warnings. Key points include:

• Break-in period: Operate the speakers at 50% load for the first 30-50 hours to ensure proper performance.
• Wiring: Always power off the amplifier before making connections. Ensure correct polarity (Red: positive, Black: negative) and use a cable with a cross-section of at least 2x0.5mm².
• Volume: Do not operate at maximum volume for long periods to prevent hearing damage and speaker distortion.
• Placement: The speakers can be mounted on walls or ceilings using the included bracket, or placed on furniture.

Product Description

The SAL BXB 10050P is a 3-way bass-reflex Hi-Fi speaker pair featuring a reinforced ABS plastic housing and a metal protective grille. These speakers are versatile, suitable for use in vehicles, homes, and shops, and can be connected directly to car radios with 4-8 Ohm output.

Placement and Mounting

The speakers are designed for flexibility:

• Wall/Ceiling Mounting: Use the provided wall bracket to mount the speakers on a ceiling or wall. The bracket allows for tilting and rotating to direct the sound.
• Standing/Lying: The speakers can be used in both vertical and horizontal positions.
• Furniture Placement: By removing the bracket, the speakers can be placed on furniture or shelves as traditional speakers.

Installation and Wiring

Follow these steps for a safe installation:

1. Ensure the sound system (amplifier) is powered off before connecting.
2. Check that connections and polarity are correct.
3. Ensure the speaker wire ends do not touch each other or other metal objects to prevent short circuits.
4. Set the amplifier volume to the minimum position before turning on the system to avoid sudden noise spikes.
5. Slowly increase the volume after turning on the system.

Maintenance and Cleaning

To keep your speakers in good condition:

• Use a soft, dry cloth for cleaning.
• Do not use aggressive cleaners or liquids.
• Prevent liquid from entering the device or the connectors.
• Periodically check the speakers, power cable, and fasteners for damage.

Safety Warnings

• Do not listen at high volume levels for long periods to prevent hearing damage.
• Keep the packaging away from children if it contains plastic bags or hazardous components.
• Do not place objects sensitive to magnetic fields (e.g., credit cards, compasses) near the speakers, as they contain magnets.
• Protect the device from dust, humidity, liquids, heat, frost, shock, and direct sunlight.
• Do not disassemble or modify the unit, as this can cause fire, accident, or electric shock.
