Sanela SLP 02KX Infrared Urinal Flusher User Guide
Quick guide for the Sanela SLP 02KX infrared urinal flusher. Includes technical specifications, installation requirements, sensor operation details, and configuration via Bluetooth or remote control.
Table of contents
Quick guide from the manual
The Sanela SLP 02KX is an infrared-controlled urinal flusher designed for automatic operation. It features Bluetooth connectivity for parameter configuration via the Sanela Control app or the SLD 03 remote control. The system ensures hygiene through automatic flushing after 24 hours of inactivity.
Device Description and Operation
The device consists of a stainless steel cover with integrated electronics and a plastic mounting box. It detects a person standing in front of the urinal at a distance of up to 0.7 meters for at least 7.5 seconds. The flush cycle is triggered automatically once the user leaves the detection zone.
Installation Requirements
The installation requires a water supply connection and a 24V DC power source. The system includes a ball valve for flow regulation. Ensure the mounting box is correctly positioned relative to the urinal and siphon as shown in the technical diagram.
Settings and Configuration
Parameters such as flush duration (adjustable from 0.5 to 15.5 seconds) can be modified using:
- Sanela Control app (Bluetooth, available on App Store and Google Play)
- SLD 03 remote control
Technical Specifications
- Power supply: 24V DC
- Power consumption: 7W
- Detection range: 0.6 - 0.75m
- Recommended operating pressure: 0.1 - 0.6 MPa
- Flow rate: 18 l/min
- Water connection: G 3/4 inch external thread
- Cover dimensions: 170 x 170 x 10 mm
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Flushing does not trigger
Ensure the user is within the 0.7m detection range for at least 7.5 seconds.
Need to adjust flush duration
Use the Sanela Control app via Bluetooth or the SLD 03 remote control to set the duration between 0.5 and 15.5 seconds.
Before use
- Verify 24V DC power supply is available.
- Ensure water pressure is within 0.1 - 0.6 MPa.
- Check that the mounting box is installed according to the diagram.
- Download the Sanela Control app if Bluetooth configuration is required.

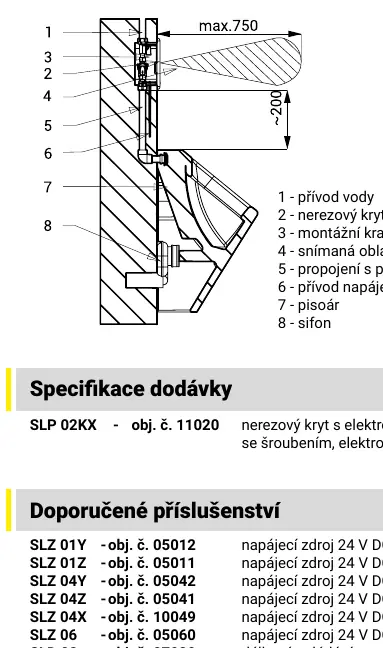

Images and diagrams
- 1: Water supply
- 2: Stainless steel cover with electronics
- 3: Mounting box
- 4: Detection zone
- 5: Connection to urinal
Model compatibility
- Requires Sanela power supply units (SLZ series) depending on the number of flushers.
- Compatible with SLA 02 inlet fitting for rear-inlet urinals.
- Compatible with SLR 07 or SLR 22 mounting frames for installation.
