Scangrip Tower Compact Connect Work Light
Quick guide for the Scangrip Tower Compact Connect work light. Learn about battery compatibility, power options, technical specifications, and safety instructions.
Table of contents
Quick guide from the manual

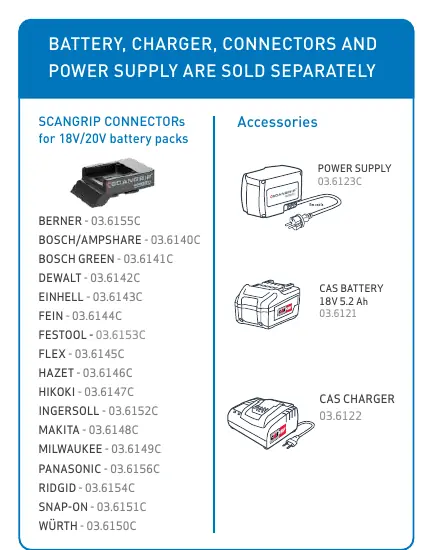

The Scangrip Tower Compact Connect is a versatile work light designed for professional use. Important: The battery, charger, power supply, and specific battery connectors are sold separately. You must purchase the correct Scangrip Connector that matches your specific battery brand to use the light with third-party 18V/20V batteries.
Power options and compatibility
The light offers flexible power solutions:
- Metabo CAS: Designed for direct use with 18V Metabo CAS batteries.
- Third-party batteries: Compatible with 18V/20V battery packs from various brands (e.g., Bosch, Makita, Milwaukee, DeWalt, etc.) by attaching the required Scangrip Connector.
- Power Supply: Can be powered directly using a Scangrip Power Supply instead of a battery.
Safety instructions
- Always respect applicable legislation for working with electrical equipment to reduce the risk of accidents.
- Do not look directly into the beam of light to avoid dazzling.
- Do not use the lamp near a naked flame.
- The light source is not replaceable. When the light source reaches its end of life, the entire luminaire must be replaced.
Technical specifications
- Light output: 1200/2500 lm (step 1/2).
- Light source: 2 x 40 LEDs.
- Operating time: 4.5-9.5 hours (at 18V 5.2 Ah battery).
- Operating temperature: -10°C to +40°C.
- IP rating: IP54 when using the power supply; IP30 when using a battery.
- Impact resistance: IK07.
- Dimensions: 956 x 78 x 91 mm.
- Weight: 2.74 kg.
Disposal
Discarded electrical products must not be disposed of with household waste. Please use designated recycling facilities. Consult your local authority or retailer for advice on recycling.
Manufacturer information
SCANGRIP A/S
Practical help
Common problems
Light does not turn on
Ensure the battery is charged or the power supply is correctly connected. Verify that the correct Scangrip Connector for your specific battery brand is properly installed.
Light source failure
The light source is not replaceable. If the LEDs fail, the entire unit must be replaced.
Before use
- Verify you have the correct Scangrip Connector for your battery brand.
- Ensure the battery is fully charged before use.
- Check that the ambient temperature is within the -10°C to +40°C range.
- Inspect the unit for any physical damage.
Specs in practice
- 1200/2500 lm
- Two selectable brightness levels (step 1 and step 2).
Model compatibility
- Native compatibility with Metabo CAS 18V batteries.
- Compatible with 18V/20V batteries from brands like Bosch, Makita, Milwaukee, DeWalt, etc., via Scangrip Connectors.
- Can be powered by a Scangrip Power Supply.
