User Manual for Scheppach TIGER 2000S Wet Grinder
Comprehensive user guide for the Scheppach TIGER 2000S wet grinder. Includes setup, grinding techniques, maintenance, and troubleshooting.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- The Scheppach TIGER 2000S is a wet grinder for sharpening metal tools. It features a 200mm grinding stone and a leather honing wheel. p. 5, 19, 30, 43
Key actions
- Perform a sound test on the grinding stone before installation. p. 37, 50, 62, 74
- Adjust the grinding direction based on the task. p. 12, 25, 37, 51
First start
- Ensure the machine is on a stable surface, install the grinding stone and water tank, and connect to power. p. 11, 24, 36, 49
Show 4 more answers Show less
Problems and fixes
Motor does not start
Check cable, plug, and fuses. Do not repair the motor yourself.
p. 16, 42, 55, 67Maintenance and reset
- Clean the device after each use and keep ventilation slots free of dust. p. 14, 27, 39, 53
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 120 W | Motor power consumption | p. 10, 24, 36, 49 |
| Weight | 8.7 kg | Total weight of the machine | p. 10, 24, 36, 49 |
Where to find it in the PDF
- Technical Data p. 10, 24, 36, 49
- Parts Diagram p. 90
Table of contents
Quick guide from the manual
The Scheppach TIGER 2000S is a wet grinder designed for sharpening metal tools. Before use, ensure the machine is placed on a stable, well-lit surface. Always perform a sound test on the grinding stone to check for cracks before installation. The machine can be operated with or against the grinding direction depending on your needs.
Device description
Key components include the grinding stone, leather honing wheel, water tank, workpiece support, and motor. The machine is designed for wet grinding of metal tools.
Installation
The grinding stone is not pre-mounted for packaging reasons. Use a 19mm wrench (not included) to secure it. Ensure the water tank is positioned correctly under the stone and filled to the mark. The workpiece support can be attached to the upper or side mount depending on the desired grinding direction.
Operation
Grinding direction: Working against the grinding direction is recommended for removing large amounts of steel (e.g., from old, rusty tools). Working with the grinding direction is recommended for precise sharpening of tools and knives.
Honing: Impregnate the leather honing wheel with machine oil and apply honing paste. Distribute the paste by pressing the tool onto the wheel with circular movements.
Maintenance
Keep ventilation slots clean. The device has no internal parts requiring maintenance. Wear parts include the grinding stone, honing paste, leather honing wheel, and friction wheel. Clean the device immediately after each use.
Troubleshooting
If the motor does not start, check the power cable, plug, and fuses. If the motor runs slowly or lacks power, check the voltage or consult a specialist regarding the capacitor.
Manufacturer information
Scheppach
Practical help
Common problems
Motor does not start
Check the power cable, plug, and fuses. Have the machine checked by a specialist.
Motor runs slowly or does not reach operating speed
Voltage may be too low. Check the power supply or have the capacitor replaced by a specialist.
Motor overheats
Avoid overloading the motor during grinding and remove dust from the motor housing to ensure optimal cooling.
Before use
- Check for transport damage.
- Ensure the machine is placed on a stable, solid surface.
- Ensure sufficient lighting.
- Perform a sound test on the grinding stone to check for cracks.
- Ensure the water tank is filled to the mark.
- Verify that the grinding stone can rotate freely.
Show more Show less
Specs in practice
- Grinding stone
- ø 200/12 x 40 mm
- Idle speed (stone)
- 120 min⁻¹
Images and diagrams

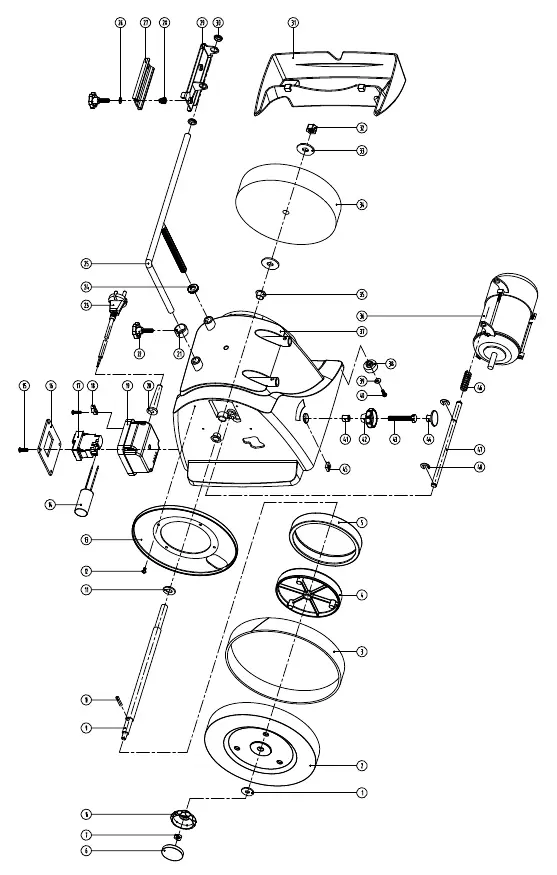

- The parts diagram on page 90 illustrates the assembly of the grinding stone, motor, and housing components.
Model compatibility
- Use only grinding stones with the same technical specifications.
- Optional fixtures available for axes (art. no. 89490712) and blades (art. no. 89490708).
