Installation and User Guide for Scs Sentinel MecaBell 3238 Wired Doorbell
Quick guide for the Scs Sentinel MecaBell 3238 wired electromechanical doorbell. Includes installation steps, wiring diagrams, safety warnings, and warranty information.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The MecaBell 3238 is a 230V wired electromechanical doorbell. Installation requires disconnecting the mains power and using rigid wires with a minimum cross-section of 1.5mm². p. 1
Key actions
- Disconnect mains power before installation p. 1
- Use rigid wires with at least 1.5mm² cross-section p. 1
Problems and fixes
Device not functioning
Check mains power connection and circuit breaker status.
p. 1Show 3 more answers Show less
Maintenance and reset
- Clean with a soft, dry cloth; do not use abrasive cleaners. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V | Mains power requirement | p. 1 |
| Wire cross-section | 1.5mm² | Minimum required wire thickness | p. 1 |
Where to find it in the PDF
- Installation and Wiring p. 1
- Warranty and Safety p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Scs Sentinel MecaBell 3238 is a wired electromechanical doorbell designed for 230V mains power. This document provides essential instructions for safe installation and maintenance. Always ensure the mains power is disconnected before performing any installation work.
Installation and Wiring
Installation must be performed by a qualified person. Follow these steps to install the doorbell:
- Preparation: Ensure the mains power supply is disconnected and the circuit breaker is off.
- Opening: Open the doorbell casing to access the internal terminals.
- Wiring Requirements: Use rigid wires with a minimum cross-section of 1.5mm². Do not use wires smaller than this specification.
- Connection: Connect the two wires from the 230V mains to the terminal block. Ensure connections are secure and there is no looseness.
- Finalizing: Once wiring is complete, ensure the casing is properly closed before restoring power.
Safety Warnings
- Indoor Use Only: This device is intended for indoor use only. Do not expose it to dripping or splashing water.
- Heat Sources: Keep the device away from heat sources such as radiators.
- Children: Keep the product and packaging away from children; it is not a toy.
- Cleaning: Do not use abrasive cleaners or solvents. Clean with a soft, dry cloth.
Warranty and Disposal
The product comes with a 2-year warranty. A proof of purchase is required for any warranty claims. Do not dispose of this device with household waste; it contains substances that may be harmful to the environment. Use designated collection points for electronic waste.
Technical Support
If you require assistance, you can contact the support hotline. In France, the number is 0 892 350 490. In Italy, the support number is 011-2339876. Further information is available on the website scs-sentinel.com.
Official resources from the manual
Manufacturer information
SCS Sentinel
Practical help
Common problems
Doorbell does not ring
Verify that the mains power is connected and the circuit breaker is switched on. Check that the wiring is secure and the cross-section is at least 1.5mm².
Before use
- Ensure mains power is disconnected before starting installation.
- Verify that the wires are rigid and have a cross-section of at least 1.5mm².
- Confirm the installation location is indoors and away from water or heat sources.
- Keep proof of purchase for the 2-year warranty.
Show more Show less
Images and diagrams

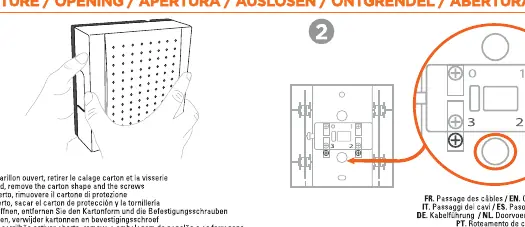

- Diagram 1: Shows the process of opening the doorbell casing.
- Diagram 2: Illustrates the terminal block layout for wire connections.
- Diagram 4: Provides the wiring schematic for connecting the Phase and Neutral wires to the 230V power source.
Model compatibility
- Designed for 230V mains power systems.
- Requires rigid electrical wiring.
