User Manual for Sealey 2200HL.V4 2-Tonne Trolley Jack
Quick guide for the Sealey 2200HL.V4 2-Tonne High Lift Low Entry Trolley Jack. Includes safety instructions, assembly steps, maintenance procedures, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Sealey 2200HL.V4 is a 2-tonne high lift trolley jack. It requires assembly of the handle before use and regular maintenance, including checking oil levels and lubricating moving parts. p. 1, 2
Key actions
- Assemble the handle by loosening the locating bolt, inserting the handle, and re-tightening the bolt. p. 1
First start
- Ensure the jack is on level ground, apply vehicle handbrake, and use wheel chocks before lifting. p. 1
Show 4 more answers Show less
Problems and fixes
Jack will not lift
Check for overload, low oil, or air in the system.
p. 2Maintenance and reset
- Check oil level by pumping jack to half height and upending it. Fill with hydraulic jack oil only. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 2 tonne | Maximum lifting capacity | p. 1 |
| Min Saddle Height | 80mm | Lowest access height | p. 1 |
Where to find it in the PDF
- Safety and Specifications p. 1
- Operation and Troubleshooting p. 2
Table of contents
Quick Guide
The Sealey 2200HL.V4 is a 2-tonne high lift trolley jack designed for automotive lifting. Before use, ensure the jack is in good condition, placed on level, solid ground (preferably concrete), and that the vehicle handbrake is engaged. Always use axle stands to support the vehicle once lifted; never rely solely on the jack.
Safety Instructions
- Capacity: Do not exceed the rated 2-tonne capacity.
- Ground: Use only on level, solid ground. Avoid tarmacadam.
- Vehicle Prep: Engage handbrake, switch off engine, and put transmission in gear or Park.
- Stability: Use wheel chocks and ensure the lifting point is stable and centered on the saddle.
- Support: Always use suitable axle stands under the vehicle before working underneath.
- Prohibitions: Do not use the jack for supporting a load for extended periods, do not move the vehicle while on the jack, and do not allow passengers inside the vehicle.
Assembly
To assemble the handle:
- Loosen the locating bolt on the side of the handle base.
- Push the handle into the socket.
- Re-tighten the locating bolt, ensuring it fits correctly in the groove.
Operation and Maintenance
Operation: The jack features a quick-lift foot pedal and dead man's control. Ensure the release valve is closed before pumping.
Maintenance:
- Cleaning: Keep the jack clean and lubricate moving parts with acid-free oil regularly.
- Oil Level: Check the oil level by pumping the jack to half height, then upending it (with assistance). The oil level should be just below the lower edge of the filling hole. Use only hydraulic jack oil.
- Storage: Store in a safe, dry, childproof area with the jack fully lowered.
- Repairs: Maintenance and repairs should be performed by qualified personnel.
Troubleshooting
If the jack fails to operate correctly, check the following:
- Jack will not lift: Check for overload, low oil, or air in the system. Ensure the release valve is closed.
- Spongy feel: Check oil levels and bleed air from the system.
- Jack will not lower: Lubricate moving parts or check for a bent piston rod.
Manufacturer information
Sealey Group
Practical help
Common problems
Jack will not lift the load
Check for overload, low oil, or air in the system. Ensure the release valve is closed.
Jack feels spongy or does not lift high enough
Check oil levels, bleed air from the system, or check for worn seals.
Jack will not lower completely
Lubricate moving parts, check for a bent piston rod, or ensure the release valve is fully open.
Before use
- Ensure the jack is in sound condition.
- Use on level, solid ground (preferably concrete).
- Use wheel chocks.
- Ensure vehicle handbrake is engaged.
- Check lifting point stability.
- Ensure no passengers are in the vehicle.
Show more Show less
Specs in practice
- Minimum Saddle Height
- Lowest point the jack can reach (80mm).
- Maximum Saddle Height
- Highest point the jack can reach (805mm).
Images and diagrams

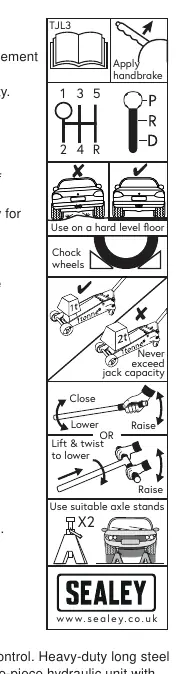

- The safety diagram on page 1 illustrates proper usage: apply handbrake, use on hard level floor, use axle stands, and never exceed capacity.
Model compatibility
- Use only genuine Sealey parts.
- Do not use brake fluid; use hydraulic jack oil only.
