User Manual for Sealey 2201HL 2-Tonne Trolley Jack

Quick guide for the Sealey 2201HL 2-Tonne Long Reach High Lift Commercial Trolley Jack. Includes assembly, operation, maintenance, and troubleshooting steps.

Quick answers from the manual

Quick answer

The Sealey 2201HL is a 2-tonne trolley jack. Before first use, purge the hydraulic system by opening the release valve and pumping the handle for 30-40 seconds. Always use axle stands when working under a vehicle. p. 1, 2

Key actions

Purge air from the hydraulic system before first use. p. 2
Check oil level by upending the jack. p. 2

First start

Loosen locating bolt, insert handle, and re-tighten bolt. p. 1
Purge air from the system. p. 2

Show 4 more answers Show less

Problems and fixes

Jack will not lift

Check for overload, low oil, or air in system.

p. 3

Maintenance and reset

Replace oil after one year. p. 2

Technical specifications

Parameter	Value	Meaning	Pages
Capacity	2000kg	Maximum lifting capacity	p. 1
Max Saddle Height	800mm	Maximum lift height	p. 1

Where to find it in the PDF

Safety and Assembly p. 1
Operation and Maintenance p. 2
Troubleshooting p. 3

Table of contents

Manual images

Click an image to enlarge

Page 1

Page 2

Quick guide from the manual

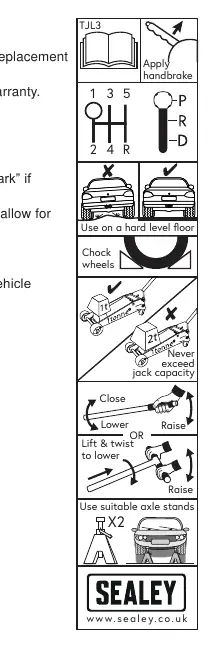

This manual provides instructions for the safe operation and maintenance of the Sealey 2201HL 2-Tonne Trolley Jack. Always ensure the jack is used on level, solid ground and that the vehicle is secured with the handbrake and wheel chocks before lifting. Never exceed the 2000kg capacity and always use axle stands before working under the vehicle.

Assembly

To assemble the jack:

Loosen the locating bolt at the side of the handle base.
Push the handle into the socket.
Re-tighten the locating bolt, ensuring it fits correctly in the groove.

Operation

Before First Use

Before using the jack for the first time, you must purge the hydraulic unit to eliminate air:

Turn the release valve control knob to open the release valve.
Pump the handle for 30 to 40 seconds.
Close the release valve by turning the control knob.

Raising and Lowering

Raising: Ensure the release valve is closed. Pump the handle or use the foot pedal to raise the jack.
Lowering: Rotate the release valve control knob to lower the jack.

Maintenance

Maintenance should only be performed by qualified personnel.

Lubrication: Keep the jack clean and lubricate all moving parts with acid-free oil regularly.
Oil Level: To check the oil, pump the jack to half height. With assistance, upend the jack so the ram is vertical. Remove the filler plug on top of the ram. The oil level should be just below the lower edge of the filling hole. Use only Sealey Hydraulic Jack Oil.
Storage: Store the jack in its lowest position to minimize corrosion.

Troubleshooting

If the jack fails to operate correctly, check for the following:

Jack will not lift: Check for overload, low oil level, or air in the system. Ensure the release valve is closed.
Jack feels spongy: This often indicates air in the system. Open the release valve and pump the handle several times to purge air.
Jack will not hold load: Check if the release valve is partially open or if there is dirt on the valve seats.

Specifications

Model No: 2201HL
Capacity: 2000kg
Length: 1350mm
Maximum Saddle Height: 800mm
Minimum Saddle Height: 140mm

Manufacturer information

Sealey Group

Brand profile

Manufacturer website Open official website Support Open support

Practical help

Common problems

Jack will not lift the load

Check for overload, low oil level, or air in the system. Ensure the release valve is fully closed.

Jack feels spongy

Air is likely in the system. Open the release valve and pump the handle 30-40 seconds to purge air.

Jack will not hold load

Release valve may be partially open or dirty. Clean valve seats and ensure it is fully closed.

Before use

Ensure the jack is on level, solid ground (preferably concrete).
Apply the vehicle handbrake and switch off the engine.
Place wheel chocks under the vehicle wheels.
Ensure the lifting point is stable and centered on the saddle.
Use axle stands under the vehicle before proceeding with any task.

Show more Show less

Specs in practice

Saddle Height: The range of vertical movement (140mm to 800mm).

Images and diagrams

The release valve control knob is located at the top of the handle.
The handle base features a locating bolt that must be tightened securely.
