Sencor SVC 0675BK Cordless Vacuum Cleaner 4 in 1
A comprehensive guide for the Sencor SVC 0675BK 4-in-1 cordless vacuum cleaner. Includes assembly instructions, operation steps, maintenance procedures for filters and the mop attachment, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sencor SVC 0675BK is a versatile 4-in-1 cordless vacuum cleaner. To ensure optimal performance, always use the original power adapter and charging base. A full battery charge takes approximately 6 hours. Before first use, ensure all filters are correctly installed and dry. The vacuum is designed for household use only and should not be used to vacuum liquids, sharp objects, or construction materials like plaster or cement.
Description of the vacuum cleaner
The device consists of several key components:
- Upright vacuum: Handle, On/Off button, suction power/brush speed button, connecting cable, release button, body, floor nozzle with electric rotary brush.
- Hand vacuum: Dust container, HEPA type filter, external filter, On/Off button, LED indicators, suction opening.
- Accessories: Slot nozzle, brush nozzle, Cat&Dog Mini motorised brush, charging base, power adapter.
- Mop attachment: Water tank, filling outlets, removable Velcro mop cover.
Assembly and disassembly
Hand vacuum cleaner
Insert the internal filter into the external filter and turn clockwise until joined. Insert the assembled filter into the dust container and attach it to the motor unit.
Upright vacuum cleaner
Connect the handle to the body, ensuring the cable is inside, and secure with the supplied screw. Attach the floor nozzle to the bottom of the body. Insert the assembled hand vacuum into the upright body.
Charging base
Assemble the base by inserting the top part into the bottom. It can be wall-mounted for stability. Connect the power adapter to the side of the base.
Wiping adapter
Place the sleeve on the bottom of the attachment. Align the tab on the attachment with the hole on the underside of the floor nozzle and press the vacuum cleaner onto the attachment until the magnets engage.
Operation
Upright vacuum: Remove from the charging base, release from the parking position, and press the On/Off button. Use the speed button to adjust suction power and brush speed.
Hand vacuum: Press the On/Off button to start. Use the slot or brush nozzle for hard-to-reach places or upholstery.
Cat & Dog Mini brush: Attach to the hand vacuum for cleaning upholstery or car interiors.
Wiping: Fill the tank with water or cleaning solution. Wet the sleeve before attaching. The vacuum will wipe while it vacuums.
Maintenance and cleaning
Always turn off and disconnect the vacuum before cleaning.
- Dust container and filters: Disassemble the hand vacuum, empty the container, and rinse with water. Wash the external filter and HEPA filter under running water. Allow all parts to dry completely before reassembly. Replace the HEPA filter every 6 months.
- Floor nozzle: If the rotary brush is tangled with hair, release the latch on the side of the nozzle, remove the brush, clean it, and reinsert.
- Wiping attachment: Empty the tank after every use. Hand wash the sleeve in warm water (30-40°C) with delicate detergent.
Technical specifications
- Power input: 120 W
- Battery: Li-ion / 25.2 V / 2200 mAh
- Charging time: Approx. 4-6 hours
- Operating time: Up to 22/50 minutes (high/low power)
- Dust container capacity: 0.5 L
- Noise level: 79 dB(A)
Manufacturer information
Sencor
Practical help
Common problems
Reduced suction power
Check if the dust container is full, filters are clogged, or the suction opening is blocked.
Vacuum stops running
The battery may be fully discharged. Check the LED indicators and charge the device.
Rotary brush not spinning
Check for hair or debris tangled around the brush. Remove the brush from the nozzle to clean it.
Water not flowing from mop
Check if the mop sleeve is clogged with dirt and clean or replace it.
Before use
- Ensure all filters are clean and completely dry.
- Verify the battery is charged.
- Check that the dust container is properly attached.
- Ensure the floor nozzle is correctly connected.
- Remove any large debris from the floor before vacuuming.
Specs in practice
- 22/50 minutes
- Operating time on high/low power settings respectively.
Images and diagrams

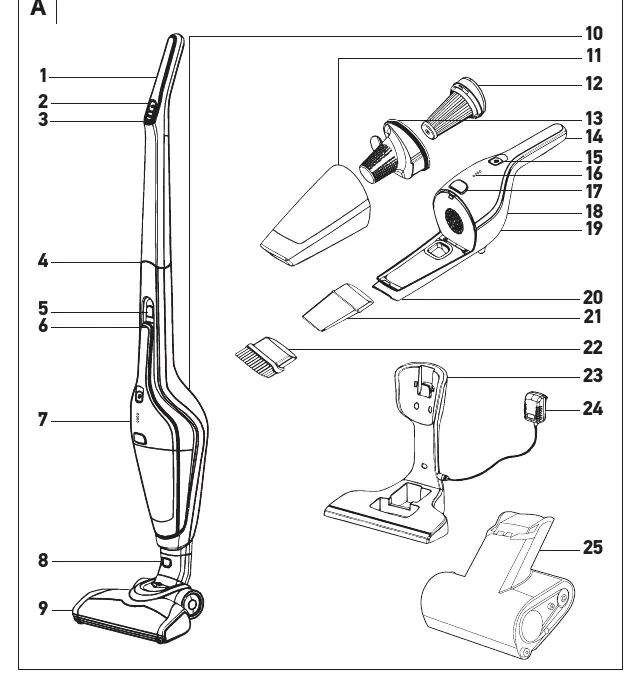

- Diagram A: Overview of all parts and accessories.

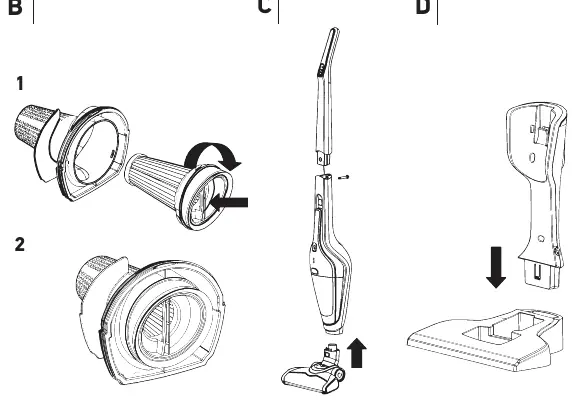

- Diagram B: Filter assembly steps.
- Diagram C: Upright vacuum assembly.
- Diagram D: Charging base assembly.

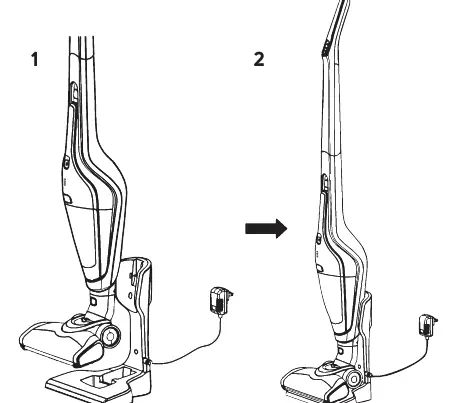

- Diagram E: Parking and charging position.
Model compatibility
- Only use the original power adapter, charging base, and accessories supplied with the unit.
- Do not use cleaning agents with bleach, chlorine, or highly alkaline substances in the mop tank.
