User manual for Sencor SVC 1086TQ vacuum cleaner
Quick guide for the Sencor SVC 1086TQ bagless vacuum cleaner. Learn how to assemble, operate, clean filters, and maintain your device for optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This vacuum cleaner is designed for household use. Before starting, ensure all filters are installed correctly. Do not use the vacuum to clean up liquids, flammable materials, sharp objects, or construction materials like cement or plaster. Always disconnect the power plug before performing any maintenance or cleaning.
Description of the appliance
The vacuum cleaner consists of the main unit and several accessories:
- A1-A5: Dust container release, handle, cord winding button, power adjustment, and On/Off button.
- A6-A10: Rubber wheels, dust container, hose connection, and flexible hose.
- A11-A13: Telescopic tube and floor nozzle with brush switch.
- A14-A22: Crevice nozzles, HEPA filter (H13), micro-filter, cyclone unit, and motor filter.
Preparing for use
Follow these steps to assemble the vacuum:
- Insert the flexible hose A9 into the hole A8 until it clicks.
- Attach the telescopic tube A11 to the hose handle A10.
- Connect the floor nozzle A12 or other accessories to the telescopic tube.
- Adjust the tube length by sliding the clip on the telescopic tube.
Using the vacuum cleaner
To operate the device:
- Pull the power cord out to the desired length (do not exceed the red mark).
- Press the On/Off button A5 to start.
- Use the suction power adjustment button A4 to set the desired power.
- When finished, turn off the unit, unplug it, and hold the cord winding button A3 to retract the cable.
- Parking: You can store the vacuum in a parking position by sliding the guide tab on the floor nozzle into the groove A20.
Cleaning and maintenance
Regular maintenance is essential for performance:
- Dust container: Press the release button A1, remove the container, and use the clip A15 to empty it. Wash the container under lukewarm water if necessary.
- HEPA filter: Remove the grille A17 at the rear to access the filter. Tap out dust or wash under lukewarm water. Allow to dry completely before reinserting. Replace every 6 months.
- Micro-filter and Motor filter: Remove the dust container to access these filters. Tap out or wash under lukewarm water. Ensure they are completely dry before reinstalling.
Technical specifications
- Rated power input: 700 W
- Dust container capacity: 3.5 l
- Operational radius: 10 m
- HEPA filter class: 13
- Weight: 4.9 kg
Manufacturer information
Sencor
Practical help
Common problems
Vacuum cleaner does not start or stops working
Check if the power cord is properly connected to the socket. Ensure the vacuum has not been damaged or submerged in water.
Power cord does not wind up completely
Release the winding button A3, pull the cord out by approximately 50 cm, and try winding it up again.
Weak suction power
Check if the dust container is full, filters are clogged, or if the hose/nozzle is blocked by debris.
Before use
- Remove all promotional labels and stickers.
- Check that the dust container and filters are properly installed.
- Ensure the electrical voltage in the socket matches the rating label.
- Verify that the power cord is not touching hot surfaces.
Specs in practice
- Rated power input
- 700 W power consumption.
- Dust container capacity
- 3.5 liters of storage for collected dust.
- Operational radius
- 10 meters reach from the power socket.
- HEPA filter class
- Class 13, indicating high filtration efficiency.
Images and diagrams
- Page 4 provides a detailed parts diagram (A1-A13) showing the main unit and accessories.

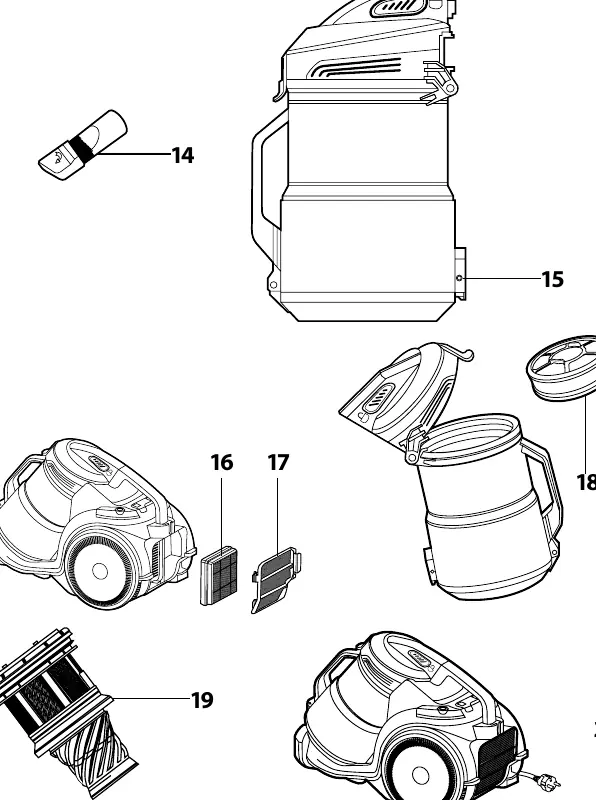

- Page 5 illustrates the disassembly of the dust container, filters, and motor filter components.
Model compatibility
- Do not use for vacuuming liquids, flammable materials, or sharp items like broken glass.
- Not intended for industrial use.
- Use only in households, offices, and similar areas.
