Sencor SVC 1025GR 3AAA Bagless Vacuum Cleaner User Manual

Quick guide from the manual

This guide provides essential instructions for operating and maintaining your Sencor SVC 1025GR 3AAA vacuum cleaner. Always ensure the dust container is emptied after use and filters are cleaned regularly to maintain suction performance. Never operate the vacuum without the filters installed or if the power cord is damaged.

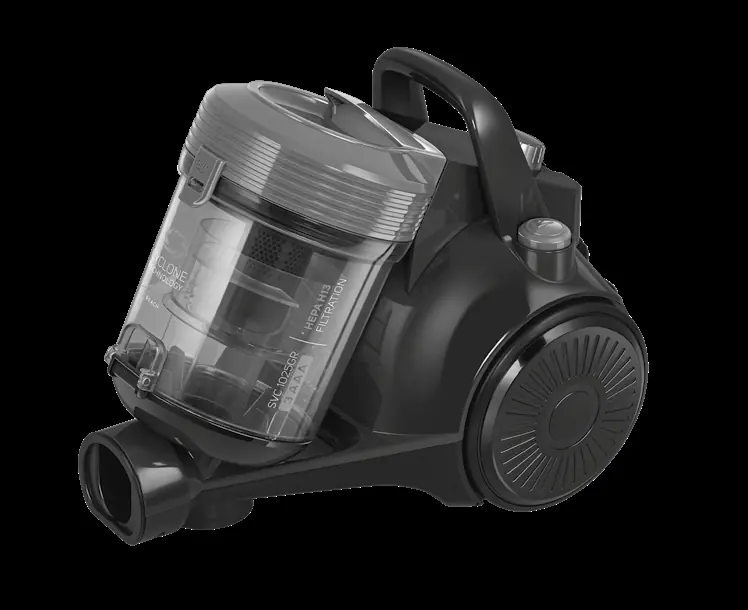

Description of the Vacuum Cleaner

The vacuum cleaner features a bagless design with a dust container (A4), suction power control (A7), and a telescopic tube (A15). Key components include the hose (A21), combination floor nozzle (A17), and various filters (A11, HEPA filter). The unit is designed for household use.

Assembly

Follow these steps to prepare the vacuum for use:

• Hose: Press the clips on the hose end and insert it into the suction hole (A5) until it clicks.
• Telescopic Tube: Attach the holder to the wider part of the tube (A15).
• Floor Nozzle: Attach the floor nozzle (A17) to the narrower part of the telescopic tube (A15).
• Adjusting Length: Use the position lock (A16) to extend or retract the tube to your desired length.

Using the Vacuum Cleaner

To operate the vacuum:

• Connecting: Pull the power cord out (do not exceed the red marking) and plug it into a socket.
• Power: Press the On/Off button (A9) to start or stop the vacuum.
• Suction Control: Use the control knob (A7) to adjust power (MIN to MAX). You can also use the sliding flap (A14) on the hose handle for quick adjustments.
• Floor Settings: Adjust the flap on the floor nozzle (A17) to retract bristles for carpets or extend them for hard floors.
• Parking: Use the parking position (A8) to store the nozzle during short breaks.

Cleaning and Maintenance

Regular maintenance is crucial for performance:

• Emptying the Dust Container: Remove the hose, grasp the handle (A2), and pull the container out. Press the release button to empty the contents into a bin. Wash the container with lukewarm water if necessary, but ensure it is completely dry before reassembly.
• Filter Maintenance: Remove the dust container, release the lid clip (A3), and remove the HEPA filter and foam pre-filter. Wash them in lukewarm water and allow them to dry thoroughly before reinstalling.
• Outflow Filter: Remove the grille (A10) to access and replace the outflow filter (A11) if needed.

Technical Specifications

• Rated Voltage: 220–240 V ~
• Rated Frequency: 50–60 Hz
• Rated Power Input: 700 W
• Dust Container Capacity: 2 L
• Noise Level: 78 dB(A)
• Operating Range: 8 m

Safety

Do not vacuum water, liquids, burning items, or construction materials like plaster and cement. Always disconnect the power plug before cleaning or maintenance. If the power cord is damaged, have it repaired at an authorized service center.
