User manual for Sencor SVC 1040SL bagless vacuum cleaner
Quick guide for the Sencor SVC 1040SL bagless vacuum cleaner. Learn how to assemble, operate, clean filters, and maintain your vacuum for optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This vacuum cleaner is designed for household use. Before operating, ensure the dust container, motor filter, micro-filter, and outflow EPA filter are correctly installed. Do not vacuum liquids, burning items, or sharp objects. Always disconnect the power cord by pulling the plug, not the cord. If the power cord is damaged, do not use the appliance and contact an authorized service center.
Description of the vacuum cleaner
The vacuum cleaner consists of several key components, including the handle (A1), dust container (A7), flexible hose (A21), telescopic tube (A22), and various nozzles (A23, A25, A26, A27). The dust container features a lock-in clip (A9) and an open clip (A18) for easy emptying. The motor filter (A17), micro-filter (A20), and outflow EPA filter (A14) are essential for maintaining suction performance.
Preparation for use
- Ensure the dust container (A7), motor filter (A17), micro-filter (A20), and outflow EPA filter (A14) are properly installed.
- Slide the flexible hose (A21) into the hole (A8) until it clicks.
- Attach the telescopic tube (A22) to the handle and adjust the length by sliding the locking clip.
- Connect the desired nozzle (A23, A25, A26, or A27) to the tube or handle.
Using the vacuum cleaner
Pull the power cord (A12) to the desired length (do not pull past the red mark). Press the On/Off button (A4) to start. Suction power can be adjusted using the mechanical flap on the hose handle. To wind the cord, press and hold the automatic winding button (A10) while guiding the cord with your hand.
Maintenance and cleaning
Emptying the dust container
When the indicator (A5) signals, empty the container. Release the lock-in clip (A9), remove the container (A7), and press the open clip (A18) over a dust bin. To clean the cyclone unit, turn the handle (A1) to the open padlock symbol, remove the top part, and wash the container under lukewarm water.
Cleaning filters
- Motor filter (A17): Tap out or wash under lukewarm water. Dry thoroughly before reinstallation.
- Micro-filter (A20): Open the lid (A2), remove, and tap out or wash under lukewarm water. Ensure it is seated in the sealing ring (A19).
- Outflow EPA filter (A14): Remove the grill (A13), take out the filter, and tap out or wash under lukewarm water. Replace every 6 months.
Attention: Always ensure all filters are completely dry before reinserting them into the vacuum cleaner.
Technical specifications
- Rated voltage: 220–240 V, 50 Hz
- Rated power input: 700 W
- Dust container capacity: 1.3 L
- Operational radius: 8 m
- Noise level: 78 dB(A)
Manufacturer information
Sencor
Practical help
Common problems
Vacuum cleaner not working
Check if the power cord is properly connected to the socket and ensure the cord is not damaged.
Weak suction power
Check if the dust container is full, filters are clogged, or if there is a blockage in the hose or tube.
Power cord does not wind up completely
Release the button, pull the cord out by approximately 50 cm, and try winding it up again.
Before use
- Ensure dust container (A7) is installed.
- Ensure motor filter (A17), micro-filter (A20), and outflow EPA filter (A14) are installed.
- Check that the electrical voltage matches the rating label.
- Ensure the flexible hose (A21) is securely clicked into the hole (A8).
Specs in practice
- Rated power input
- 700 W, indicates the power consumption of the motor.
- Dust container capacity
- 1.3 L, the maximum volume of dust the container can hold.
- Operational radius
- 8 m, the total reach of the vacuum from the power socket.
Images and diagrams

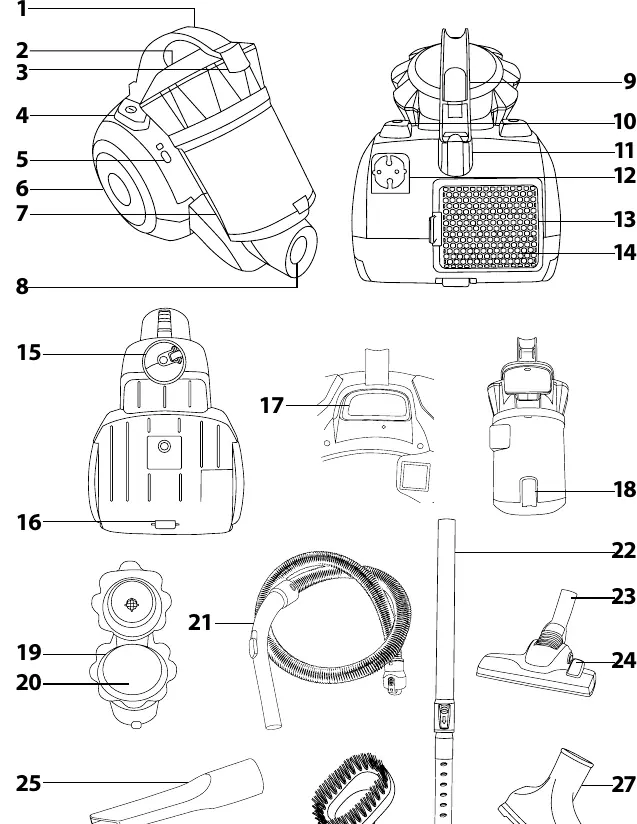

- A1-A27: Identification of all vacuum cleaner parts and accessories.
- B: Parking position for the floor nozzle.
- C1: Procedure for emptying the dust container.
- C2: Procedure for removing the cyclone unit for cleaning.
Model compatibility
- Not for industrial use.
- Do not vacuum liquids, burning items, or sharp objects.
- Use only for households and offices.
