User manual for Sencor SVC 1038GR 3AAA bagless vacuum cleaner

Quick guide from the manual

This vacuum cleaner is designed for household use. Before starting, ensure all filters are installed. To assemble, connect the hose to the suction hole until it clicks, attach the telescopic tube, and select the appropriate floor nozzle. During operation, use the suction power control knob to adjust intensity. Always empty the dust container when it reaches the MAX mark and clean the filters regularly to maintain performance.

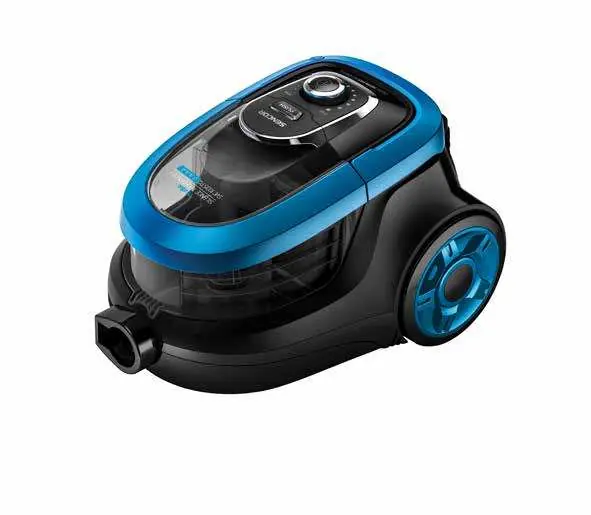

Description of the vacuum cleaner

The device features a cord winding button, suction power control, and a dust container release button. It includes a telescopic tube, a combination floor nozzle, and various accessories like a crevice nozzle, upholstery nozzle, and mini turbo brush for specialized cleaning tasks.

Assembly

Hose connection: Press the clips on the hose end and insert it into the suction hole until it clicks. Telescopic tube: Attach the holder to the wider part of the tube and the floor nozzle to the narrower part. Adjust the tube length by disengaging the clip, sliding the tube to the desired length, and locking it back in place.

Using the vacuum cleaner

Power connection: Pull the plug to unwind the cord. Do not pull beyond the red marking. Operation: Press the On/Off button to start. Use the control knob to adjust suction power (MAX to MIN). You can also use the sliding flap on the hose handle for minor suction adjustments. Parking: Use the horizontal or vertical parking slots to store the floor nozzle during short breaks.

Cleaning and maintenance

Emptying the dust container: Press the PUSH button to release the container. Remove the lid and filter, then empty the dirt. Filter maintenance: The inflow filter and foam pre-filter should be washed under lukewarm water if soiled. Ensure all parts are completely dry before reassembly. Outflow filter: Remove the protective grille to access and replace the outflow filter as needed.

Troubleshooting

If the motor does not start, check the power cord connection and the socket. If suction is weak, check for clogs in the hose or tube, clean the dust filter, and ensure the container is properly seated. If the cord does not wind in completely, hold the cable under tension while pressing the winding button.

Technical specifications

The vacuum cleaner operates at 220–240 V, 50/60 Hz with a power input of 750 W. It has a 1-liter dust container, a 7-meter power cord, and an operating range of 10 meters. The noise level is 75 dB(A).
