This document serves as a specification sheet for the Signature Hardware Paddock 2-Light Outdoor Entrance Wall Sconce (SKU 944724). It provides essential technical data and dimensional drawings for two model variants: the 16-inch PHEL5300 and the 22-inch PHEL5301. This guide is intended for planning installation and verifying product dimensions.
Product Overview

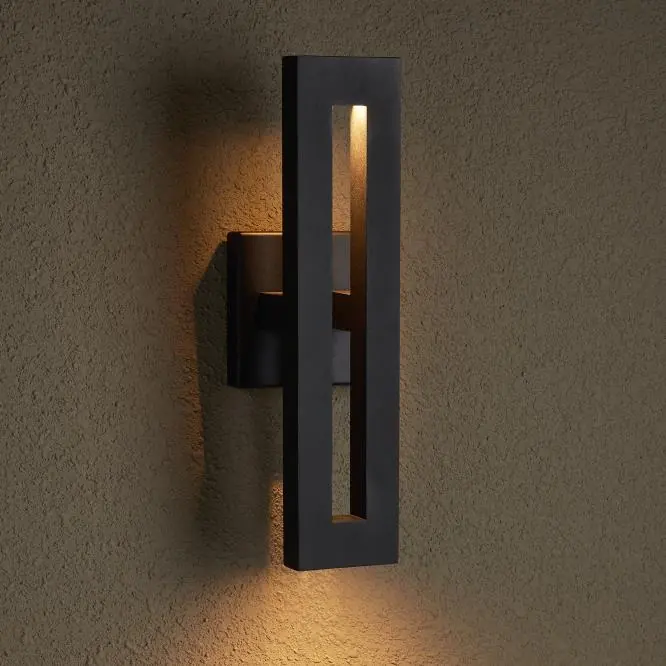

The Paddock series is a modern outdoor wall sconce designed for entrance lighting. It features an aluminum construction and utilizes integrated LED technology, meaning there are no bulbs to replace. The fixture is designed for wall mounting and is rated for outdoor use.
Technical Specifications
- Installation Type: Wall Mount
- Location Type: Outdoor
- Material: Aluminum
- Bulb Type: Integrated LED
- Number of Bulbs: 2
- Wattage per Bulb: 3W
- Mounting Hardware: Included
- Codes/Standards: UL 1598 / CSA C22.2 No 250.0
Dimensions
The document provides detailed dimensional drawings for two sizes:
- PHEL5300 (16-inch model): Features a height of 16 inches (152 mm), width of 5 inches (127 mm), and depth of 4 inches (102 mm).
- PHEL5301 (22-inch model): Features a height of 22 inches (559 mm), width of 5 inches (127 mm), and depth of 4 inches (102 mm).
Note: All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Manufacturer information
Signature Hardware
Practical help
Before use
- Verify the mounting surface is suitable for a wall-mounted outdoor fixture.
- Check the available space against the provided dimensional drawings (16" or 22" height).
- Ensure the electrical supply is compatible with the integrated LED fixture requirements.
- Confirm all mounting hardware is present in the package.
Specs in practice
- Integrated LED
- The light source is built into the fixture; no external bulbs are required or replaceable.
- Outdoor Location
- The fixture is rated for exterior use and exposure to elements.
- Nominal Dimensions
- Measurements are approximate; actual product dimensions may vary slightly.
Images and diagrams
- The dimensional drawings illustrate the height, width, and depth of the sconce.
- Drawings indicate the base plate dimensions (5 inches) for mounting reference.
Model compatibility
- Compatible with standard outdoor wall mount installations.
- Meets UL 1598 and CSA C22.2 No 250.0 safety standards.
