User Manual for Lightpro Castor 9 LED Spot
Quick guide for the Lightpro Castor 9 LED outdoor spotlight. Includes installation instructions for wall or ground mounting, reflector replacement, and dimmer operation.
Quick answers from the manual
Quick answer
- The Lightpro Castor 9 is a 12V LED outdoor spotlight. It can be mounted on a wall or in the ground using the included spike. It features a built-in 6-level dimmer and a replaceable reflector. p. 6, 8
Key actions
- Mounting on wall/surface p. 6, 8
- Mounting in ground p. 6, 8
- Replacing reflector p. 6, 8
First start

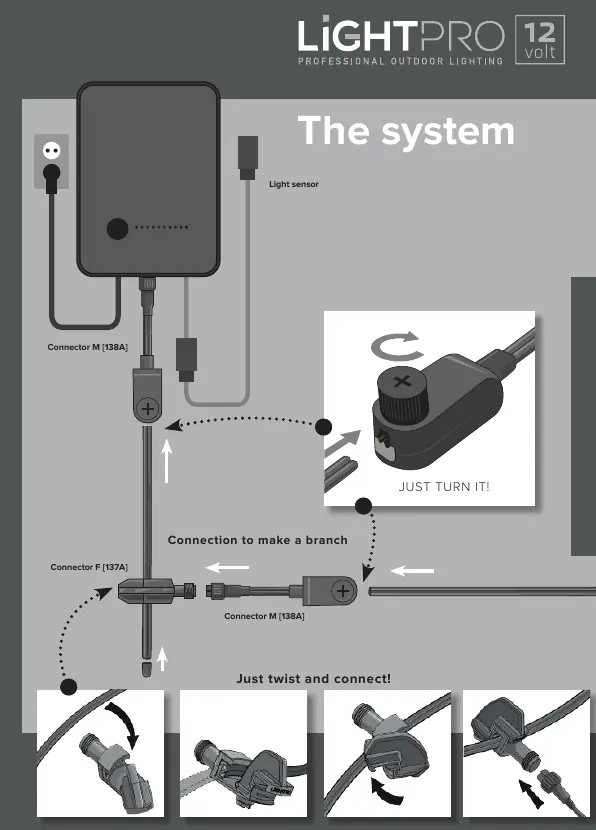

- Connect to the Lightpro 12V system using the provided connector. p. 5, 10
Maintenance and reset
- Clean regularly with a soft, clean cloth. Clean stainless steel parts every 6 months. p. 10, 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 9W | Maximum power consumption | p. 6, 8 |
| Luminous flux | 65 - 750 lm | Adjustable brightness range | p. 6, 8 |
| Protection class | IP44 | Weather resistance | p. 6, 8 |
Where to find it in the PDF
- Parts List p. 2
- Installation p. 3, 4
- Reflector & Dimmer p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Lightpro Castor 9 is a 12V LED outdoor spotlight designed for professional outdoor lighting. It features a built-in 6-level dimmer and a replaceable reflector (60° pre-installed, 30° included). The unit can be mounted on a solid surface, wall, or in the ground using the provided spike. It must be used in conjunction with the Lightpro 12V system.
Product Description
The Castor 9 is an LED spot for outdoor use. It is compatible with the Lightpro 12V system. Any modifications to the product may affect safety, warranty, and functionality.
Packaging Content
- 1. Fixture Castor 9
- 2. Ground spike
- 3. Screw
- 4. Plug
- 5. Alternative reflector
- 6. Hex key (large)
- 7. Hex key (small)
- 8. Lightpro connector
Installation
Option 1: Placement on a fixed surface or wall
- Remove the screw from the base using the included large hex key.
- Remove the fixture from the base.
- Install the base onto the surface using the included screw. If necessary, drill a hole and use the provided plug.
- Place the fixture back into the base.
- Insert the screw into the base, adjust the fixture to the desired position, and tighten the screw with the large hex key.
Option 2: Placement in the ground
- Attach the spike underneath the base and fasten it securely.
- Adjust the fixture to the desired position.
- Tighten the screw with the large hex key.
- Place the fixture into the ground.
Reflector Replacement
The pre-installed reflector has a beam angle of 60°. To replace it with the included 30° alternative:
- Turn the head off the fixture.
- Unscrew and remove the existing reflector.
- Insert the alternative reflector and fasten it.
- Place the head back into the fixture, ensuring the screw hole is aligned.
- Insert the screw and tighten it using the small hex key.
Dimmer Function
The fixture is equipped with a built-in dimmer. Press the button on the back of the fixture to cycle through the 6 different brightness levels.
Safety and Maintenance
- Safety: This product is for 12V systems only. Do not embed or brick in the product permanently. Ensure it remains accessible for maintenance.
- Cleaning: Clean regularly with a soft, clean cloth. Do not use high-pressure washers or aggressive chemical cleaners.
- Stainless Steel: Clean parts with stainless steel cleaner once every 6 months.
- Temperature: Suitable for ambient temperatures between -20°C and 50°C.
- Support: For questions or service, contact [email protected].
Practical help
Common problems
Light not turning on
Check the connection to the 12V transformer and ensure the system is powered.
Fixture loose after mounting
Ensure the screw in the base is fully tightened using the provided large hex key.
Before use
- Verify all parts from the packaging list are present.
- Ensure you have a compatible Lightpro 12V transformer.
- Check the mounting surface for stability.
- Decide between wall/surface mount or ground spike installation.
Specs in practice
- Protection class IP44
- Protected against solid objects over 1mm and splashing water.
- Ambient temperature
- Operating range is -20°C to 50°C.
Images and diagrams

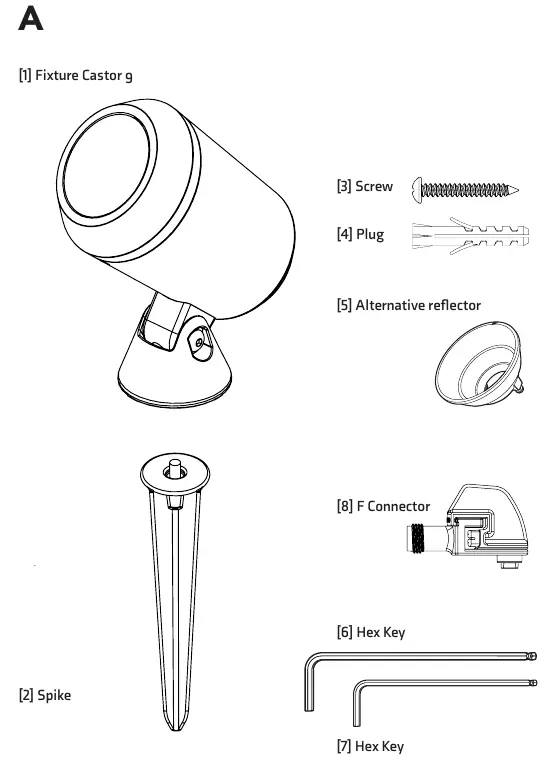

- Figure A: Identification of all included parts.

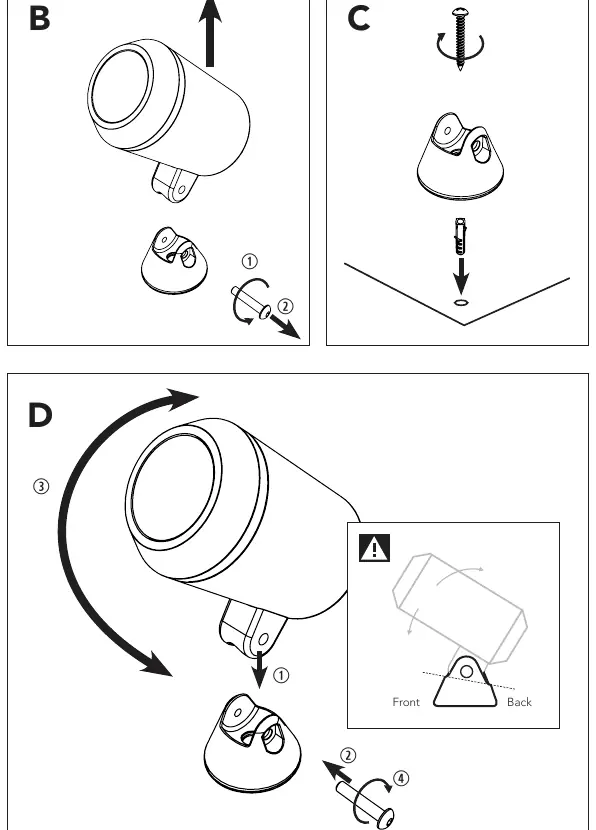

- Figure B-D: Step-by-step guide for wall and surface mounting.

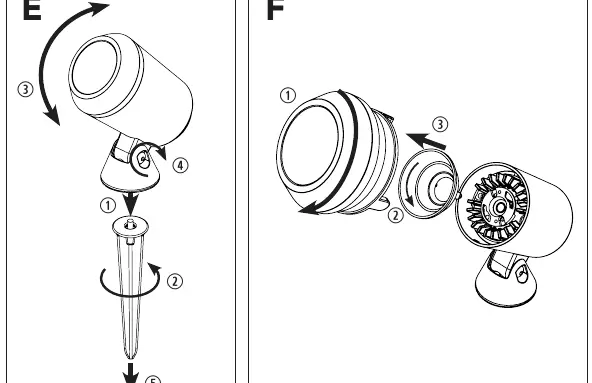

- Figure E: Step-by-step guide for ground spike installation.

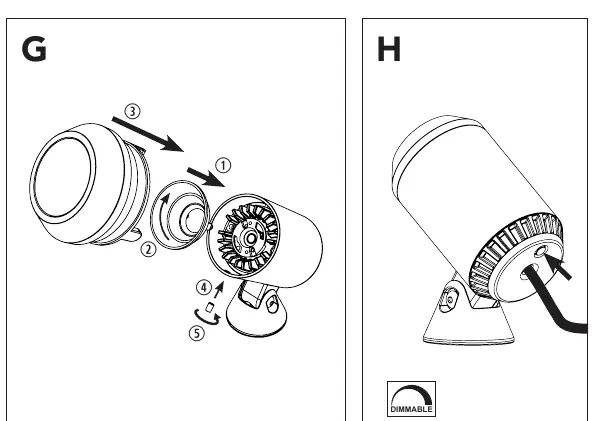

- Figure F-G: Procedure for replacing the reflector.
- Figure H: Location of the dimmer button.
Model compatibility
- Must be used with Lightpro 12V system.
- Not suitable for permanent embedding or bricking in.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
