SIIG 04-1422A 4K60Hz HDMI 2.1 Capture Device User Manual
Quick guide for the SIIG 04-1422A 4K60Hz HDMI 2.1 Capture Device. Learn about system requirements, setup for PC and consoles, LED indicators, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The SIIG 4K60Hz HDMI 2.1 Capture Device allows you to record and stream high-quality video from PCs and gaming consoles. To ensure optimal performance, always use the USB-C cable included in the package and connect the device to a USB 10Gbps port on your computer. Ensure your monitor supports the required bandwidth for 4K@144Hz pass-through.
System Requirements
Before installation, ensure your computer meets the following specifications:
- Interface: USB 10Gbps Type-C port.
- OS: Windows 10 (64-bit)/11 or later; macOS 13/14 or later (max recording 4K@30Hz).
- Hardware (Desktop): Intel Core i5-6xxx or AMD Ryzen 5 1xxx or above; 8GB RAM (16GB recommended); NVIDIA GeForce GTX1060 or AMD Radeon RX570 or above.
- Hardware (Laptop): Intel Core i7-7700HQ or AMD Ryzen 5 3500U or above; 8GB RAM (16GB recommended); NVIDIA GeForce GTX1050Ti or AMD Radeon RX570 or above.
Device Layout
The device features the following ports and controls:
- 1. 3.5mm Headset Jack: Connect your headset for audio mix.
- 2. 4-Pole 3.5mm Gamepad Jack: Use the included audio cable to connect to a gamepad for party chat recording.
- 3. USB-C Port: Connects to the PC. Requires a USB 10Gbps port for 4K@60Hz recording.
- 4. OS Button: Press down when the video source is Windows or macOS to stop sending HDCP; push back otherwise.
- 5. HDMI Output: Connect to a monitor for video pass-through.
- 6. HDMI Input: Connect to the PC or game console video source.
Setup
PC Gaming Setup: Connect the PC video source to the HDMI Input. Connect the monitor to the HDMI Output. Connect the device to the PC via the USB-C port.
Console Gaming Setup: Connect the console to the HDMI Input. Connect the TV/monitor to the HDMI Output. Connect the device to the PC via the USB-C port. Use the 4-pole audio cable for gamepad chat.
LED Indicators
The top LED indicates the device status:
- Power plug in: Purple (1 sec).
- USB 10G speed: Purple (Working: Purple flashing).
- USB 5G speed: Blue (Working: Blue flashing).
- USB 480M speed: Orange (Working: Orange flashing).
- No Video: Blue and Orange flashing.
- HDCP Protected: Blue and Orange flashing.
- FW Update: Orange flashing.
Troubleshooting
If you encounter issues, check the following:
- Recording 4K@60Hz: Ensure you are using a USB 10Gbps port. Note that macOS only supports 4K@30Hz recording.
- HDCP Protected Signals: The device does not support recording HDCP-protected signals. If you are using Windows with an AMD graphics card or macOS, press the OS button to stop the device from sending HDCP.
- Performance Issues: Always use the provided USB cable and ensure your HDMI cable supports HDMI 2.1 signal transmission.
Manufacturer information
SIIG, Inc.
Practical help
Common problems
Cannot record 4K@60Hz video
Ensure the device is connected to a USB 10Gbps port. macOS is limited to 4K@30Hz recording.
Cannot record or live stream HDCP-protected signals
The device does not support HDCP recording. Press the OS button to stop the device from sending HDCP signals.
Device not working as expected
Try using a different HDMI cable that supports HDMI 2.1 and ensure you are using the USB cable provided in the box.
Before use
- Verify your computer has a USB 10Gbps Type-C port.
- Use the USB-C cable included in the package.
- Ensure your monitor supports 4K@144Hz 48G bandwidth if using that resolution.
- Check that your PC meets the minimum CPU, RAM, and GPU requirements.
- Connect the gamepad to the 4-pole 3.5mm jack if recording party chat.
Specs in practice
- 4K@144Hz Pass-through
- Allows the monitor to display 4K at 144Hz while the device captures the signal.
Images and diagrams

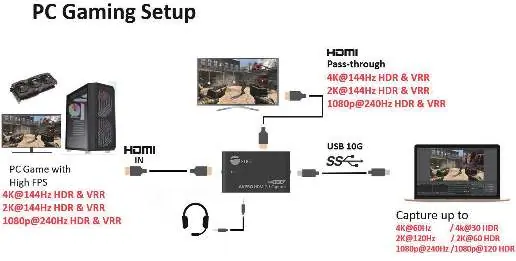

- The PC Gaming Setup diagram shows the connection flow from the PC graphics card to the capture device, then to the monitor and the streaming PC.
- The Console Gaming Setup diagram illustrates connecting the console to the capture device, with a separate connection for the gamepad audio.
Model compatibility
- Compatible with Windows 10/11 and macOS 13/14.
- Supports UVC/UAC compliant software like OBS Studio.
- Does not support 21:9 aspect ratio.
