Installation Guide for SSV Works 230-SWTS-KRX Turn Signal Kit with Horn
Complete installation guide for the SSV Works 230-SWTS-KRX Turn Signal Kit with Horn for Kawasaki Teryx KRX1000. Includes wiring diagrams, mounting instructions, and switch operation.
Quick answers from the manual
Quick answer
- This guide provides installation instructions for the SSV Works 230-SWTS-KRX Turn Signal Kit with Horn on a 2020-2024 Kawasaki Teryx KRX1000, including wiring, mounting, and operation. p. 1, 8
Key actions
- Mount the TANGO2 module and rocker switch. p. 4
- Connect harnesses to tail lights and power. p. 6, 7
First start
- The system is ready once installed. Use the rocker switch for turn signals and horn. p. 8
Show 3 more answers Show less
Problems and fixes
Horn mounting
Mount away from moving parts, as high as possible, and facing downward.
p. 6Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Horn Frequency | 500Hz | Operating frequency of the horn. | p. 2 |
Where to find it in the PDF
- Parts List p. 2
- Wiring Diagram p. 3
- Installation Steps p. 4, 5, 6, 7
- Switch Functions p. 8
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides installation and operation instructions for the SSV Works 230-SWTS-KRX Turn Signal Kit with Horn, designed for the 2020-2024 Kawasaki Teryx KRX1000. The kit includes a turn signal module, rocker switch, wiring harnesses, LED lamps, and a horn. Proper installation requires basic tools and following the wiring diagram to ensure correct integration with the vehicle's factory tail lights and power busbar.
Tools Needed for Installation
- Phillips Screw Driver
- Drill
- 3/4 inch Hole Saw
Installation Steps
Module and Switch Mounting

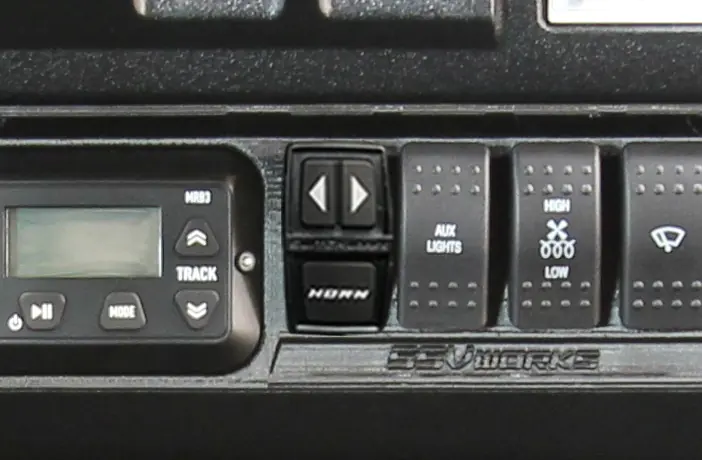

Locate a suitable mounting position for the TANGO2 Turn Signal module and secure it using screws or zip ties. Install the TANGO2 rocker switch into a vacant slot on the dash and route the cable to the module.
Wiring and LED Lamps

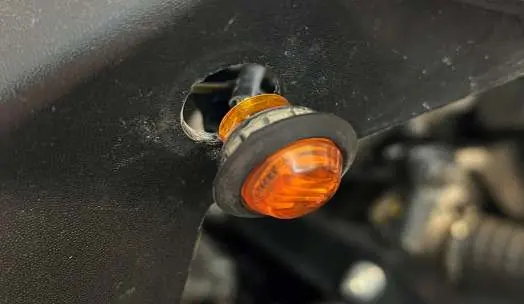

Route the front turn signal extension cables to the front of the vehicle. Drill a 3/4 inch hole for each front LED lamp, insert the lamps, and connect them to the extension harnesses. Route the rear turn signal harness to the back of the vehicle, securing it away from moving parts and exhaust pipes.
Tail Light Connections

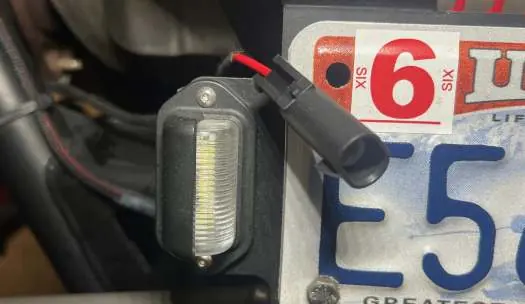

Unplug the factory tail light connectors. Use the provided B-H3122 adapters to integrate the turn signal harness into the factory wiring. Ensure all connections are secure and protected from the elements.
Horn Installation
Mount the horn using the supplied bracket. Recommendations include mounting it away from moving parts, as high as possible, and facing downward to prevent water damage. Connect the horn power wires to the harness.
Power Connection

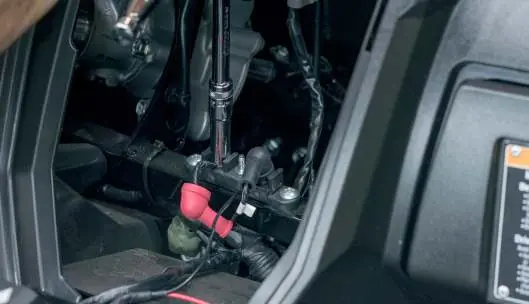

Crimp the ring terminals to the Power Input Harness. Connect the harness to the main module and route the BATT, ACC, and GND wires to the factory busbar, securing them to the corresponding studs.
Operation
Rocker Switch Functions
- Momentary Press: Activates the horn.
- Momentary Press (Turn Signal): Activates the turn signal with an 8-flash auto-cancel feature.
- Press and Hold (1 sec): Activates continuous flashing; press again to turn off.
- Press and Hold (Both 2+3): Activates hazard lights (works even with ACC off).
LED Backlight Color Change
With the accessory power (ACC) off, press and hold either the left or right button for 4 seconds until the backlight turns bright. Use the left and right buttons to cycle through colors, then press the horn button to save your selection.
Practical help
Common problems
Horn not working
Ensure the horn is mounted away from moving parts, as high as possible, and facing downward to protect from water damage. Check all wiring connections.
Backlight color needs changing
With ACC off, press and hold either the left or right button for 4 seconds until the backlight turns bright. Use the buttons to select the color and press the horn button to save.
Before use
- Ensure you have a Phillips screwdriver, drill, and 3/4 inch hole saw.
- Read all instructions before starting.
- Verify all parts from the parts list are present.
- Ensure the vehicle is off and the battery is disconnected if necessary.
Show more Show less
Images and diagrams
- Wiring diagram on page 3 shows the connection path from the module to the tail lights, horn, and power source.
Model compatibility
- Designed for 2020-2024 Kawasaki Teryx KRX1000.
