User Manual for Stirling 145L Chest Freezer STR-H145W-D
Quick guide for the Stirling 145L Chest Freezer (STR-H145W-D). Learn about installation, temperature settings, dual-mode operation, defrosting, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This Stirling 145L Chest Freezer is a dual-function appliance that can operate as a freezer or a refrigerator. Important: Before plugging in the unit for the first time, let it stand upright for at least 4 hours to allow refrigerant gases to settle. When first starting, allow the unit to cool on the coldest setting for at least 2 hours before adding food.
Safety instructions
- Flammable refrigerant: This appliance contains R600a refrigerant and cyclopentane insulation blowing gas. Keep away from heat, sparks, and open flames.
- Ventilation: Ensure adequate air circulation around the appliance to prevent overheating.
- Child safety: When discarding the freezer, remove the lid to prevent child entrapment.
- Electrical: Do not use extension cords or adaptors. Ensure the power outlet is properly earthed.
Installation
- Clearance: Allow at least 10cm of clear space at the back and sides, and 1m above the unit.
- Surface: Place on a sturdy, level floor. Use the levelling feet at the front corners if necessary.
- Environment: Install in a well-ventilated indoor area, away from direct sunlight and heat sources.
Operation and control panel
The control panel is located at the bottom right-hand corner of the cabinet.
- Fridge mode: Adjustable between 2°C and 6°C. Suitable for short-term storage of fresh food.
- Freezer mode: Adjustable between -14°C and -25°C. Suitable for freezing fresh food and long-term storage.
- Super Freezing: Temporarily sets the unit to maximum cooling for fast freezing. Automatically reverts after 52 hours.
- Lock/Unlock: The system locks automatically after 30 seconds. To unlock, press and hold the FRIDGE and FREEZER buttons simultaneously for three seconds.
Defrosting and cleaning
Frost will accumulate on the interior walls over time. When it reaches 3-4mm thickness, the unit should be defrosted.
- Unplug the freezer and remove all food and the storage basket.

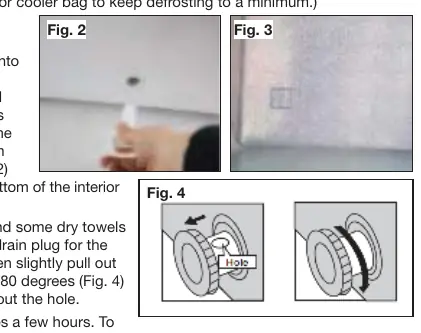

- Open the two drainage plugs: one on the bottom of the front panel and one at the bottom of the interior cabinet.
- Place a tray and towels under the outer drain plug. Pull the plug slightly and rotate it 180 degrees to allow water to drain.
- Once defrosted, clean the interior with a mild detergent and water solution (baking soda is recommended).
- Dry thoroughly before restarting.
Troubleshooting
If the freezer does not work, check the power connection, fuse, or circuit breaker. If the compressor cycles frequently, ensure the lid is sealing properly and the unit has adequate ventilation. If the temperature is too warm, check the thermostat setting and ensure the lid is not opened too frequently.
Practical help
Common problems
Freezer does not work
Check if it is plugged in, the plug is loose, or if a circuit breaker/fuse has tripped.
Compressor cycles frequently
Check for proper ventilation clearances, ensure the lid seals properly, and avoid adding large amounts of warm food at once.
Temperature is too warm
Adjust the temperature control to a colder setting, ensure the lid is closed properly, and avoid opening the lid too frequently.
Vibrations
Ensure the appliance is on a level surface. If the floor is uneven, use shims to level the unit.
Before use
- Remove all packaging materials, including foam pads and tapes.
- Check for any damage; do not install if damaged.
- Clean the interior with a damp cloth and mild detergent.
- Place on a sturdy, level surface with 10cm clearance at the back/sides and 1m above.
- Let the unit stand upright for at least 4 hours before plugging in.
- Allow the unit to cool for at least 2 hours before adding food.
Specs in practice
- Climate Class
- T (Tropical) - designed to operate in ambient temperatures between 18°C and 43°C.
Images and diagrams
- Control Panel: Located at the bottom right front of the cabinet; used for mode selection and temperature adjustment.
- Drainage System: Includes two plugs (one external, one internal) to drain water during the defrosting process.
Model compatibility
- Indoor domestic use only.
- Not suitable for commercial or industrial use.
- Do not use for storage of blood, drugs, or biological products.
