User Manual for Style Selections 31-in Vanity with Top 1678VA-31-292-934
Comprehensive installation and maintenance guide for the Style Selections 31-in Vanity with Top (Model 1678VA-31-292-934). Includes step-by-step assembly instructions, door adjustment procedures, care tips, and replacement parts...
Quick answers from the manual
Quick answer
- The Style Selections 31-in Vanity requires two adults for installation. It must be leveled using the leg levelers and secured to wall studs. Silicone caulk is required for the top installation, with a 24-hour drying time. p. 4, 5
Key actions
- Secure the vanity to the wall studs. p. 4
- Level the vanity using the leg levelers. p. 4
- Adjust doors using hinge screws. p. 6
Problems and fixes
Door alignment
Use hinge screws (a) for up/down, (b) for left/right, and (c) for in/out adjustment.
p. 6Maintenance and reset
- Clean with non-abrasive household cleaner; avoid acidic cleaners on the top. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Warranty | 1 year | Covers defects in materials and workmanship. | p. 7 |
Where to find it in the PDF
- Installation Instructions p. 4, 5, 6
- Care and Maintenance p. 7
- Replacement Parts p. 8
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the assembly and installation of the Style Selections 31-in Vanity with Top. Important: Installation requires two adults. The vanity must be secured to the wall for safety. Estimated installation time is 20-30 minutes, plus 24 hours for silicone caulk to dry.
Package Contents
- Vanity (A)
- Top (B)
- Left Door (C) - preassembled
- Right Door (D) - preassembled
- Shelf (E)
- Hardware: Touch-up pen (AA), Handles (BB), Shelf Pins (CC)
Preparation
Before beginning, ensure all parts are present. Clean the area where the vanity will be located to ensure it does not interfere with water supply and drain lines.
Tools Required (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit.
Helpful Tools (not included): Measuring tape, level.
Installation Instructions
1. Positioning and Securing
With two people, place the vanity against the wall. Use the pre-assembled levelers on the bottom of each leg to level the unit. Twist counterclockwise to raise, clockwise to lower. Once level, drill a hole through the vanity mounting area into the wall studs and secure the vanity using appropriate mounting hardware (not included). Securing to two wall studs is recommended for stability.

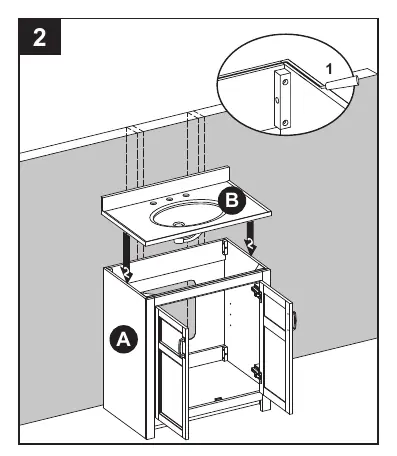

2. Installing the Top
Apply stain-free silicone caulk to the top edge of the vanity. With the help of another adult, gently lower the top onto the vanity. Wipe away excess caulk and allow 24 hours to dry.
3. Shelf Installation
Insert shelf pins at the desired height from the front of the assembly. Ensure they are level, then place the shelf on top of the pins.
Door Adjustment
If doors require adjustment, use the hinge screws:
- Up or Down: Loosen screws (a) on both hinges, adjust, and retighten.
- Left or Right: Turn screws (b) on both hinges in or out.
- In or Out: Loosen screws (c) on both hinges, adjust, and retighten.
Care and Maintenance
- Dust regularly with a soft, non-lint cloth.
- Clean with a gentle, non-abrasive household cleaner.
- Dry wood immediately after cleaning.
- Important: Do not use products containing acetone, lemon, vinegar, or other acids on the top surface.
- Use the included touch-up pen for scratches (stroke in direction of scratch) or worn areas (stroke in direction of wood grain).
Practical help
Common problems
Door is misaligned
Use the hinge adjustment screws (a, b, c) to adjust the door position up/down, left/right, or in/out.
Vanity is not level
Twist the pre-assembled levelers on the bottom of each leg. Counterclockwise raises the vanity; clockwise lowers it.
Top surface damage
Avoid cleaning products with acetone, lemon, vinegar, or other acids.
Before use
- Verify all parts (Vanity, Top, Doors, Shelf) are present.
- Ensure you have two adults for assembly.
- Clean the installation area.
- Gather required tools: Phillips screwdriver, utility knife, silicone caulk, power drill.
- Check for wall studs for secure mounting.
Specs in practice
- Installation Time
- 20-30 minutes, plus 24 hours for silicone caulk to dry.
Images and diagrams

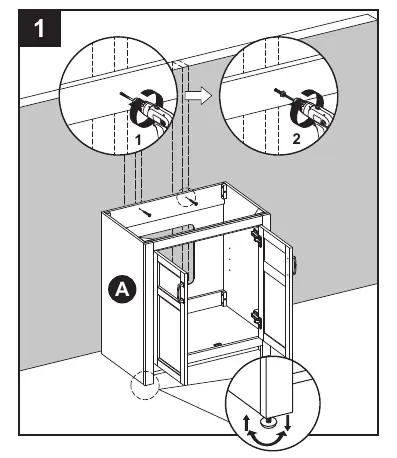

- Diagram 1: Shows leveling the vanity and securing it to wall studs.

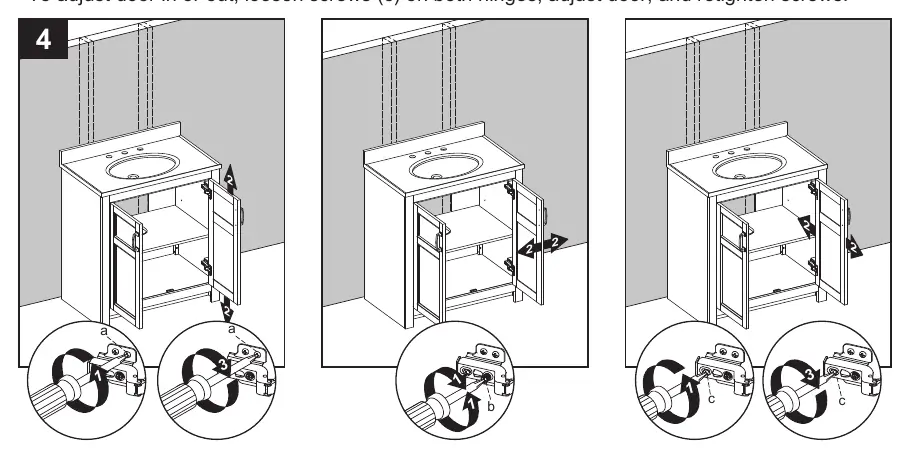

- Diagram 4: Illustrates hinge adjustment points (a, b, c) for door alignment.

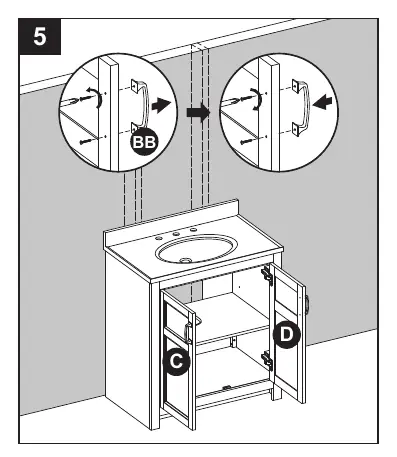

- Diagram 5: Shows how to swap handle finishes.
Model compatibility
- Faucet and drain kit are not included and should be installed per manufacturer instructions.
