User Manual for Style Selections 1730MFP-48-23-500 Electric Fireplace
Comprehensive user manual for the Style Selections 1730MFP-48-23-500 electric fireplace. Includes assembly instructions, operating procedures, safety warnings, troubleshooting, and maintenance tips.
Quick answers from the manual
Quick answer
- The Style Selections 1730MFP-48-23-500 is an electric fireplace console. It requires assembly using a Phillips screwdriver and should be secured to a wall stud using the included tip restraint hardware. It operates on a 120V circuit and features adjustable heat, flame brightness, and a sleep timer. p. 1, 8, 17
Key actions
- Assemble the unit p. 8, 15
- Operate the heater p. 17, 18
- Troubleshoot errors p. 20
First start
- Ensure the unit is on a stable surface and install tip restraint hardware. p. 5, 15
- Plug into a 120V grounded outlet. p. 7
- Insert 2 AAA batteries into the remote. p. 17
Problems and fixes
Error E1
Overheat sensor engaged. Unplug for 15-20 minutes.
p. 20
Error E2
Thermostat sensor issue. Unplug for 15-20 minutes.
p. 20
Error E3
Heater override engaged. See page 18.
p. 20Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E1 | Overheat sensor engaged. | Unplug unit, wait 15-20 minutes, then reset. | p. 20 |
| E2 | Thermostat sensor issue. | Unplug unit, wait 15-20 minutes, then reset. | p. 20 |
| E3 | Heater override engaged. | See Heater Override section on page 18. | p. 20 |
Maintenance and reset
- Unplug the unit for 15-20 minutes to reset the overheat or thermostat sensors. p. 20
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Standard household power. | p. 7 |
| Max Load (Top) | 58 lbs (26.3 kg) | Maximum weight for TV. | p. 16 |
Where to find it in the PDF
- Assembly Instructions p. 8, 15
- Operating Instructions p. 17, 18
- Troubleshooting p. 20
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the assembly, operation, and maintenance of the Style Selections 1730MFP-48-23-500 electric fireplace. Before beginning, ensure all parts are present and you have a Phillips screwdriver. The estimated assembly time is 50 minutes. Always install the included tip restraint hardware to prevent accidents.
Assembly Instructions
The assembly process involves 14 steps:

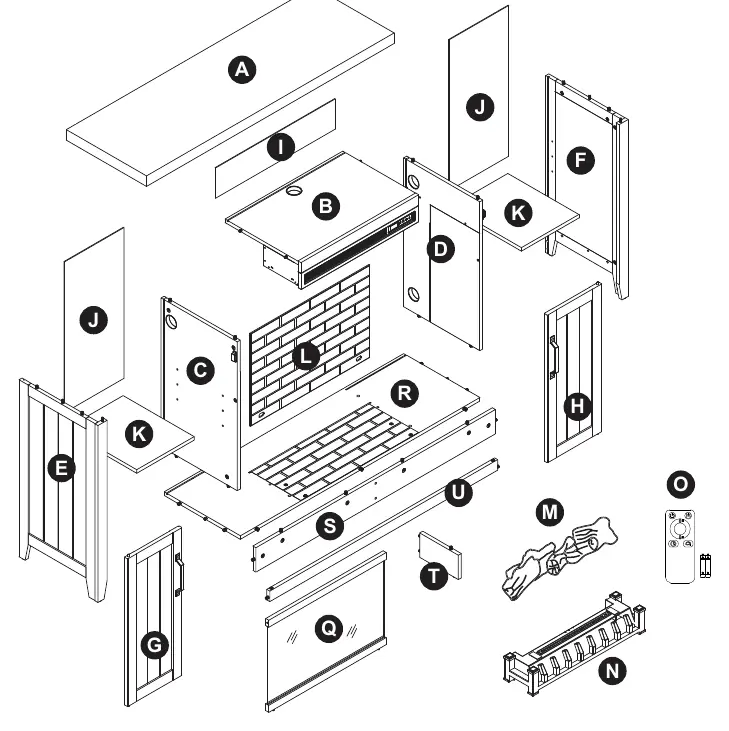

- Base Assembly: Attach the base panel support (T) to the base panel back rail (S), then connect to the base panel (R) and front rail (U).
- Cabinet Structure: Attach outer walls (E, F) and middle walls (C, D) to the base panel using locking nuts.
- Firebox Setup: Insert the reversible brick wall (L), center shelf (B), and back panels (I, J).
- Top and Shelves: Secure the top (A) and insert shelf pins (AA) to place shelves (K).
- Doors and Grate: Install doors (G, H) and the fireplace grate (N) with the USB cable connection.
- Final Touches: Place the fire log (M), attach the glass front (Q), and secure all back panels.

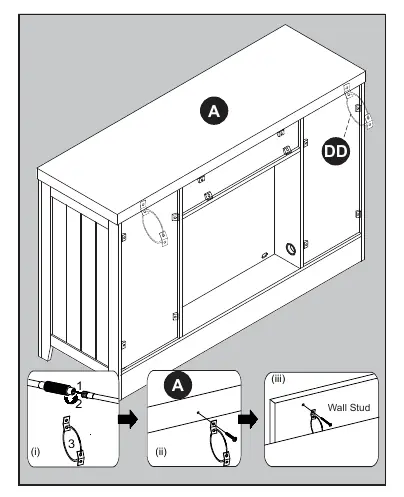

- Safety: Install the tip restraint hardware (DD) to a wall stud.
Operating Instructions
The fireplace can be controlled via the control panel or the included remote control.
- Power: Use the Power Icon to turn the unit on or off. The unit has a 40-second cool-down cycle.
- Heater: Adjustable via the control panel. Settings include HI (High) and oF (OFF). The thermostat range is 65°F to 90°F (18°C to 32°C).
- Flame: Adjust brightness and speed using the respective icons.
- Timer: Use the remote control to set a sleep timer from 30 minutes to 9 hours.
- Heater Override: A safety feature to disengage the heater, preventing accidental activation.
Care and Maintenance
- Ensure the unit is OFF, unplugged, and cool before cleaning.
- Clean metal trim with a water-dampened soft cloth; do not use brass polish.
- Periodically vacuum air intake/output vents.
- Replace remote batteries with 2x AAA batteries when range is reduced.
Troubleshooting
If you encounter issues, check the following:
- Error E1: Overheat sensor engaged. Unplug for 15-20 minutes to reset.
- Error E2: Thermostat sensor issue. Unplug for 15-20 minutes to reset.
- Error E3: Heater override is active. See the Heater Override section.
- No Power: Ensure the unit is plugged into a standard 120V grounded outlet.
- Remote Issues: Replace batteries or move closer to the unit (within 20 feet).
Practical help
Common problems
Error E1 displayed
Overheat sensor engaged. Unplug unit for 15-20 minutes to allow it to reset.
Error E2 displayed
Thermostat sensor issue. Unplug unit for 15-20 minutes to allow it to reset.
Error E3 displayed
Heater override function is engaged. Refer to the Heater Override section on page 18.
Remote control not working
Replace with 2 new AAA batteries.
Before use
- Verify all parts are present using the package contents list.
- Ensure you have a Phillips screwdriver for assembly.
- Confirm the outlet is a 120V, 60Hz grounded circuit.
- Install the tip restraint hardware to a wall stud.
- Insert 2 AAA batteries into the remote control.
Specs in practice
- Electrical Requirement
- 120V, 60Hz, 15-Amp circuit.
- Max TV Weight
- 58 lbs (26.3 kg).
- Remote Range
- Up to 20 feet and 45 degrees from the front.
Images and diagrams
- Assembly steps 1-14 show the sequence of connecting panels and hardware.

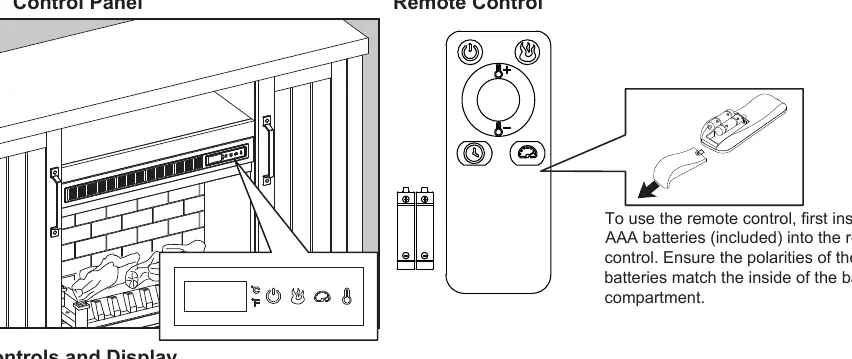

- Control panel and remote layout diagrams identify button functions.
- Grounding instructions show proper adapter usage for 2-slot receptacles.
Model compatibility
- Intended for flat panel TVs up to 50 inches.
- Do not use in bathrooms, laundry areas, or near water.
- Do not use with extension cords or power strips.
