User Manual for Style Selections 1730FM-23-273 Electric Fireplace Media Mantel
Comprehensive user guide for the Style Selections 1730FM-23-273 Electric Fireplace Media Mantel. Includes assembly instructions, operating procedures, safety warnings, and troubleshooting steps.
Quick answers from the manual
Quick answer
- This is an electric fireplace media mantel. Assembly requires a Phillips screwdriver and about 50 minutes. It features adjustable flame brightness, flame speed, heater settings, and a sleep timer. p. 1, 8, 17
Key actions
- Assemble the mantel p. 8, 15
- Operate the fireplace p. 17, 18
First start
- Plug into a 120V grounded outlet. p. 7
Problems and fixes
Error E1
Overheat sensor engaged. Unplug for 15-20 mins.
p. 20Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E1 | Overheat sensor engaged | Unplug for 15-20 mins | p. 20 |
| E2 | Thermostat sensor issue | Unplug for 15-20 mins | p. 20 |
| E3 | Heater override active | See Heater Override section | p. 20 |
Maintenance and reset
- Replace remote battery (CR2025) p. 19
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max TV Weight | 58 lbs (26.3 kg) | Maximum load for top surface | p. 16 |
Where to find it in the PDF
- Assembly Instructions p. 8, 15
- Operating Instructions p. 17, 18
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This electric fireplace media mantel is designed for use with flat-panel TVs up to 50 inches. Assembly takes approximately 50 minutes and requires a Phillips screwdriver. The unit features adjustable flame brightness, flame speed, a heater with thermostat control, and a sleep timer. Always ensure the unit is plugged into a dedicated 120V grounded outlet.
Safety Information
Read all instructions before use. This appliance is hot when in use; keep combustible materials at least 3 feet away. Do not use in bathrooms or laundry areas. Always unplug before cleaning or servicing. Ensure the unit is stable and use the included tip restraint hardware to prevent tipping.
Assembly Instructions
The assembly process consists of 13 steps:
- Base Assembly: Attach the base panel support (T) to the bottom panel rail (S), then secure to the base panel (R).
- Cabinet Structure: Attach outer walls (E, F) and middle walls (C, D) to the base panel.
- Firebox Installation: Insert the reversible fireplace brick wall (L) into the grooves.
- Shelving and Backing: Install the center shelf (B) and back panels (I, J).
- Top Assembly: Secure the top (A) to the walls.
- Doors and Insert: Install doors (G, H) and the fireplace grate (N) with the USB cable connection.
- Finishing: Place the fire log (M) and fireplace glass front (Q).
- Safety: Install the tip restraint hardware to a wall stud.
Operating Instructions
The fireplace can be controlled via the control panel or the included remote. Functions include:
- Power: Turns the unit on/off. Features a 40-second cool-down cycle.
- Flame Brightness: Adjustable settings 1-5 and OFF.
- Flame Speed: Adjustable settings 1-5.
- Heater: Thermostat range 65°F (18°C) to 90°F (43°C). Can be set to HI for continuous operation or OF to use flames without heat.
- Sleep Timer: Countdown from 30 minutes to 9 hours.
- Heater Override: A safety feature to disable the heater, preventing accidental activation.
Care and Maintenance
Clean metal trim with a water-dampened soft cloth; do not use brass polish. Vacuum air intake/output vents periodically. Replace the remote control battery with a CR2025 lithium battery when range is reduced.
Troubleshooting
If the unit displays error codes E1, E2, or E3, unplug the unit for 15-20 minutes to allow the sensor to reset. If the problem persists, contact customer service at 877-888-8225.
Practical help
Common problems
Error E1 on control panel
Overheat sensor engaged. Unplug unit for 15-20 minutes, then restart.
Error E2 on control panel
Thermostat sensor issue. Unplug unit for 15-20 minutes, then restart.
Error E3 on control panel
Heater override function is engaged. See the Heater Override section in the manual.
Remote control not working
Replace the CR2025 battery.
Before use

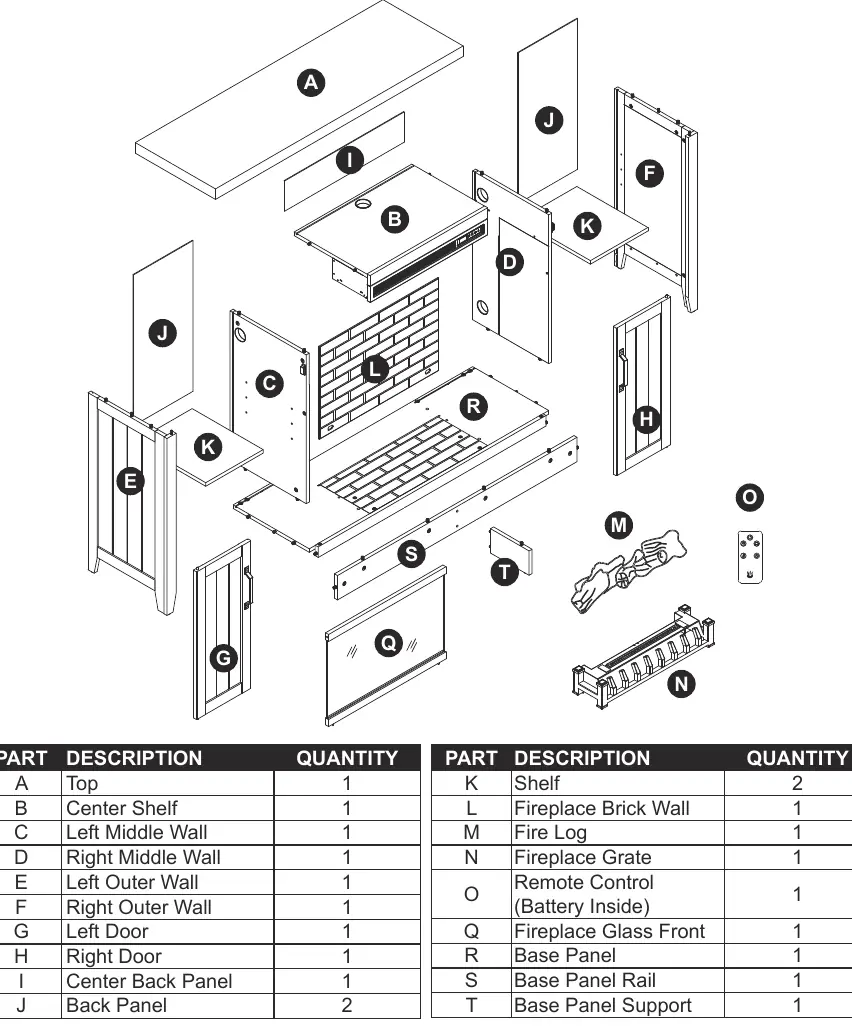

- Verify all parts are present using the package contents list.
- Ensure you have a Phillips screwdriver.
- Confirm a 120V, 60Hz grounded outlet is available.
- Do not use extension cords or power strips.
- Install the tip restraint hardware before use.
Specs in practice
- Max TV Weight
- 58 lbs (26.3 kg)
- Thermostat Range
- 65°F (18°C) to 90°F (43°C)
Images and diagrams
- Assembly steps 1-13 illustrate the step-by-step construction of the mantel.
- Page 17 shows the control panel and remote button layout.
Model compatibility
- Fits most flat panel TVs up to 50 inches.
- Use only on 120V, 60Hz circuits.
