Style Selections Drapery Rod 1474X Installation Manual
Installation guide for Style Selections drapery rods. Includes step-by-step mounting instructions, hardware requirements, troubleshooting, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Style Selections drapery rod. The estimated assembly time is 30 minutes. Ensure you have all parts and the necessary tools before beginning. If you encounter issues with leveling or loose hooks, refer to the troubleshooting section.
Preparation and tools
Before starting, compare all parts with the package contents list. Do not attempt to assemble if any parts are missing or damaged.
Tools required (not included):
- Drill
- Drill bit (3/16 inch)
- Level
- Screwdriver
Installation overview

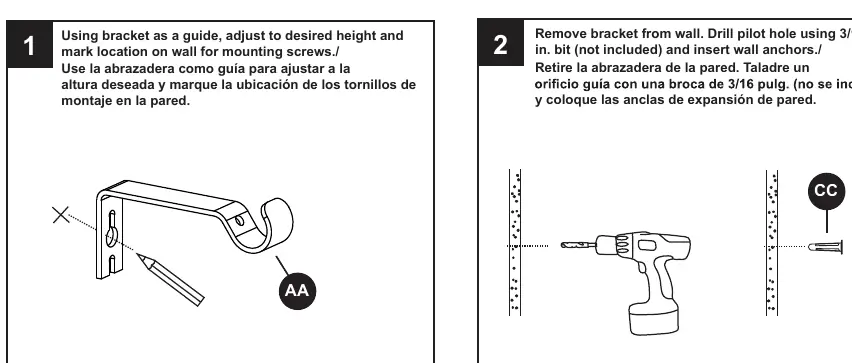

- Marking: Use the bracket as a guide to adjust to the desired height and mark the location on the wall for mounting screws.
- Drilling: Remove the bracket from the wall. Drill a pilot hole using a 3/16-inch bit (not included) and insert the wall anchors. Note: Anchors are not needed for all installation types.
- Mounting: Attach the bracket to the wall using the provided screws. Repeat steps 1 to 3 for additional brackets. Use a level if necessary.
- Assembly: Fit the drape(s) onto the rod.
- Finalizing: Fit the rod with drapes onto the mounting brackets and position the finials as desired. Tighten the screws on each bracket to secure the rod.
Troubleshooting
- Drapery rod not level: Ensure you use a level during the installation process.
- Drapery rod hook is loose: Ensure hooks are anchored correctly. Attach hooks to wall studs if possible; otherwise, use the supplied anchors and screws.
Care and maintenance
Clean the product with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes, as they may damage the finish.
Practical help
Common problems
Drapery rod is not level
Use a level during the installation process to ensure brackets are aligned.
Drapery rod hook is loose
Attach hooks to wall studs if possible. If not, ensure the supplied anchors and screws are installed correctly.
Before use
- Verify all parts are present against the package contents list
- Ensure you have a drill and a 3/16-inch drill bit
- Have a level available for accurate installation
- Determine if you are mounting into wall studs or drywall
Specs in practice
- Estimated Assembly Time
- Approximately 30 minutes
- Pilot Hole Size
- 3/16 inch drill bit required for anchors
Images and diagrams
- Bracket mounting and marking procedure
- Drilling pilot holes and inserting anchors
- Attaching brackets to the wall
- Fitting drapes and securing the rod to brackets
Model compatibility
- Anchors are not required for all installation types (e.g., when mounting directly into studs).
