Installation Manual for Style Selections Drapery Rod
Quick installation guide for Style Selections drapery rods. Includes step-by-step assembly instructions, tools required, troubleshooting tips, and care maintenance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for Style Selections drapery rods. Before beginning, ensure all parts are present by comparing them with the package contents list. The estimated assembly time is 30 minutes.
Tools required (not included):
- Drill
- Screwdriver
- Level
Installation Overview
- Marking: Use the bracket as a guide to adjust to the desired height and mark the location on the wall for mounting screws.
- Drilling: Remove the bracket from the wall. Drill a pilot hole using a 3/16-inch bit (not included) and insert the wall anchors. Note: Anchors are not needed for all installation types.
- Mounting: Attach the bracket to the wall using the provided screws. Repeat steps 1 to 3 for any additional brackets. Use a level if necessary.
- Drape Placement: Fit the drapes (not included) onto the rod.
- Final Assembly: Fit the rod with drapes onto the mounting brackets and position the finials as desired. Tighten the screws on each bracket to secure the rod.
Troubleshooting
- Drapery rod not level: Ensure you use a level during installation.
- Drapery rod hook is loose: Attach drapery hooks to wall studs if possible. If you cannot attach to a stud, use the supplied anchors and screws.
Care and Maintenance
Clean the product with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes, as they may damage the finish.
Practical help
Common problems
Drapery rod is not level
Ensure you use a level (not included) during the installation process to verify alignment.
Drapery rod hook is loose
Attach hooks directly to wall studs if possible. If not, ensure the supplied anchors and screws are installed correctly.
Before use
- Verify all parts are present against the package contents list.
- Ensure you have a drill, screwdriver, and level ready.
- Determine if your wall type requires the included anchors.
- Check the rod length requirements for your window.
Specs in practice
- Estimated Assembly Time
- Approximately 30 minutes.
- Drill Bit Size
- 3/16 inch bit required for pilot holes.
Images and diagrams

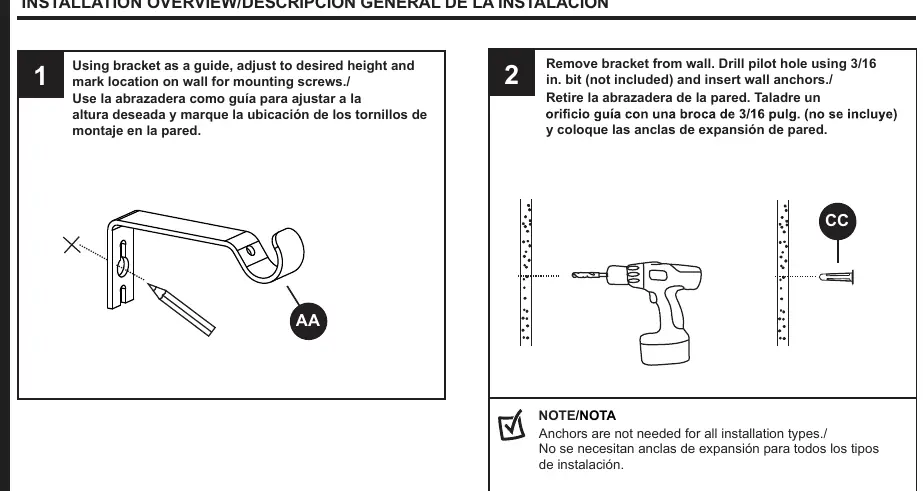

- Step 1 & 2: Shows how to use the bracket as a template for marking holes and drilling pilot holes.

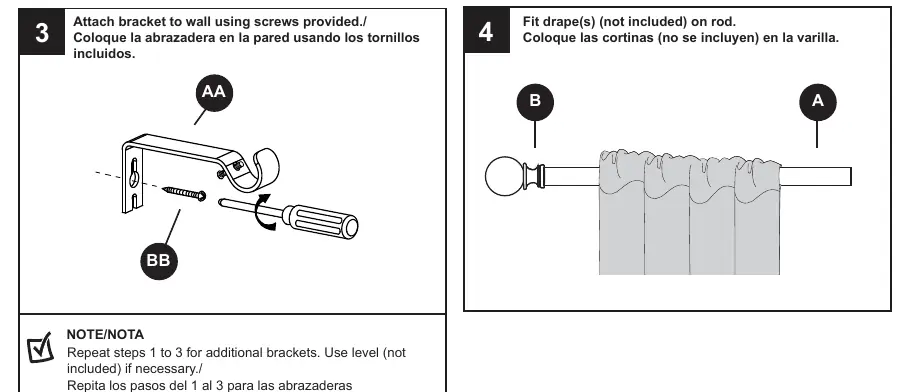

- Step 3: Illustrates attaching the bracket to the wall using screws.

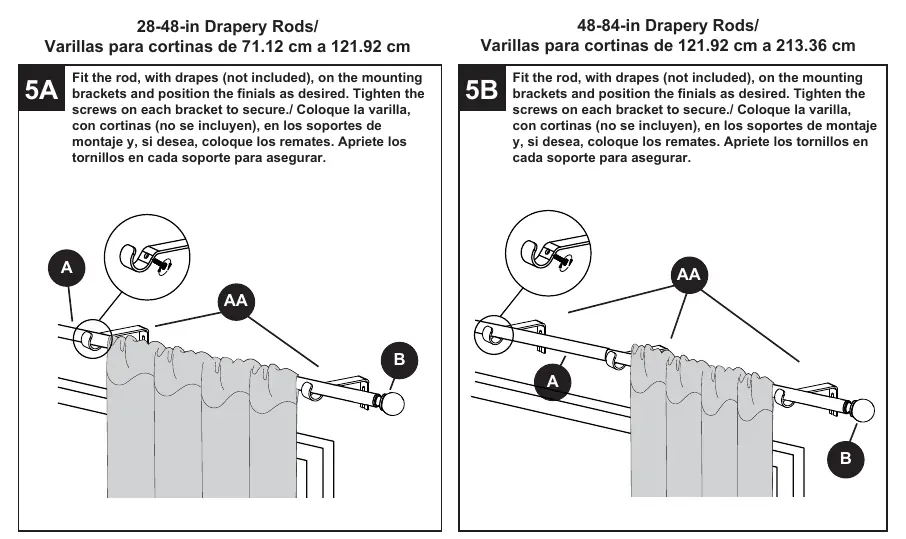

- Step 4 & 5: Demonstrates placing drapes on the rod and securing the rod onto the brackets.
Model compatibility
- Anchors are not required for all installation types (e.g., when mounting directly into studs).
