Style Selections Drapery Rod Installation Guide

Quick Guide

This guide provides instructions for assembling and installing Style Selections drapery rods. The estimated assembly time is 30 minutes. Before beginning, ensure all parts are present and compare them with the package contents list. Do not attempt to assemble if any parts are missing or damaged.

Package Contents

The package includes the following items:

• Drapery rods (x2 or x3 depending on model)
• Finials (x2)
• Mounting brackets
• Screws
• Wall anchors

Tools Required (Not Included):

• Drill
• 3/16 in. drill bit
• Screwdriver
• Level

Installation Steps

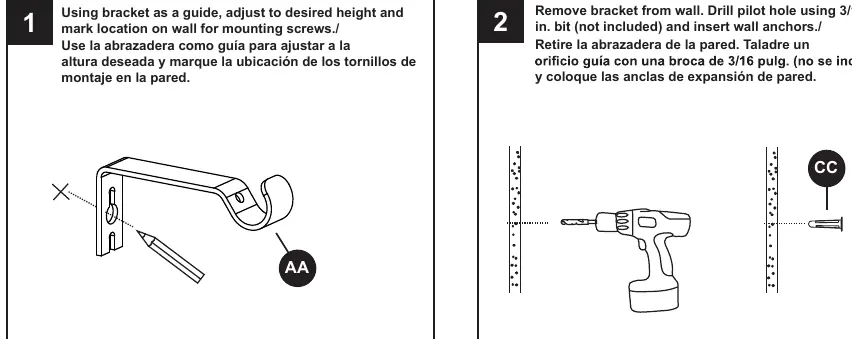

1. Marking: Use the bracket as a guide to adjust to the desired height and mark the location on the wall for mounting screws.
2. Drilling: Remove the bracket from the wall. Drill a pilot hole using a 3/16 in. bit and insert the wall anchors. Note: Anchors are not needed for all installation types.

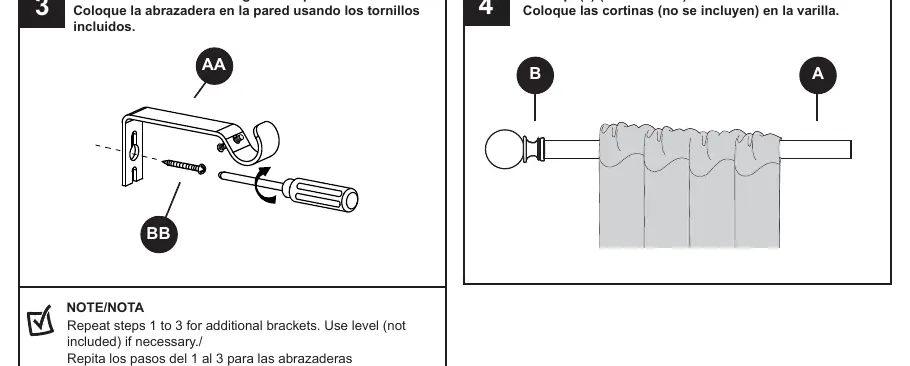

3. Mounting: Attach the bracket to the wall using the provided screws. Repeat steps 1 to 3 for additional brackets. Use a level if necessary.
4. Assembly: Fit the drape(s) onto the rod.

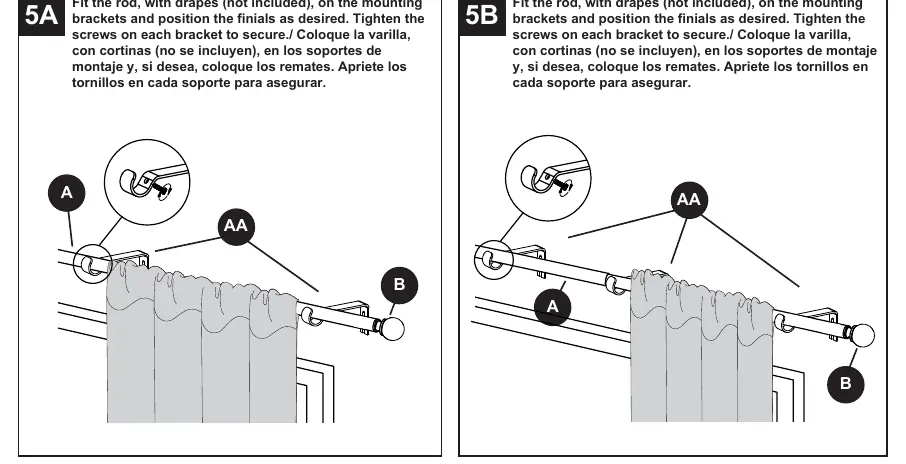

5. Finalizing: Fit the rod with drapes onto the mounting brackets and position the finials as desired. Tighten the screws on each bracket to secure the rod.

Troubleshooting

If you encounter issues during or after installation, refer to the following solutions:

• Drapery rod not level: Ensure you use a level during the installation process.
• Drapery rod hook is loose: Attach drapery hooks to wall studs if possible. If you cannot attach to a stud, use the supplied anchors and screws.

Care and Maintenance

To keep your drapery rod in good condition, clean it with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes, as they may damage the finish.
