Quick Guide for Drapery Rod Installation

This guide provides instructions for the assembly and installation of Style Selections drapery rods. Estimated assembly time is approximately 30 minutes. Before beginning, ensure all parts listed in the package contents are present.

Preparation and Tools

Before starting, compare the parts with the package contents and hardware contents lists. Do not attempt to assemble if any parts are missing or damaged. You will need a drill, a screwdriver, and a level (not included).

Installation Overview

Step 1: Mark bracket location
Step 1: Mark bracket location
Step 2: Drill pilot hole and insert anchors
Step 2: Drill pilot hole and insert anchors
Step 3: Attach bracket to wall
Step 3: Attach bracket to wall
Step 5: Secure rod to brackets
Step 5: Secure rod to brackets
  1. Marking: Use the bracket as a guide to adjust to the desired height and mark the location on the wall for mounting screws.

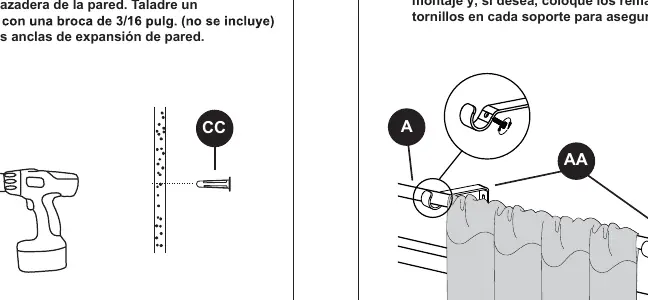

  2. Drilling: Remove the bracket from the wall. Drill a pilot hole using a 3/16-inch bit (not included) and insert the wall anchors. Note that anchors are not needed for all installation types.
  3. Mounting: Attach the bracket to the wall using the provided screws. Repeat steps 1 to 3 for any additional brackets.
  4. Assembly: Fit the drapes (not included) onto the rod.

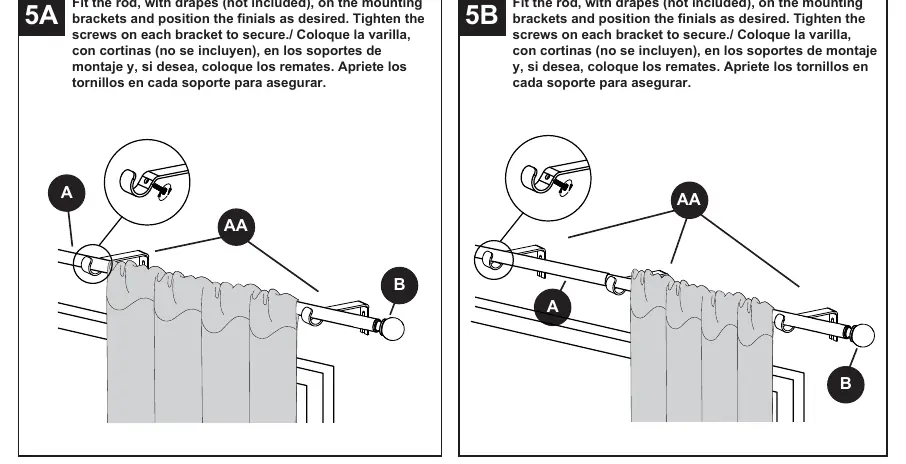

  5. Securing: Place the rod with drapes onto the mounting brackets and position the finials as desired. Tighten the screws on each bracket to secure the rod in place.

Troubleshooting

  • Drapery rod not level: Ensure you use a level during the installation process.
  • Drapery rod hook is loose: Attach drapery hooks to wall studs if possible. If you cannot attach to a stud, use the supplied anchors and screws.

Care and Maintenance

Clean the drapery rod with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes, as these may damage the finish.

Practical help

Common problems

Drapery rod is not level

Ensure you use a level (not included) during the installation process.

Drapery rod hook is loose

Attach hooks to wall studs if possible. If not, use the supplied anchors and screws.

Before use

  • Verify all parts are present against the package contents list
  • Check hardware contents
  • Gather required tools: drill, screwdriver, and level
  • Determine if wall anchors are necessary for your wall type

Images and diagrams

  • Step 1: Using the bracket as a guide to mark screw locations
  • Step 2: Drilling pilot holes and inserting wall anchors
  • Step 3: Attaching the bracket to the wall
  • Step 4: Fitting the rod and drapes onto the brackets

Model compatibility

  • Anchors are not needed for all installation types
  • Use wall studs for mounting if possible
