Installation Manual for Style Selections Drapery Rod
Learn how to install your Style Selections drapery rod with this step-by-step guide. Includes instructions for mounting brackets, rod assembly, and troubleshooting tips.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This installation manual provides instructions for assembling and mounting Style Selections drapery rods. The estimated assembly time is 30 minutes. Ensure all parts are present before beginning installation. If you encounter issues, ensure you are using a level and that hooks are properly anchored to wall studs or using the provided wall anchors.
Package Contents
The package includes the following components:
- Drapery rods (2 pieces)
- Finials (2 pieces)
- Mounting brackets (2 or 3 depending on rod length)
- Screws
- Wall anchors
Tools Required
The following tools are required for installation but are not included:
- Drill
- 3/16 inch drill bit
- Level
- Screwdriver
Installation
Follow these steps to install your drapery rod:
- Marking: Use the bracket as a guide to adjust to the desired height and mark the location on the wall for mounting screws.
- Drilling: Remove the bracket from the wall. Drill a pilot hole using a 3/16 inch bit and insert the wall anchors. Note that anchors are not needed for all installation types.
- Mounting: Attach the bracket to the wall using the provided screws. Repeat steps 1 to 3 for any additional brackets.
- Assembly: Fit the drape(s) onto the rod.

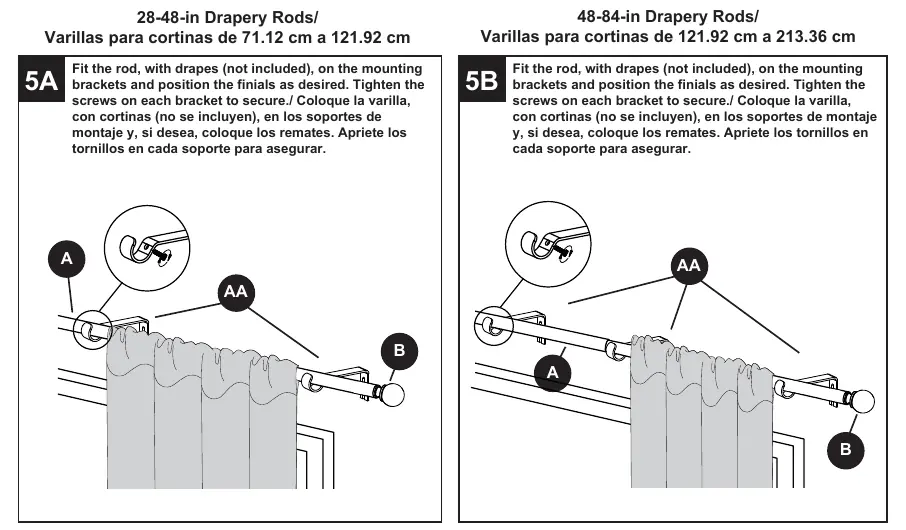

- Finalizing: Place the rod with drapes onto the mounting brackets and position the finials as desired. Tighten the screws on each bracket to secure the rod.
Troubleshooting
- Drapery rod not level: Ensure you use a level during installation.
- Drapery rod hook is loose: Ensure hooks are anchored correctly. Attach to wall studs if possible; otherwise, use the supplied anchors and screws.
Care and Maintenance
- Clean the rod with a soft cloth.
- Do not use abrasive cleaning agents, solvents, or polishes, as they may damage the finish.
Practical help
Common problems
Drapery rod not level
Ensure you use a level during the installation process.
Drapery rod hook is loose
Ensure hooks are anchored correctly. Attach to wall studs if possible; otherwise, use the supplied anchors and screws.
Before use
- Verify all parts are present against the package contents list
- Ensure you have a drill and a 3/16 inch drill bit
- Have a level available for accurate mounting
- Check if you are mounting into wall studs or drywall (use anchors for drywall)
Specs in practice
- Estimated Assembly Time
- 30 minutes
- Drill Bit Size
- 3/16 inch
Images and diagrams

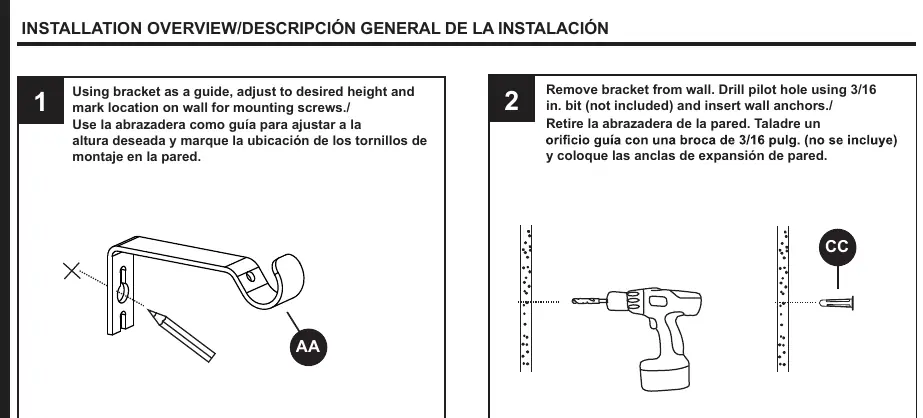

- Step 1: Using the bracket as a guide to mark screw locations
- Step 2: Drilling pilot holes and inserting anchors

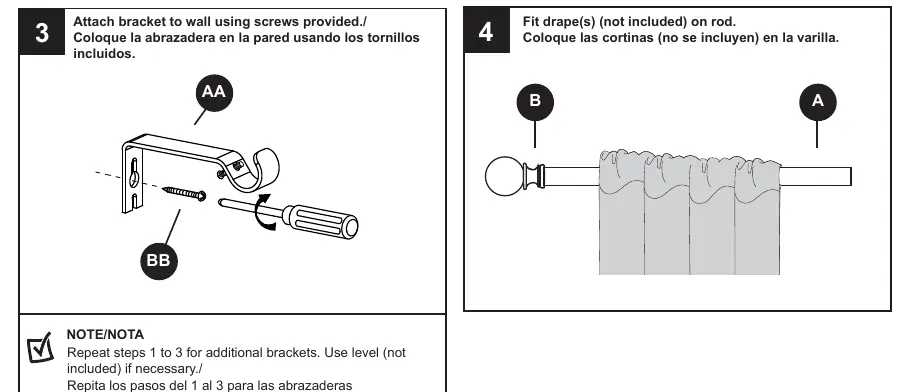

- Step 3: Attaching the bracket to the wall
- Step 4: Fitting the rod and drapes onto the brackets
Model compatibility
- Anchors are not needed for all installation types (e.g., when mounting directly into wood studs).
